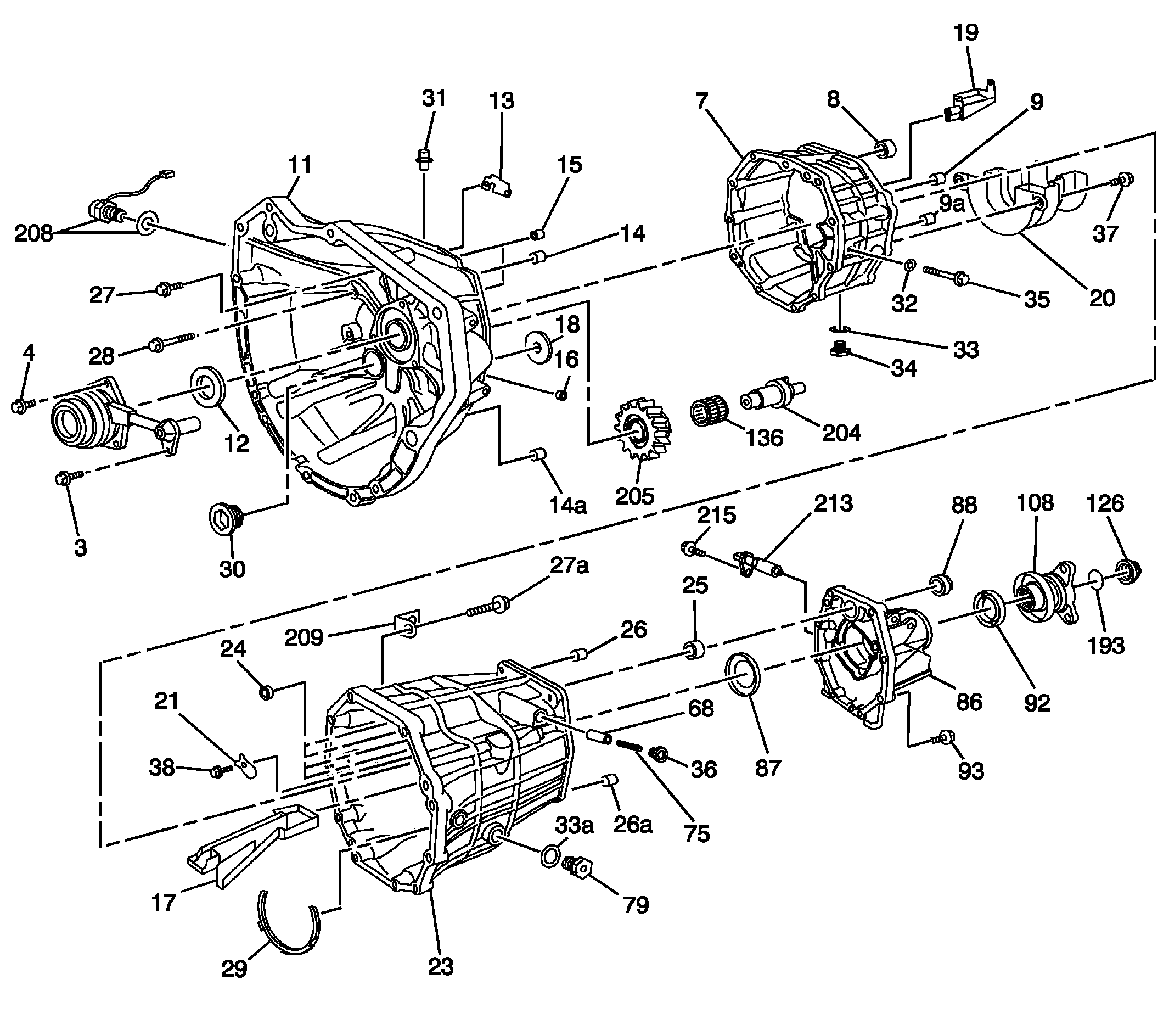

| 3 |
Clutch Actuator Bolt/Screw - M6 x 1.0 |
| 4 |
Clutch Actuator Bolt/Screw - M8 x 1.0 |
| 7 |
Transmission Intermediate Case |
| 8 |
Shift Shaft Bearing Assembly |
| 9 |
Transmission Rear Case Locating Pin |
| 9a |
Transmission Rear Case Locating Pin |
| 11 |
Transmission Front Case |
| 12 |
Input Shaft Seal |
| 13 |
Input Shaft Bearing Oil Shield |
| 14 |
Select Control Lever Bracket Pin |
| 14a |
Transmission Case Intermediate Locating Pin |
| 15 |
Transmission Case Locating Pin |
| 16 |
Transmission Case Hole Plug |
| 17 |
Transmission Rear Case Oil Trough |
| 18 |
Input Shaft Bearing Oil Slinger - Front |
| 19 |
Oil Trough |
| 20 |
Transmission Intermediate Case Oil Trough |
| 21 |
Counter Gear Bearing Retainer |
| 23 |
Transmission Rear Case |
| 24 |
Shift Shaft Bushing |
| 25 |
Shift Shaft Bearing Assembly |
| 26 |
Transmission Extension Locating Pin |
| 26a |
Transmission Extension Locating Pin |
| 27 |
Transmission Intermediate Case Bolt/Screw - M10 x 1.25 |
| 27a |
Backup Switch Bracket Bolt/Screw |
| 28 |
Transmission Intermediate Case Bolt/Screw - M10 x 1.25 |
| 29 |
Transmission Rear Case Oil Trough Gasket |
| 30 |
Clutch Housing Hole Plug |
| 31 |
Vent Assembly |
| 32 |
Reverse Idler Gear Shaft Bolt Gasket |
| 33 |
Oil Drain Plug Gasket |
| 33a |
Oil Fill Plug Gasket |
| 34 |
Oil Drain Plug |
| 35 |
Reverse Idler Gear Shaft Retainer Bolt/Screw |
| 36 |
Shift Shaft Detent Plug |
| 37 |
Transmission Intermediate Case Oil Trough Bolt/Screw |
| 38 |
Counter Gear Bearing Retainer Bolt/Screw |
| 68 |
Shift Shaft Detent Pin |
| 75 |
Shift Shaft Detent Spring |
| 79 |
Oil Fill Plug |
| 86 |
Transmission Extension |
| 87 |
Main Shaft Bearing Rear Oil Slinger |
| 88 |
Shift Control Shaft Seal |
| 92 |
Rear Output Shaft Seal Assembly |
| 93 |
Transmission Extension Bolt/Screw |
| 108 |
Propshaft Transmission Flange Assembly |
| 126 |
Propshaft Transmission Flange Nut |
| 136 |
Reverse Idler Gear Bearing Assembly |
| 193 |
Propshaft Transmission Flange Fluid Seal |
| 204 |
Reverse Idler Gear Shaft |
| 205 |
Reverse Idler Gear |
| 208 |
Backup Lamp Switch Assembly |
| 209 |
Backup Lamp Switch Retainer |
| 213 |
Output Sensor Assembly |
| 215 |
Vehicle Speed Sensor Bolt/Screw |
