Shift Rail Components

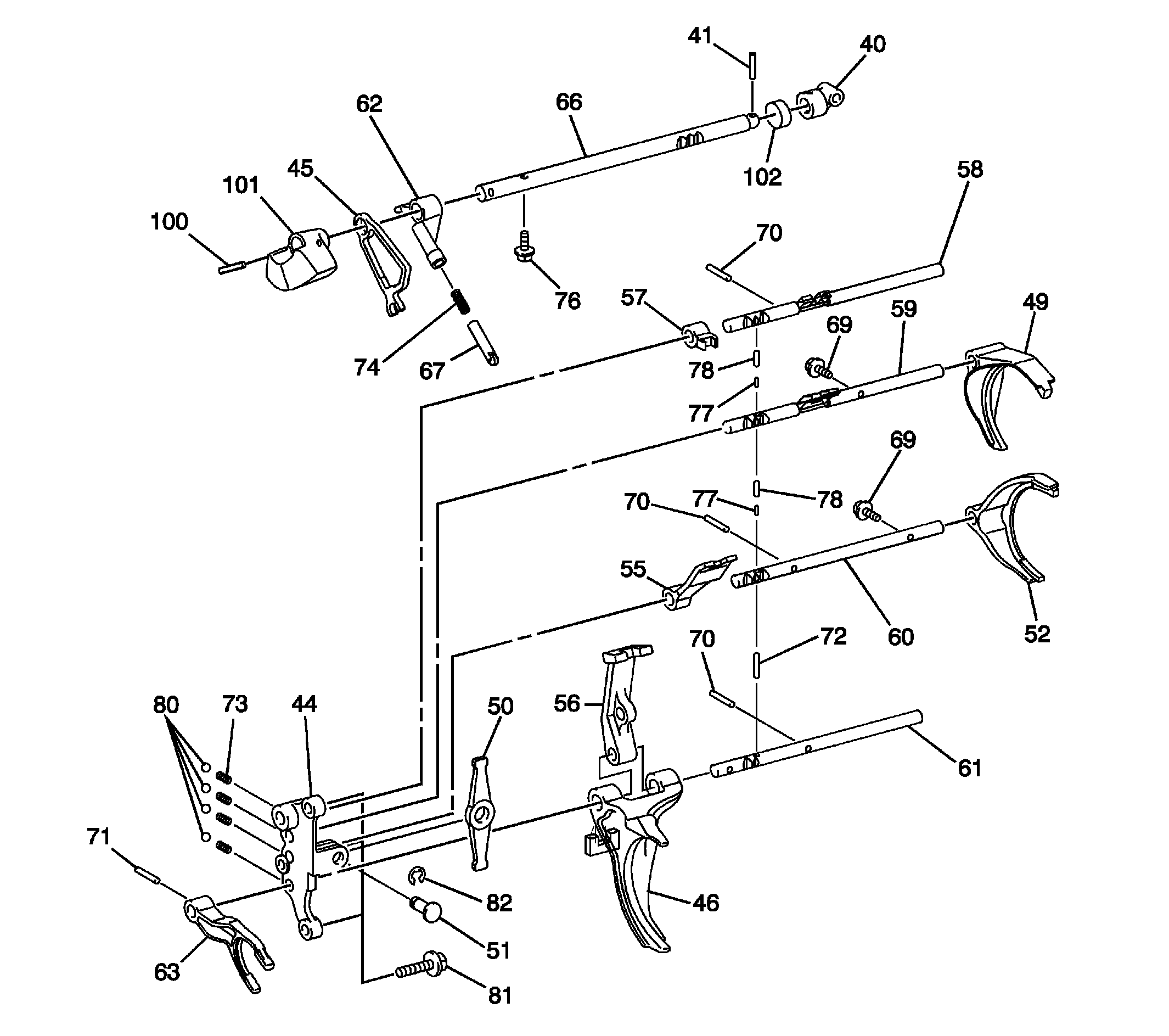

Fig 1: Identifying Shift Rail Components
GM2006646Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
40 Shift Lever Rod Universal Joint Assembly
41 Shift Lever Pin
44 Shift Control Lever Bracket
45 Shift Shaft Detent Cam
46 1st/2nd Shift Fork Assembly w/Bushings
49 3rd/4th Shift Fork Assembly w/Inserts
50 Control Selector Arm
51 Control Selector Arm Pin
52 5th/6th Shift Fork Assembly w/Inserts
55 Shift Lever Assembly
56 Internal Shift Control Lever
57 Selector Control Lever Assembly
58 1st/2nd Shift Shaft
59 3rd/4th Shift Shaft
60 5th/6th Shift Shaft
61 Reverse Shift Shaft
62 Shift Shaft Detent Lever
63 Reverse Shift Fork Assembly w/Inserts
66 Shift Control Shaft
67 Shift Shaft Detent
69 3rd/4th Shift Fork Bolt/Screw
69 5th/6th Shift Fork Bolt/Screw
70 1st/2nd Shift Fork Pin
71 Reverse Shift Fork Pin
72 Shift Shaft Detent Roller
73 Shaft Detent Ball Spring
74 Shift Shaft Detent Spring
76 Shift Shaft Detent Lever Bolt/Screw
77 Shift Shaft Interlocking Pin
78 Shift Shaft Interlocking Pin
80 Shift Detent Ball
81 Shift Control Lever Bracket Bolt/Screw
82 Selector Control Lever Pin Retainer
100 Slotted Spring Pin
101 Dynamic Damper Weight
102 Damper
