Headlamp Alignment Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

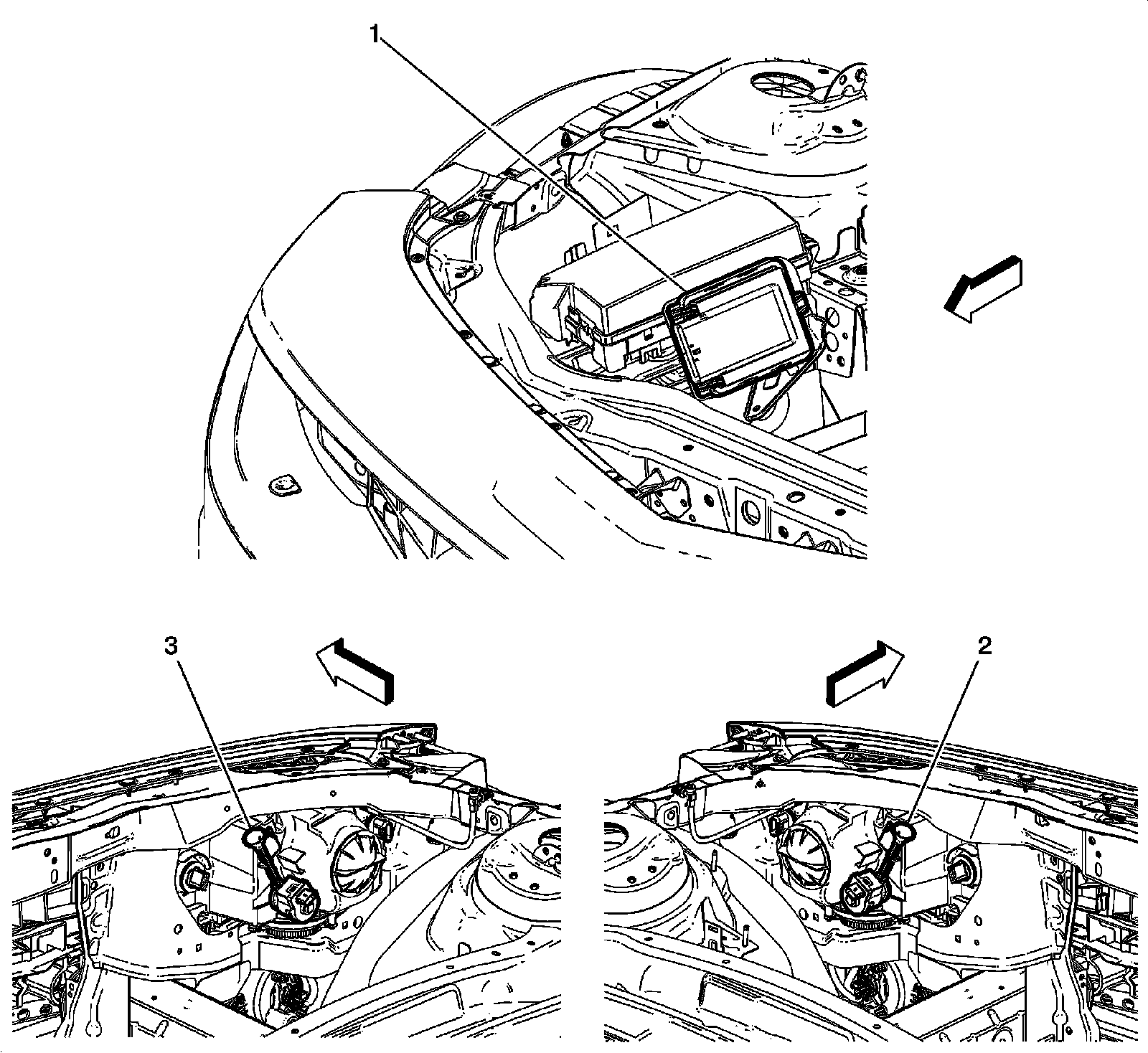

Front of the Engine Compartment Components (TR7)





1 - K28 Headlamp Leveling Control Module

2 - M29L Headlamp Leveling Actuator - Left

3 - M29R Headlamp Leveling Actuator - Right
