Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

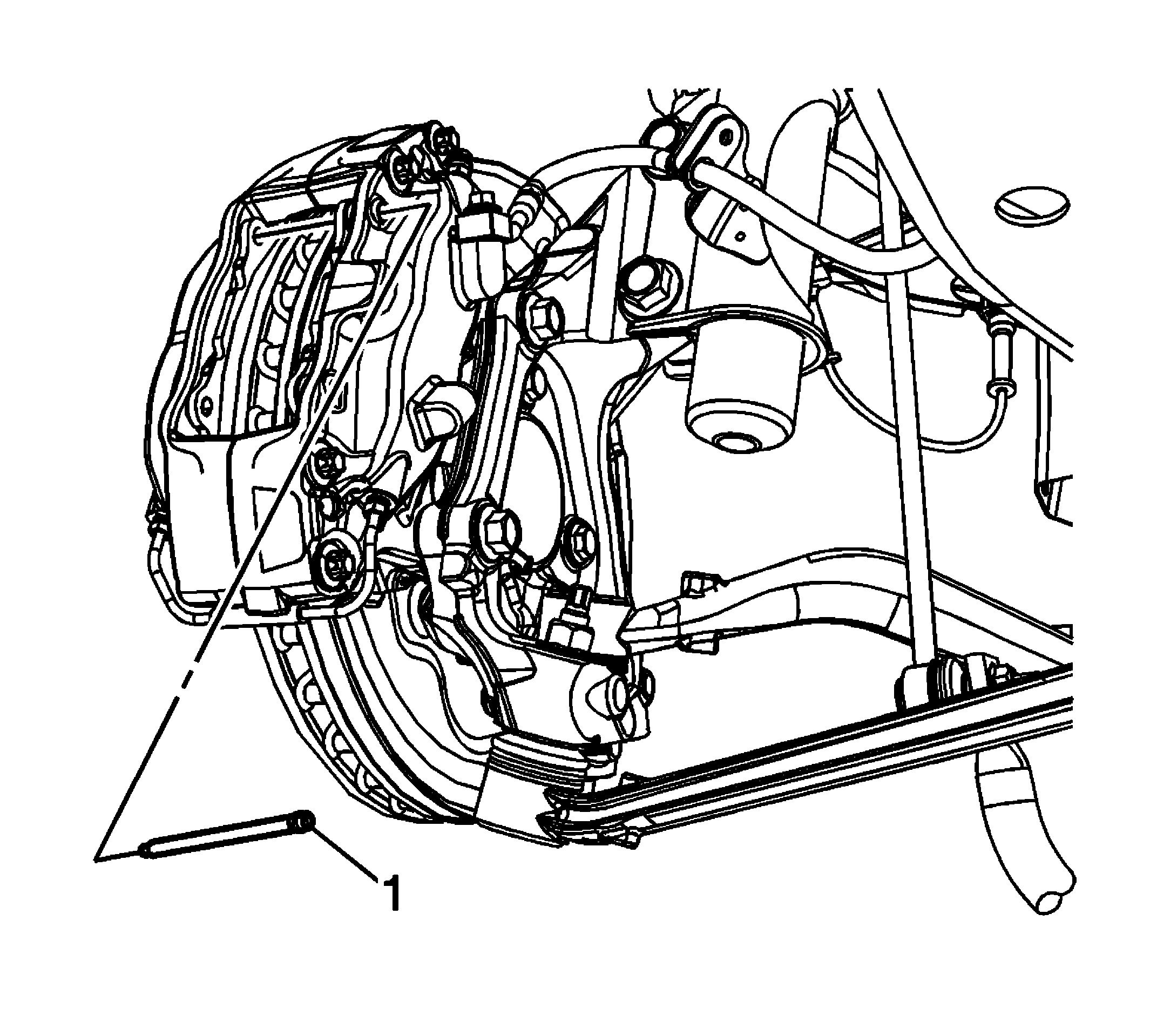

    Fig 1: Upper Brake Pad Pin
    GM2243694Courtesy of GENERAL MOTORS CORP.
  1. Inspect the brake pad pins and brake pad spring for damage or excessive corrosion and replace, if necessary. Refer to Front Disc Brake Mounting and Hardware Inspection .
  2. Carefully drive the upper brake pad pin (1) into the brake caliper.
  3. Ensure the brake pad pin is fully seated in the brake caliper.

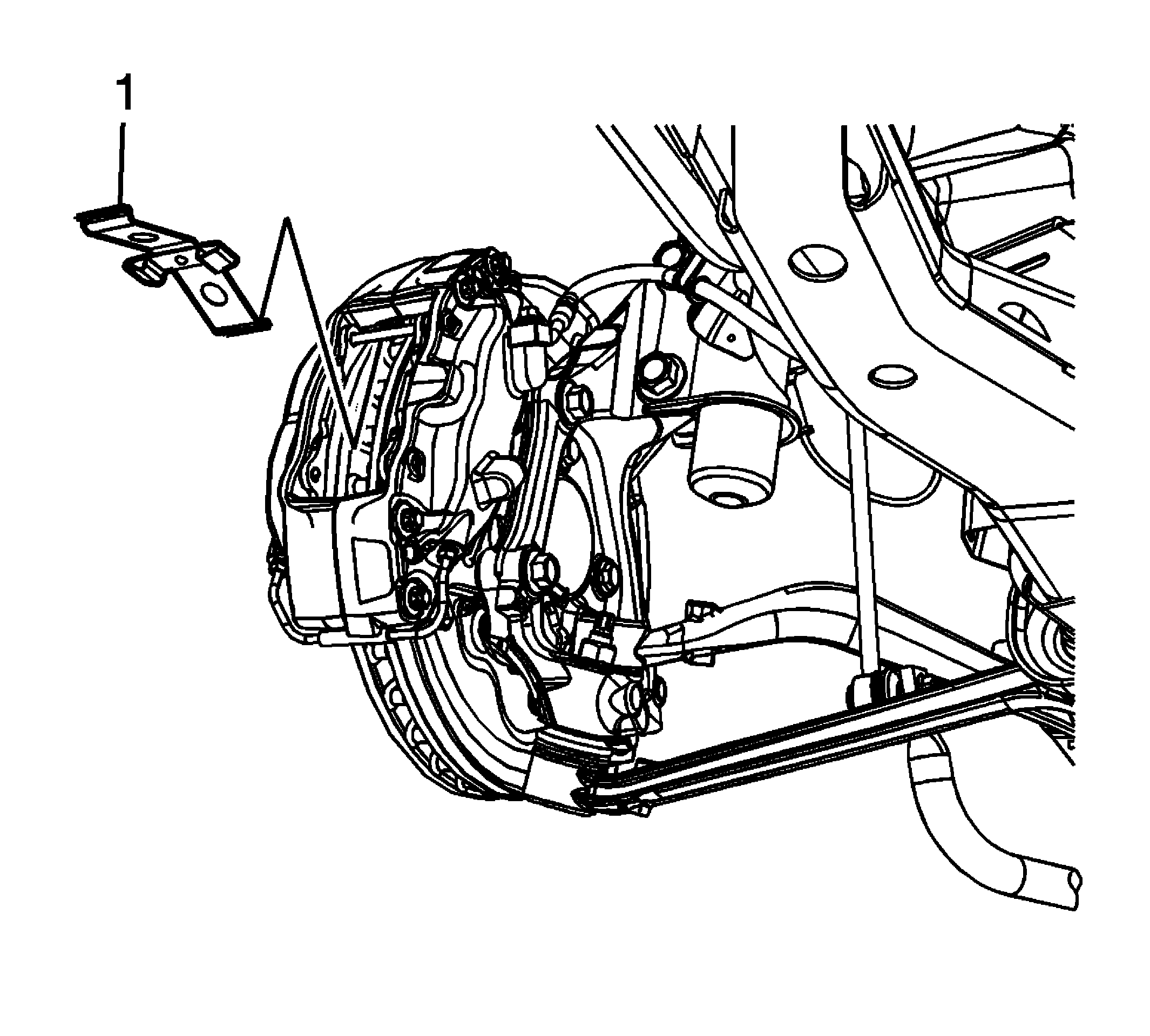

    4. Fig 2: Brake Pad Spring
    GM2243693Courtesy of GENERAL MOTORS CORP.
  4. Install the brake pad spring (1).

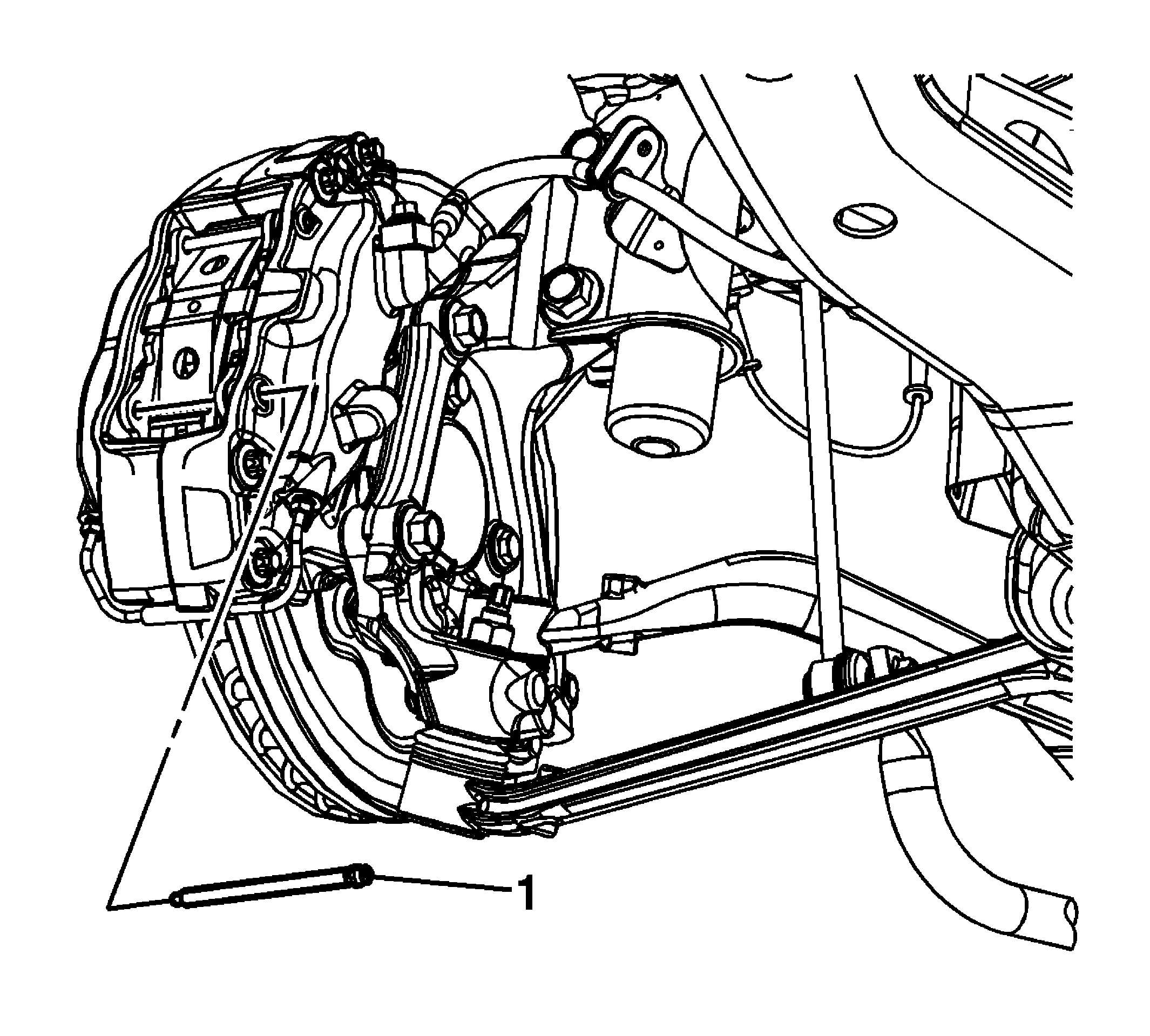

    5. Fig 3: Lower Brake Caliper Pin
    GM2243692Courtesy of GENERAL MOTORS CORP.
  5. Hold the end of the brake pad spring down and carefully drive the lower brake pad pin (1) into the brake caliper.
  6. Ensure the brake pad pin is fully seated in the brake caliper.
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
