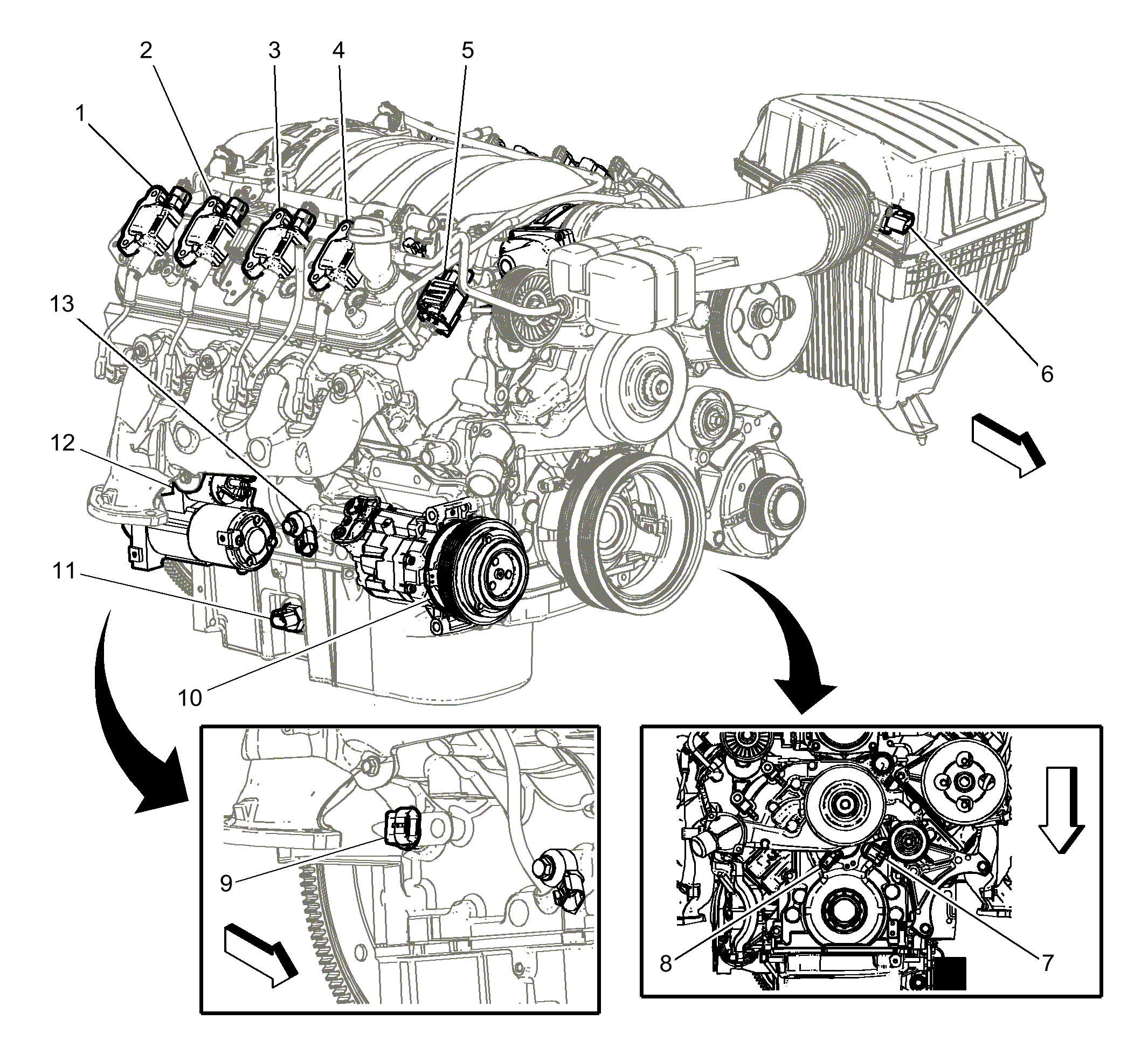

Right Front of the Engine Components (L99 or LS3)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
Right Front of the Engine Components (L99 or LS3)
| Component Name | Callout |
|---|---|
| T8H Ignition Coil 8 | 1 |
| T8F Ignition Coil 6 | 2 |
| T8D Ignition Coil 4 | 3 |
| T8B Ignition Coil 2 | 4 |
| Q12 Evaporative Emission (EVAP) Purge Solenoid Valve | 5 |
| B75B Mass Air Flow/Intake Air Temperature Sensor | 6 |
| B23 Camshaft Position Sensor | 7 |
| Q6 Camshaft Position Actuator Solenoid Valve (L99) | 8 |
| B26 Crankshaft Position Sensor | 9 |
| Q2 A/C Compressor Clutch | 10 |
| B35C Engine Oil Level and Temperature Sensor | 11 |
| M64 Starter Motor | 12 |
| B68B Knock Sensor 2 | 13 |
