Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

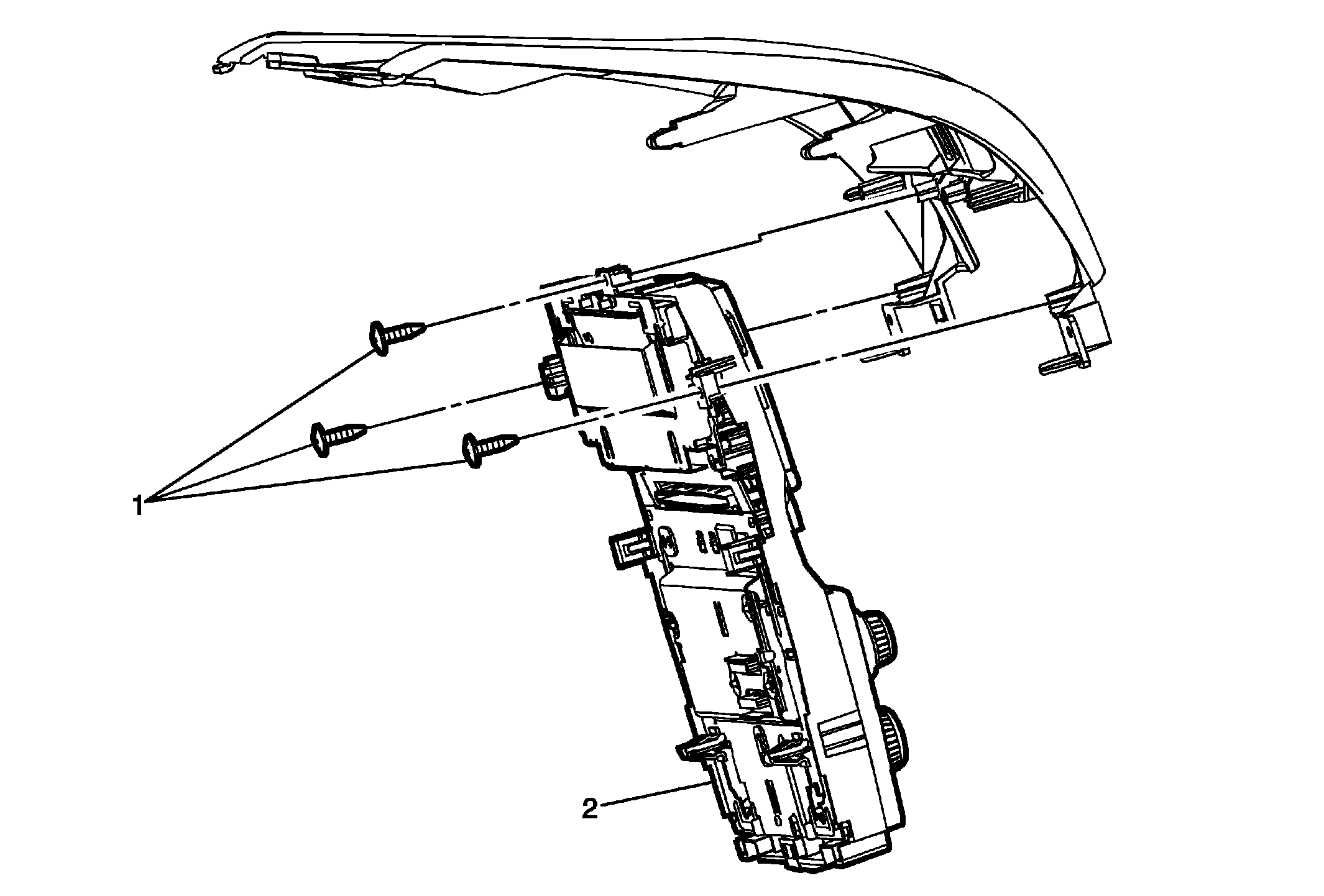

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement . Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement .
1	Radio Control Assembly Bolt/Screw (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Radio Control Assembly Procedure When replacing the radio control assembly, transfer components as necessary. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement .

Radio Control Assembly Bolt/Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Radio Control Assembly

Procedure

When replacing the radio control assembly, transfer components as necessary.
Refer to Control Module References for programming and setup information.
