Radio Power, Ground, and Serial Data Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

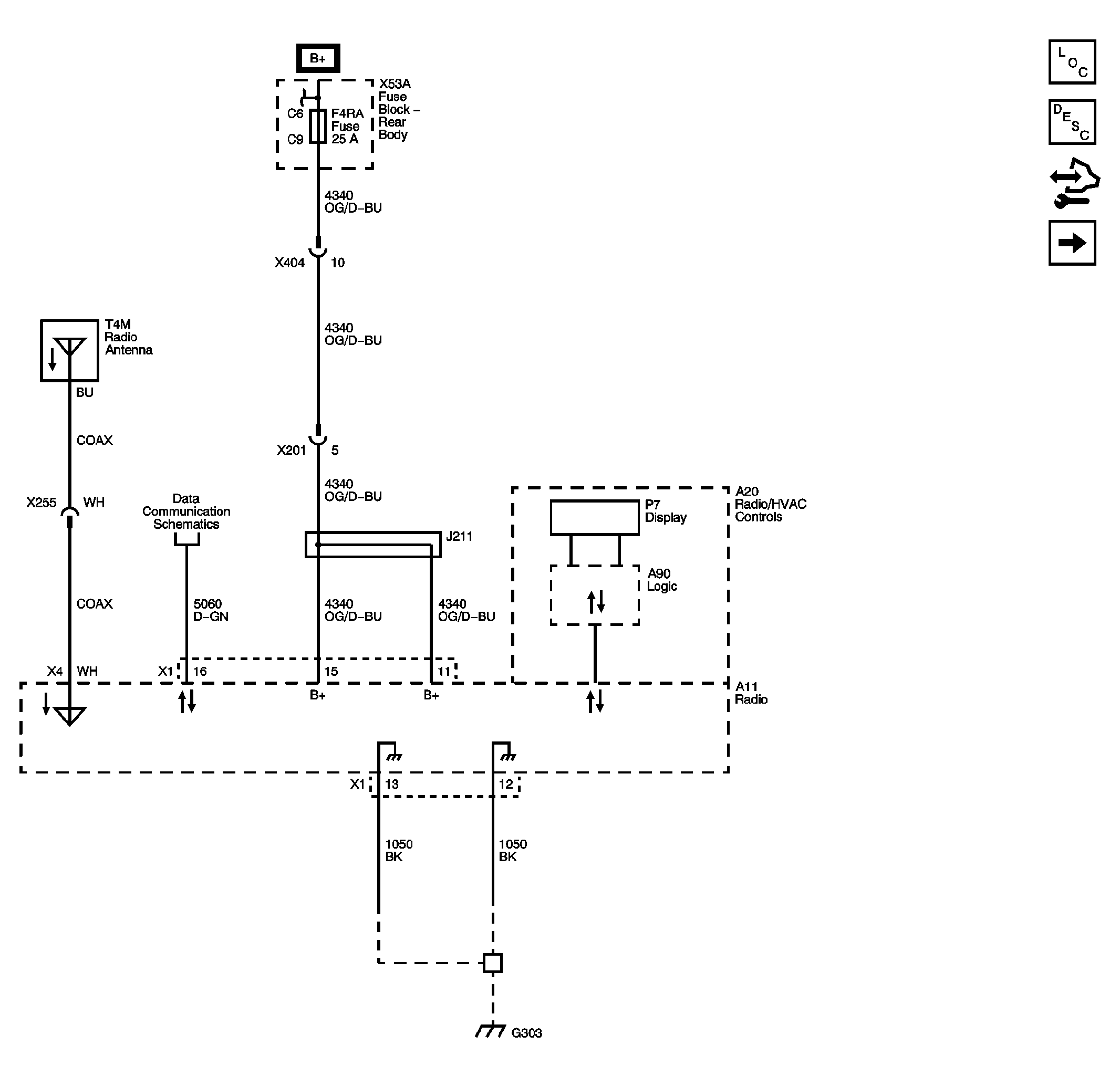

Fig 1: Radio Power, Ground, and Serial Data Wiring Schematics
GM2531241Courtesy of GENERAL MOTORS CORP.
