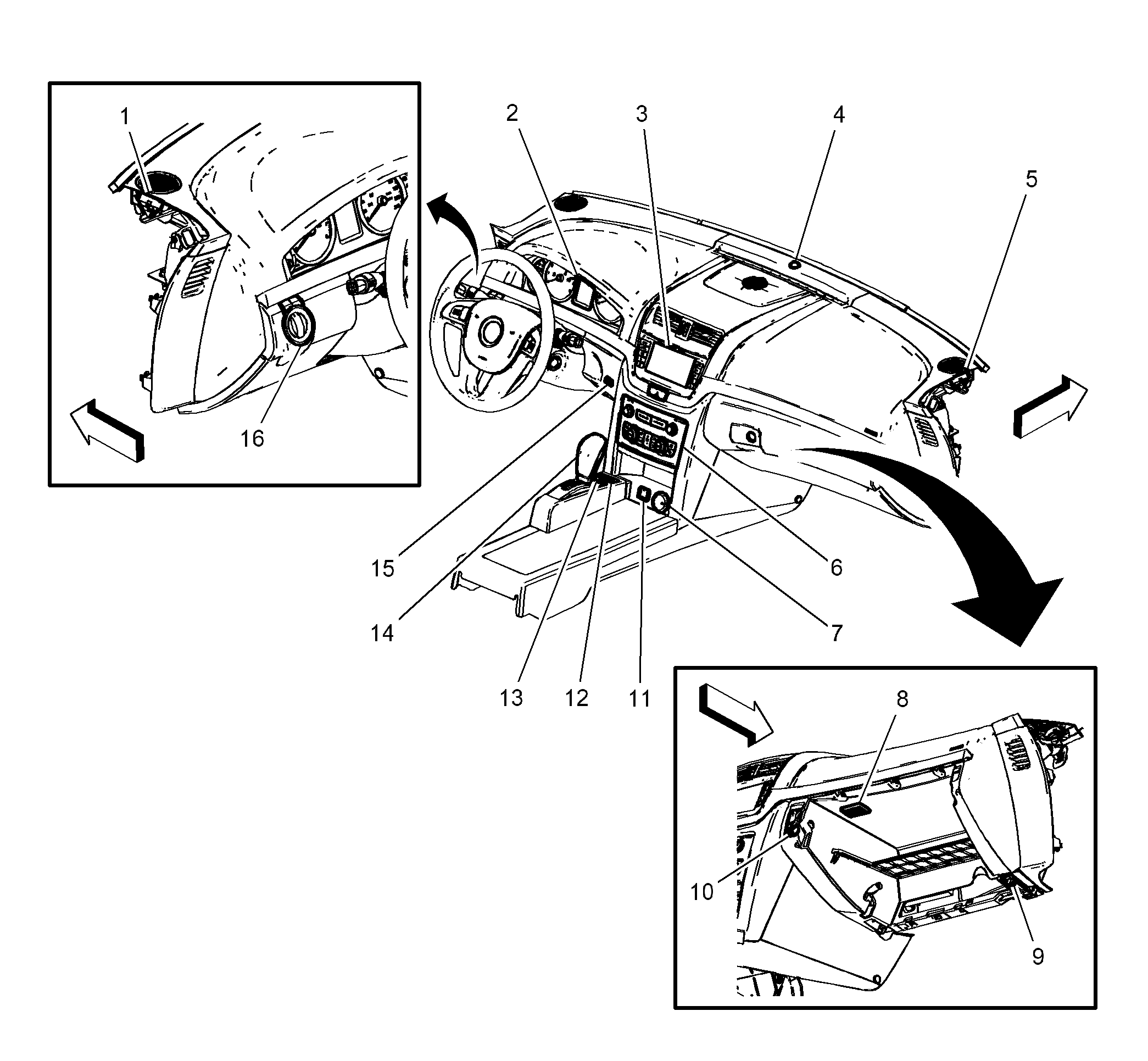

Instrument Panel and Center Console Components
Instrument Panel and Center Console Components
| Component Name | Callout |
|---|---|
| P19H Speaker - Left Front Tweeter | 1 |
| P16 Instrument Cluster | 2 |
| P17 Info Display Module | 3 |
| P19B Speaker - Center Instrument Panel | 4 |
| B10B Ambient Light/Sunload Sensor | 5 |
| P19V Speaker - Right Front Tweeter | 6 |
| S26 Hazard Warning Switch | 7 |
| A20 Radio/HVAC Controls | 8 |
| X80H Accessory Power Receptacle - Center Console | 9 |
| E27 Instrument Panel Compartment Lamp | 10 |
| S35 Instrument Panel Compartment Lamp Switch 2 | 11 |
| S35 Instrument Panel Compartment Lamp Switch | 12 |
| S58B Rear Compartment Lid Unlatch Switch - Interior | 13 |
| S48E Multifunction Switch Module | 14 |
| S48E Multifunction Switch Module | 15 |
| S3 Transmission Shift Lever | 16 |
| B7A Inside Air Temperature Sensor | 17 |
| S30 Headlamp Switch | 18 |
