HVAC Components

Instrument Panel/Center Console Component Views

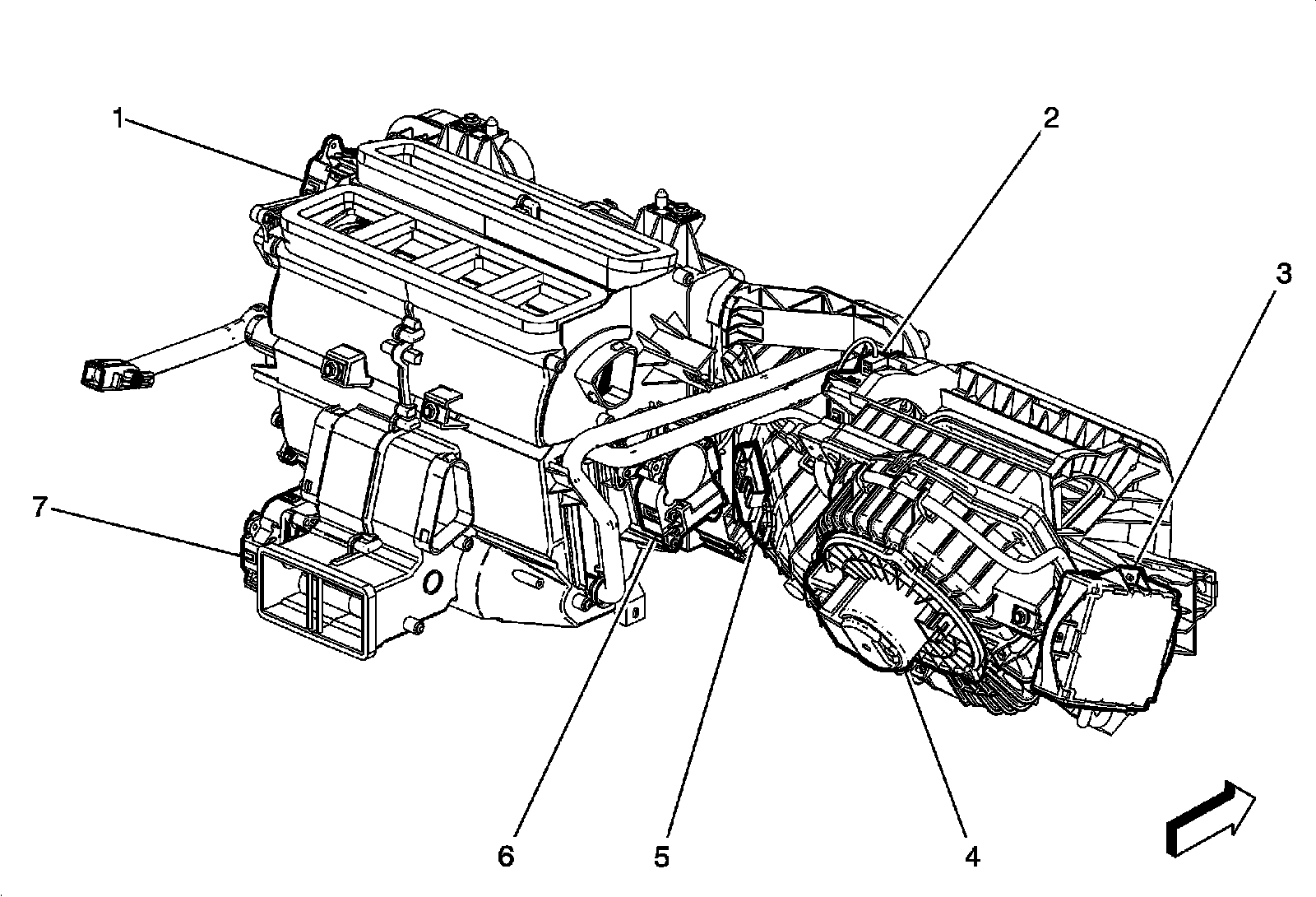

HVAC Components





1 - M12 Defrost Door Actuator

2 - M46 Air Recirculation Door Actuator

3 - K33 HVAC Control Module

4 - M8 Blower Motor

5 - K8 Blower Motor Control Module

6 - M6R Air Temperature Door Actuator

7 - M37 Mode Door Actuator
