Air Flow Meter/Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

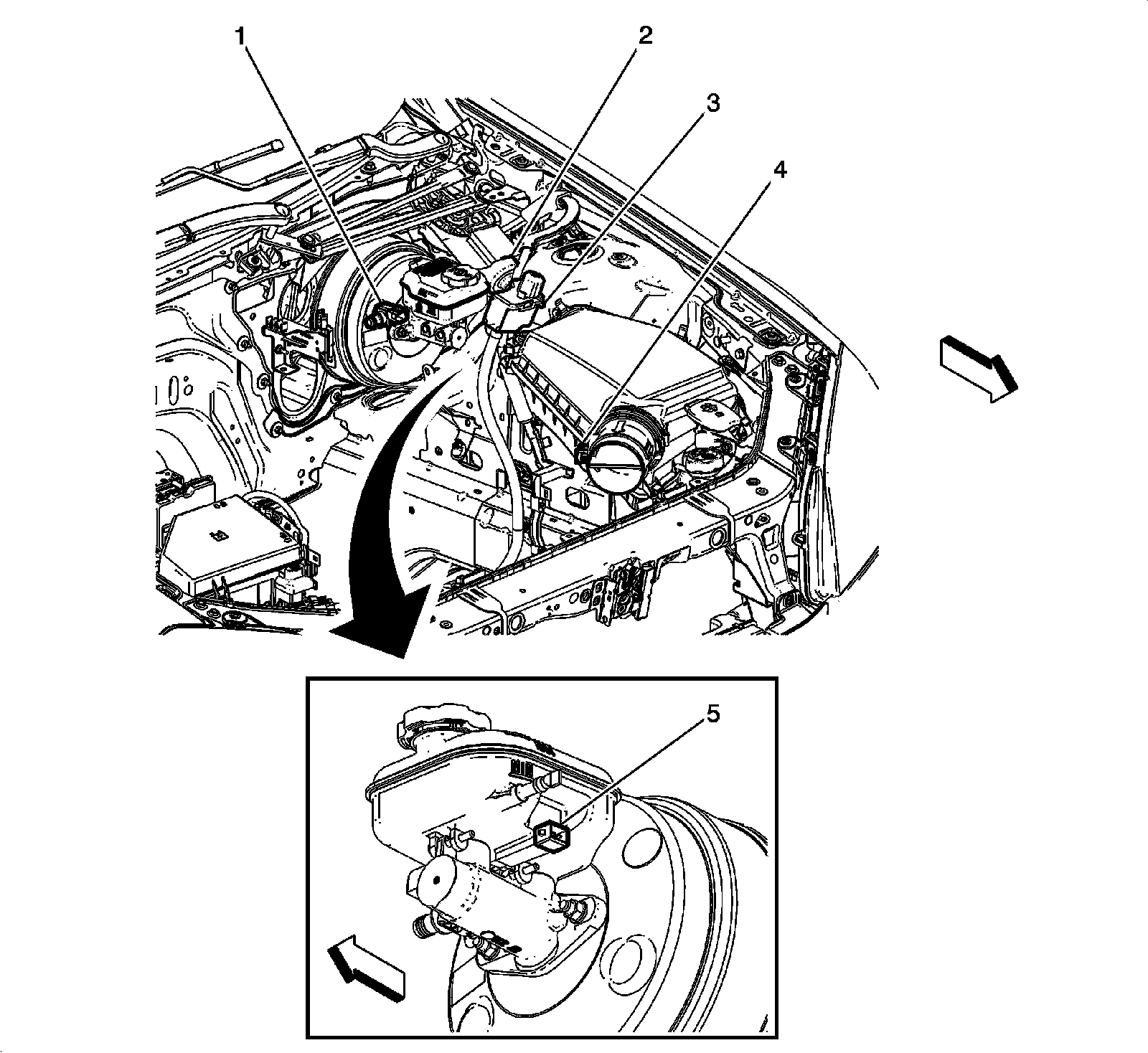

Left Side of the Engine Compartment Components





1 - B19B Brake Booster Vacuum Sensor

2 - M75 Windshield Wiper Motor

3 - X60A Junction Block - Underhood

4 - B75B Mass Air Flow/Intake Air Temperature Sensor

5 - B20 Brake Fluid Level Switch
