Power Window Control Module: Locations

Passenger Compartment/Roof Component Views

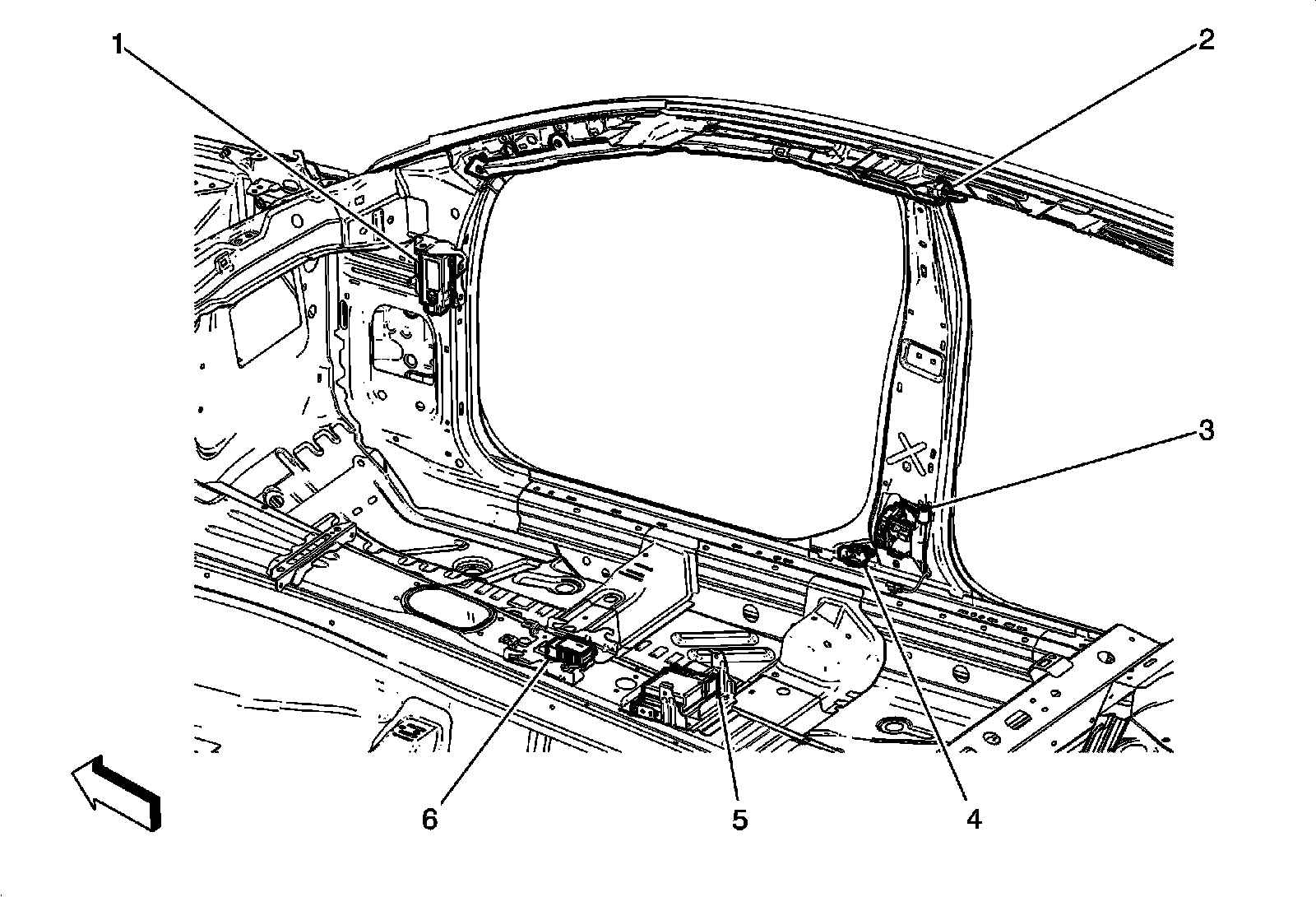

Right Front of the Passenger Compartment Components





1 - K90 Window Control Module

2 - F105R Roof Rail Air Bag - Right

3 - F112P Seat Belt Retractor Pretensioner - Passenger

4 - B63R Side Impact Sensor - Right

5 - K36 Inflatable Restraint Sensing and Diagnostic Module

6 - B119 Multi-axis Acceleration Sensor
