Engine Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

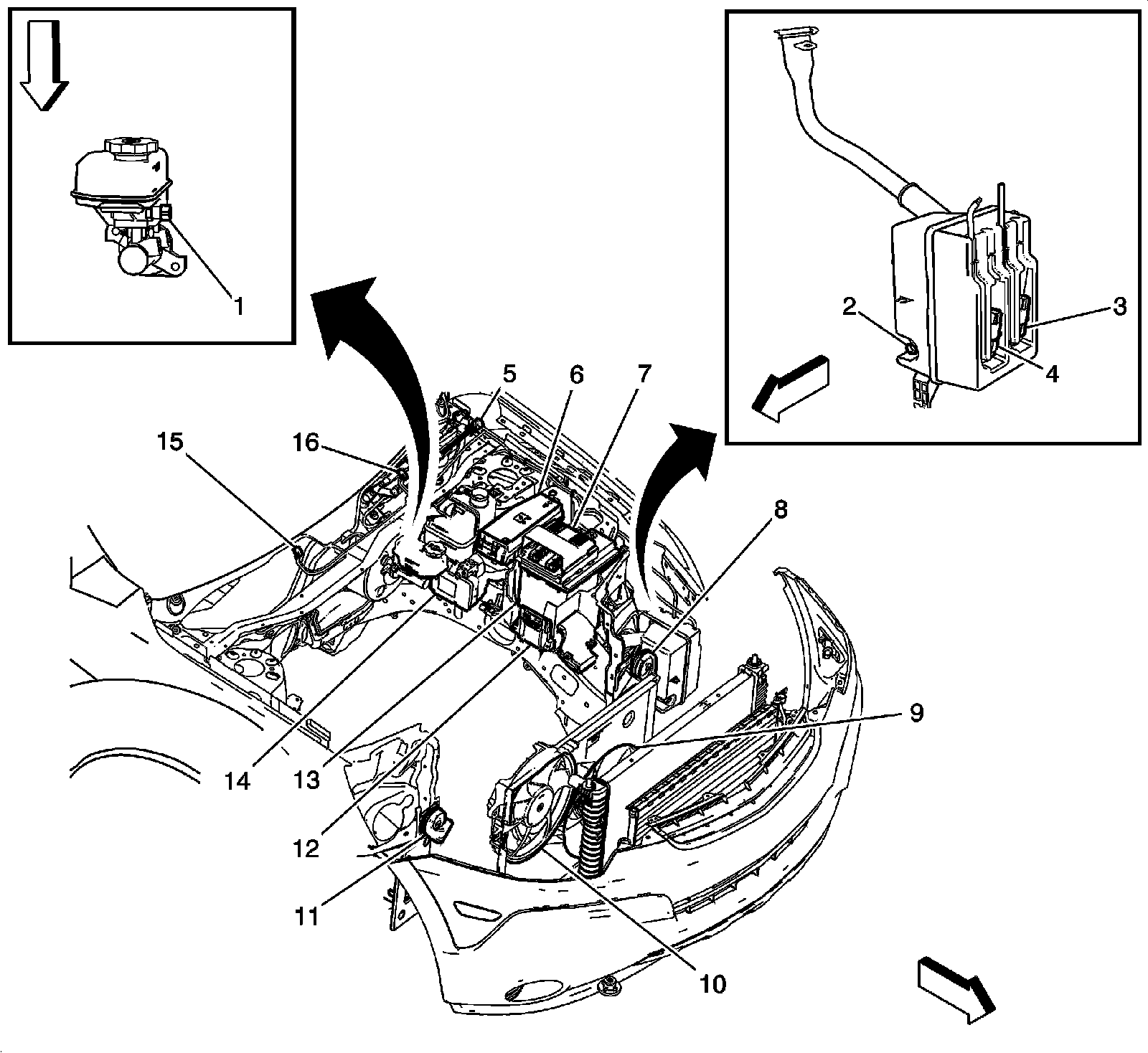

Engine Compartment Components





1 - Brake Fluid Level Switch

2 - Windshield Washer Fluid Level Switch

3 - Windshield Washer Fluid Pump - Rear

4 - Windshield Washer Fluid Pump - Front

5 - Windshield Wiper Motor

6 - Fuse Block - Underhood

7 - Engine Control Module

8 - Horn - Left

9 - Engine Cooling Fan - Left

10 - Engine Cooling Fan - Right

11 - Horn - Right

12 - Transmission Control Module (ME7)

13 - Battery

14 - Electronic Brake Control Module

15 - Heated Washer Nozzle - Right ( XA7)

16 - Heated Washer Nozzle - Left ( XA7)
