Heated Seat Control Module - Passenger (KA1)

Passenger Compartment/Roof Component Views

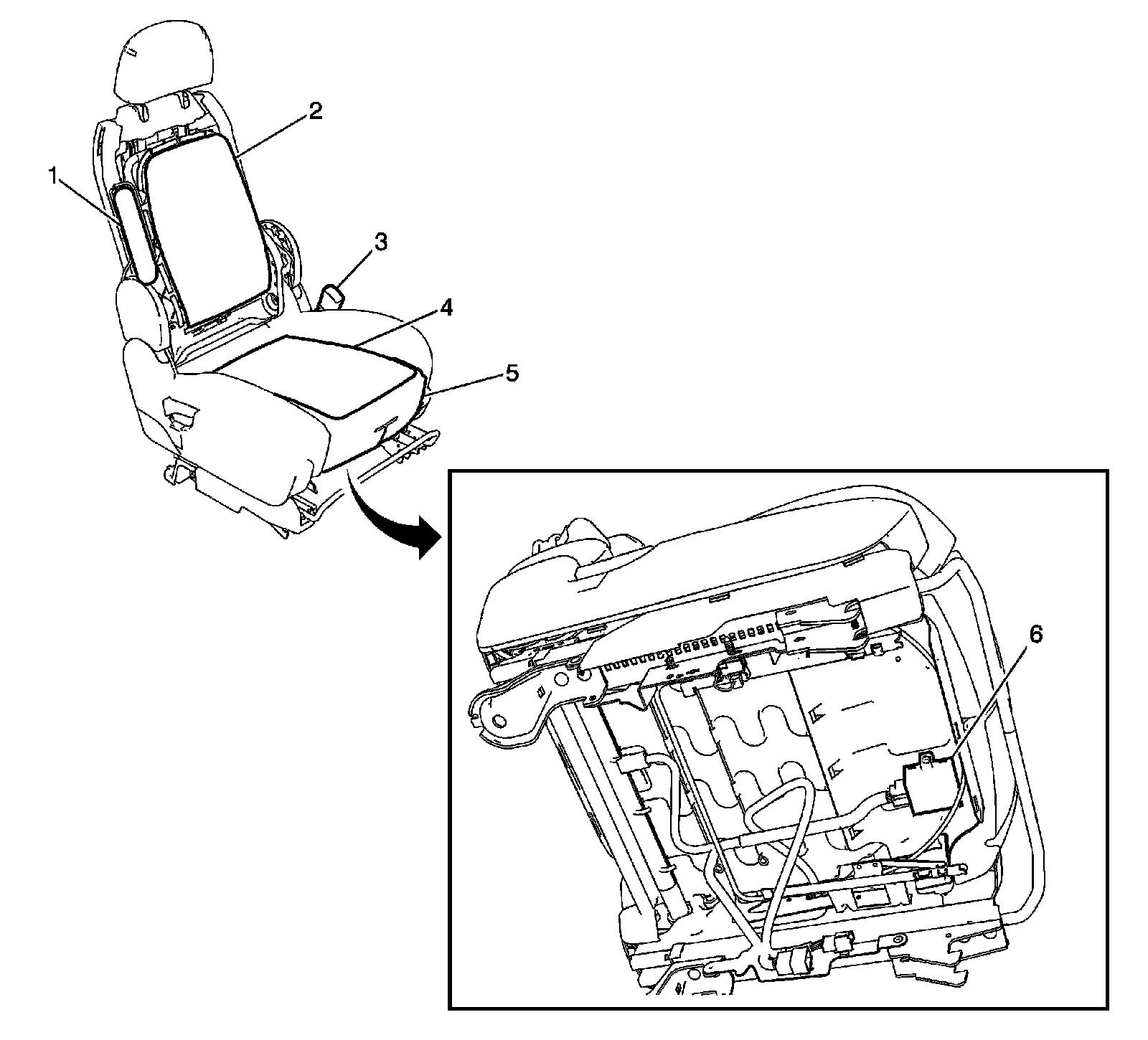

Passenger Seat Components





1 - Inflatable Restraint Side Impact Module - Right

2 - Heated Seat Element - Passenger Back (KA1)

3 - Seat Belt Buckle Pretensioner and Seat Belt Switch - Passenger

4 - Heated Seat Element - Passenger Cushion (KA1)

5 - Inflatable Restraint Passenger Presence System (PPS) Module

6 - Heated Seat Control Module - Passenger (KA1)
