Right Rear Engine Components

Powertrain Component Views

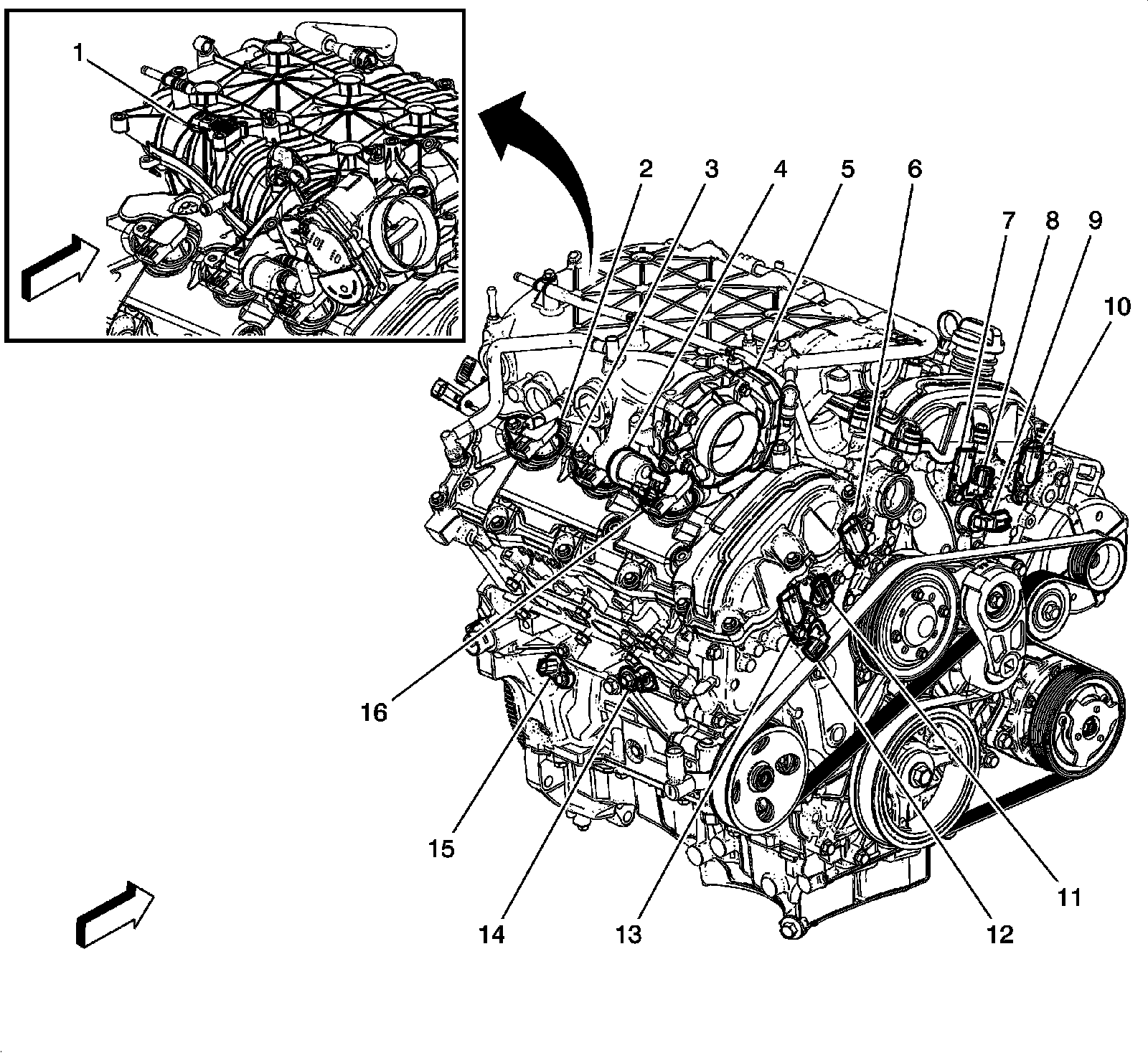

Right Rear Engine Components (LFW)





1 - Manifold Absolute Pressure Sensor

2 - Ignition Coil 5

3 - Ignition Coil 3

4 - Evaporative Emission (EVAP) Purge Solenoid Valve

5 - Throttle Actuator Control (TAC) Module

6 - Camshaft Position Sensor - Bank 1 Intake

7 - Camshaft Position Sensor - Bank 2 Intake

8 - Camshaft Position Actuator Solenoid Valve - Bank 2 Intake

9 - Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust

10 - Camshaft Position Sensor - Bank 2 Exhaust

11 - Camshaft Position Actuator Solenoid Valve - Bank 1 Intake

12 - Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust

13 - Camshaft Position Sensor - Bank 1 Exhaust

14 - Knock Sensor 1

15 - Crankshaft Position Sensor

16 - Ignition Coil 1
