HVAC Module Components (C68)
Courtesy of GENERAL MOTORS COMPANY
|

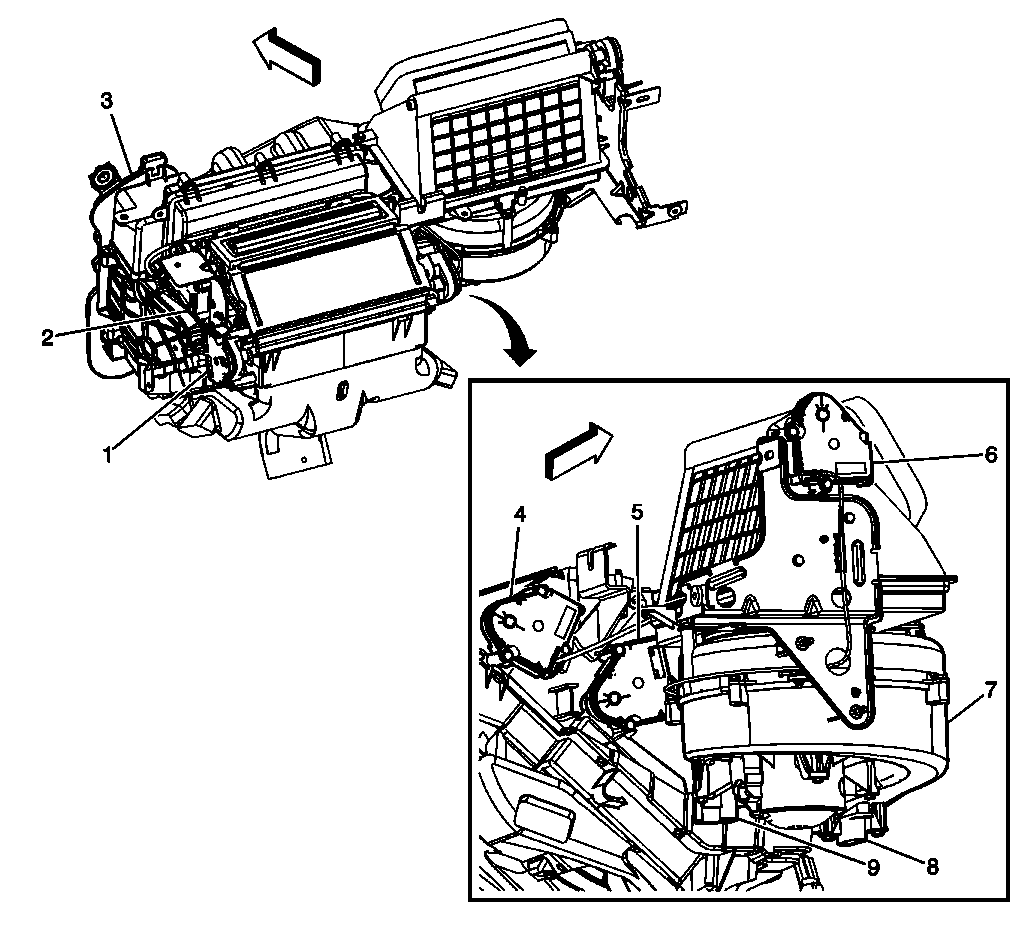

HVAC Module Components (C68)
| Component Name |
Callout |
| Mode Actuator |
1 |
| Air Plenum |
2 |
| Evaporator Temperature Sensor |
3 |
| Mode Actuator (Side View) |
4 |
| Air Temperature Actuator |
5 |
| Recirculation Actuator |
6 |
| Blower Motor |
7 |
| Blower Motor Control Module |
8 |
| X202 |
9 |
