Removal Procedure

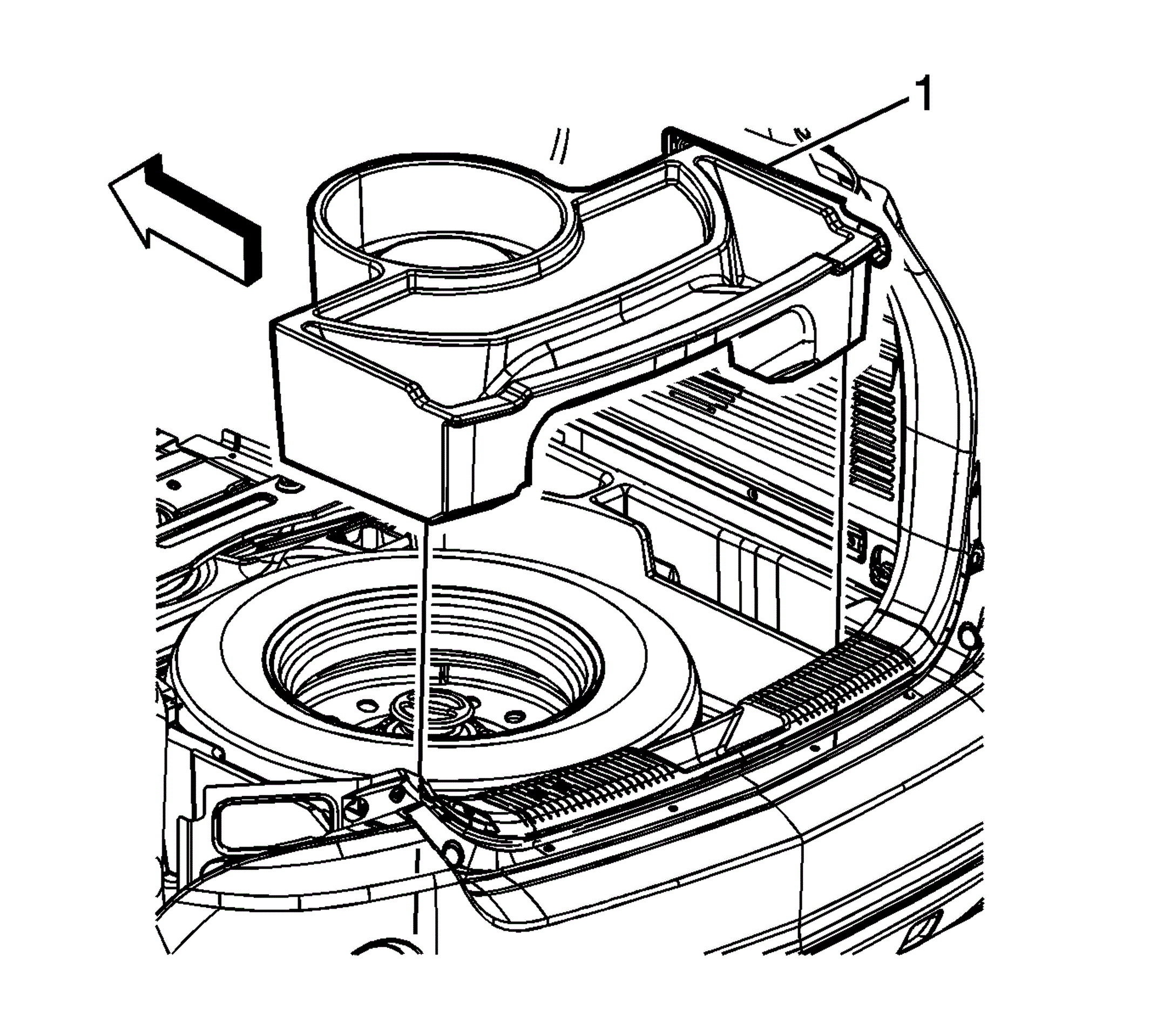

    Fig 1: Spare Tire Spacer
    GM1887028Courtesy of GENERAL MOTORS COMPANY
  1. Open the rear compartment floor stowage compartment cover.
  2. Remove the spare tire spacer (1).
  3. Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement .

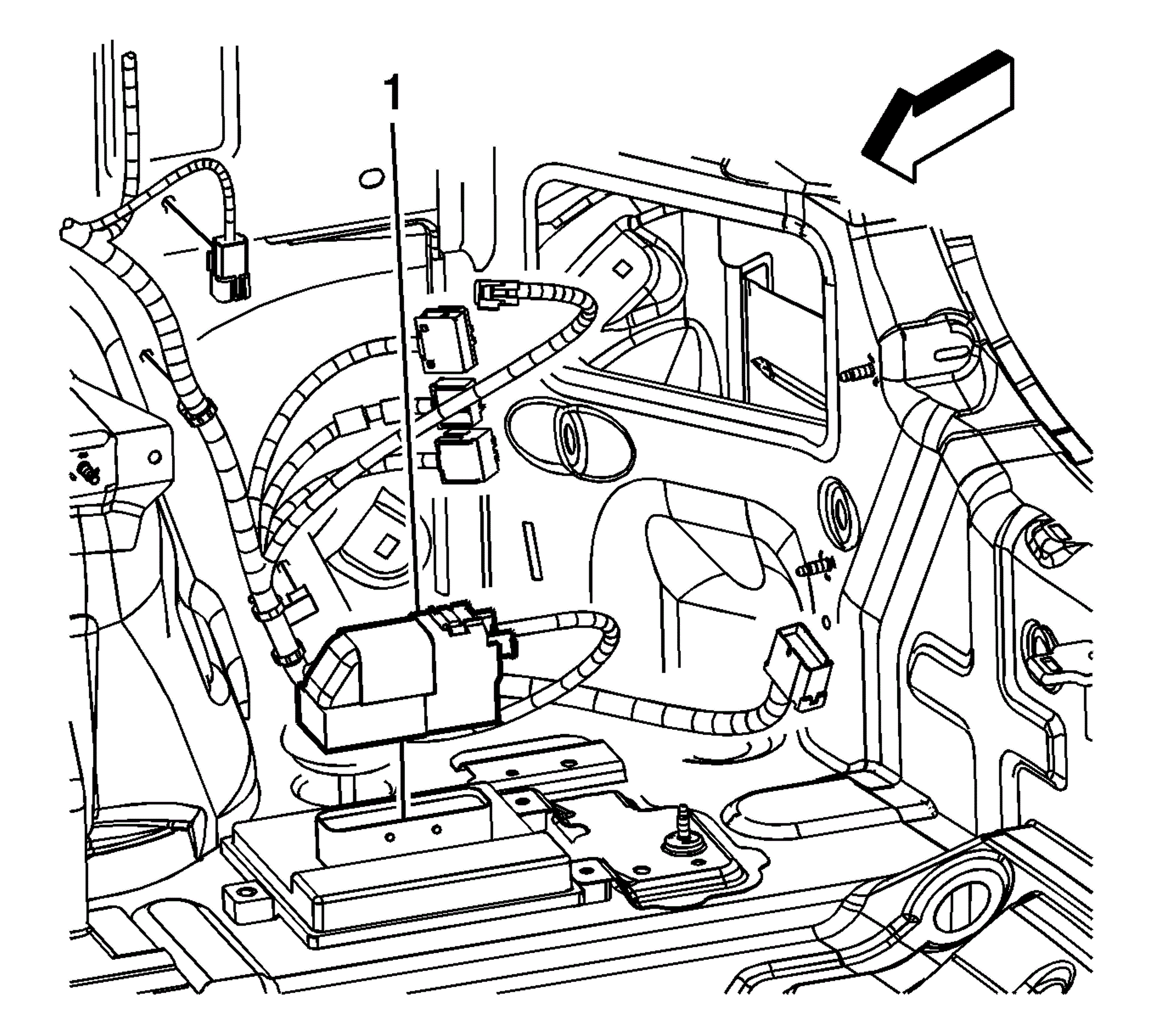

    4. Fig 2: Body Wiring Harness Electrical Connector
    GM1884959Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the body wiring harness electrical connector (1) from the fuel pump flow control module.

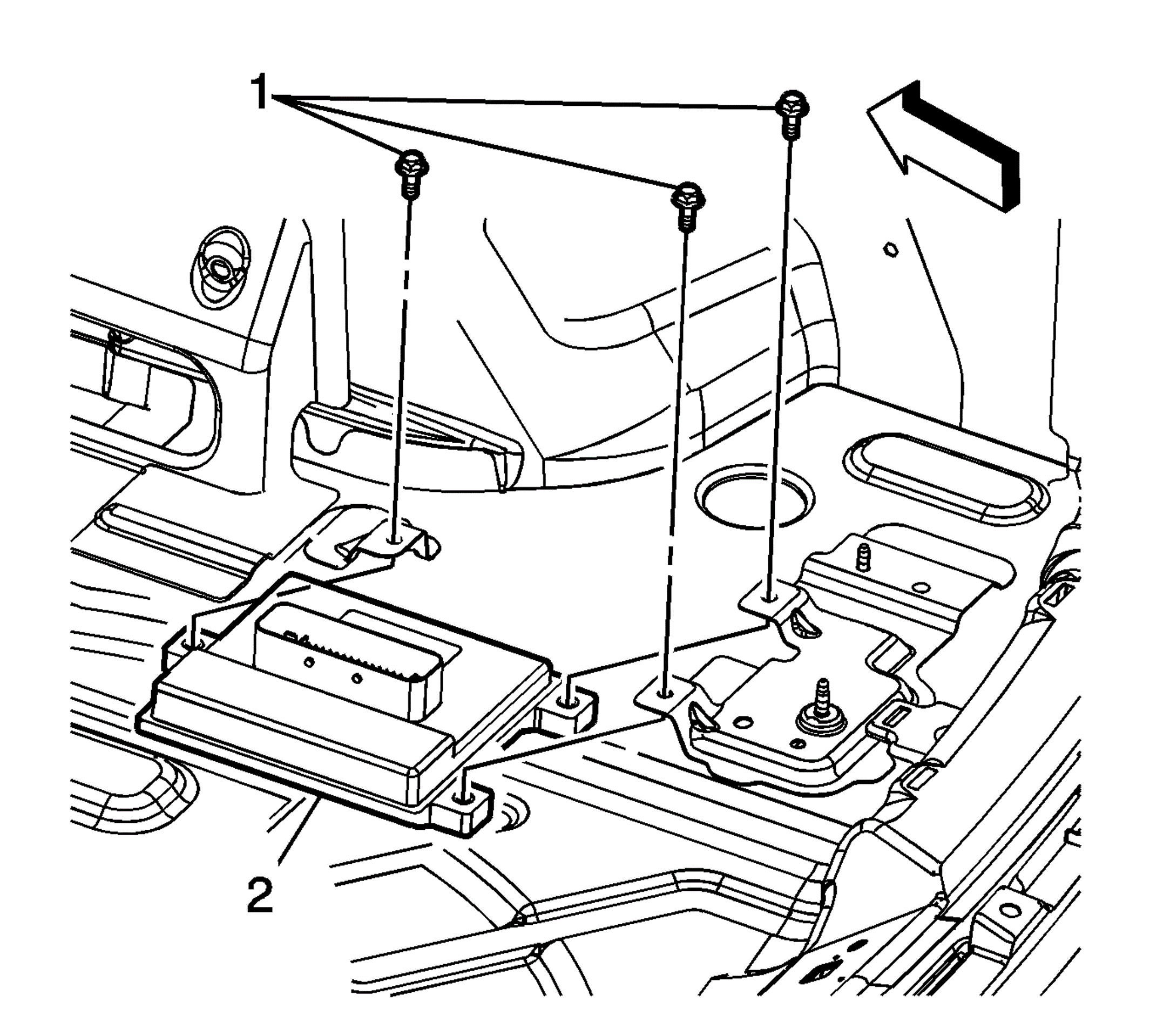

    5. Fig 3: Fuel Pump Flow Control Module Bolts
    GM1884960Courtesy of GENERAL MOTORS COMPANY
  5. Remove the fuel pump flow control module bolts (1).
  6. Slide the fuel pump flow control module towards the driver side of the vehicle.
  7. Remove the fuel pump flow control module (2) from the vehicle.
