Removal Procedure

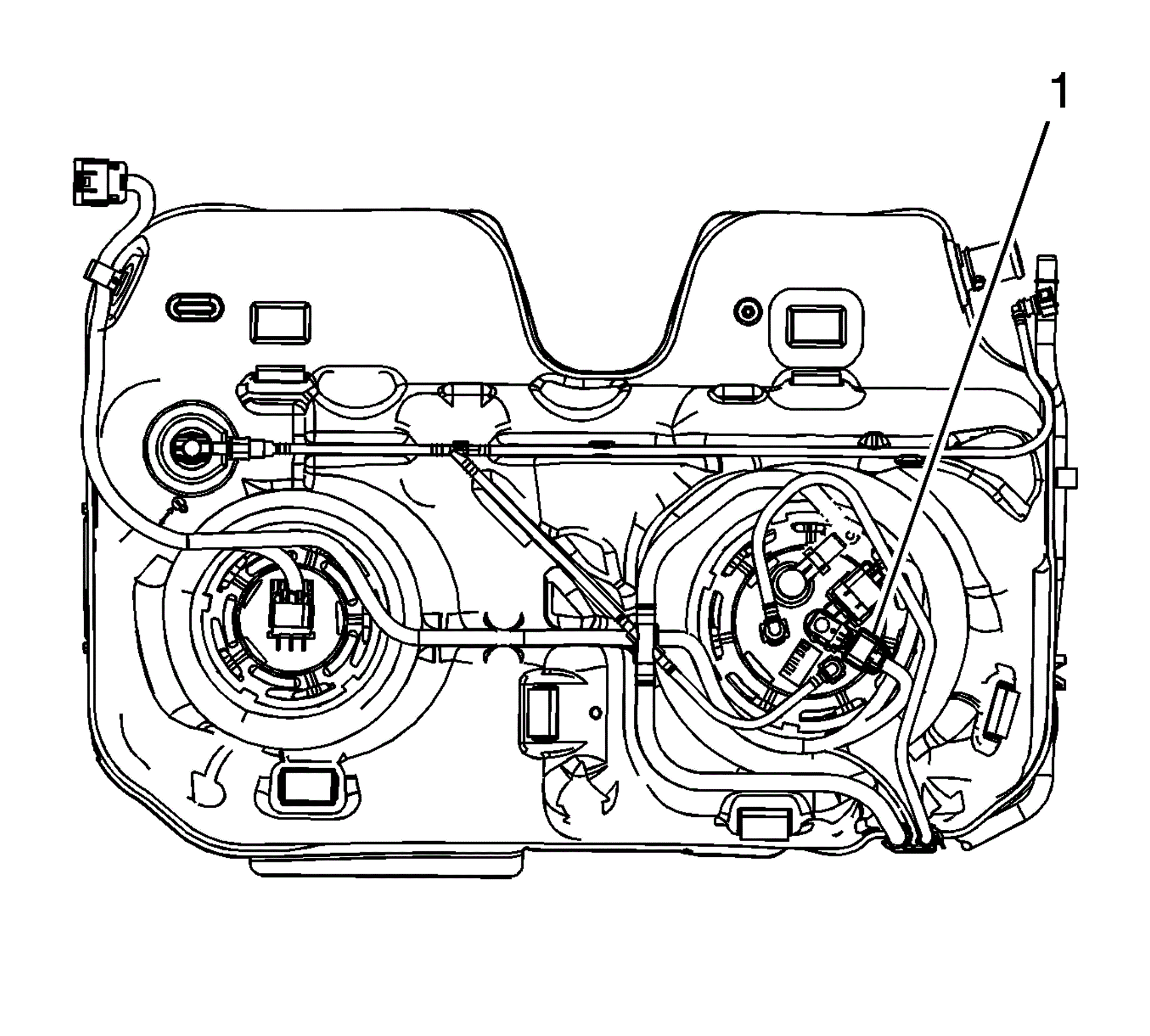

    Fig 1: Fuel Tank Wiring Harness Electrical Connector
    GM1885236Courtesy of GENERAL MOTORS COMPANY
  1. Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) , Fuel Tank Replacement (FWD) .
  2. Disconnect the fuel tank wiring harness electrical connector (1) from the fuel tank pressure sensor.

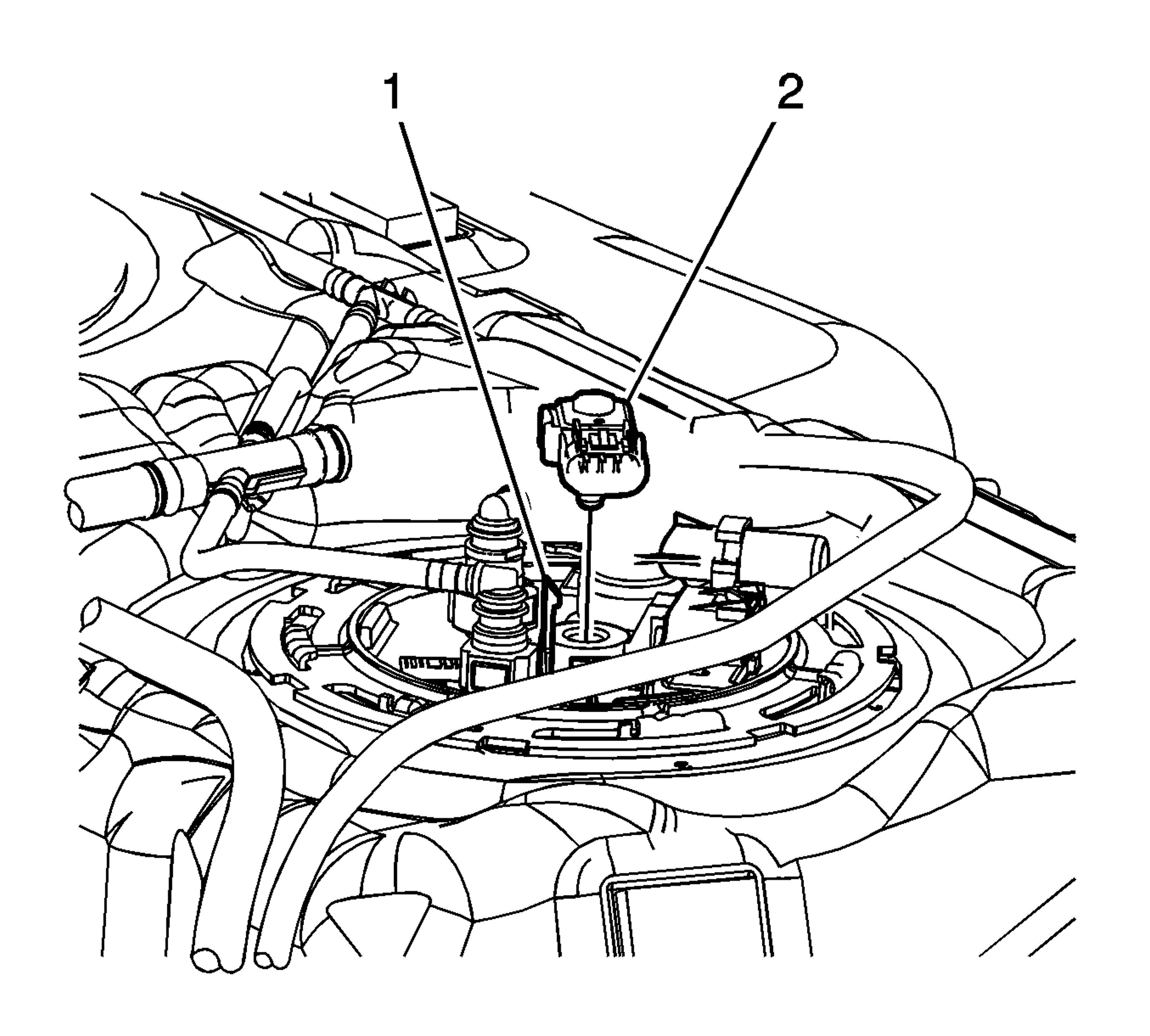

    3. Fig 2: Fuel Tank Pressure Sensor
    GM1885238Courtesy of GENERAL MOTORS COMPANY
  3. Disengage the retaining tab (1) securing the fuel tank pressure sensor.
  4. Carefully lift and remove the fuel tank pressure sensor (2) from the fuel pump module.
