Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

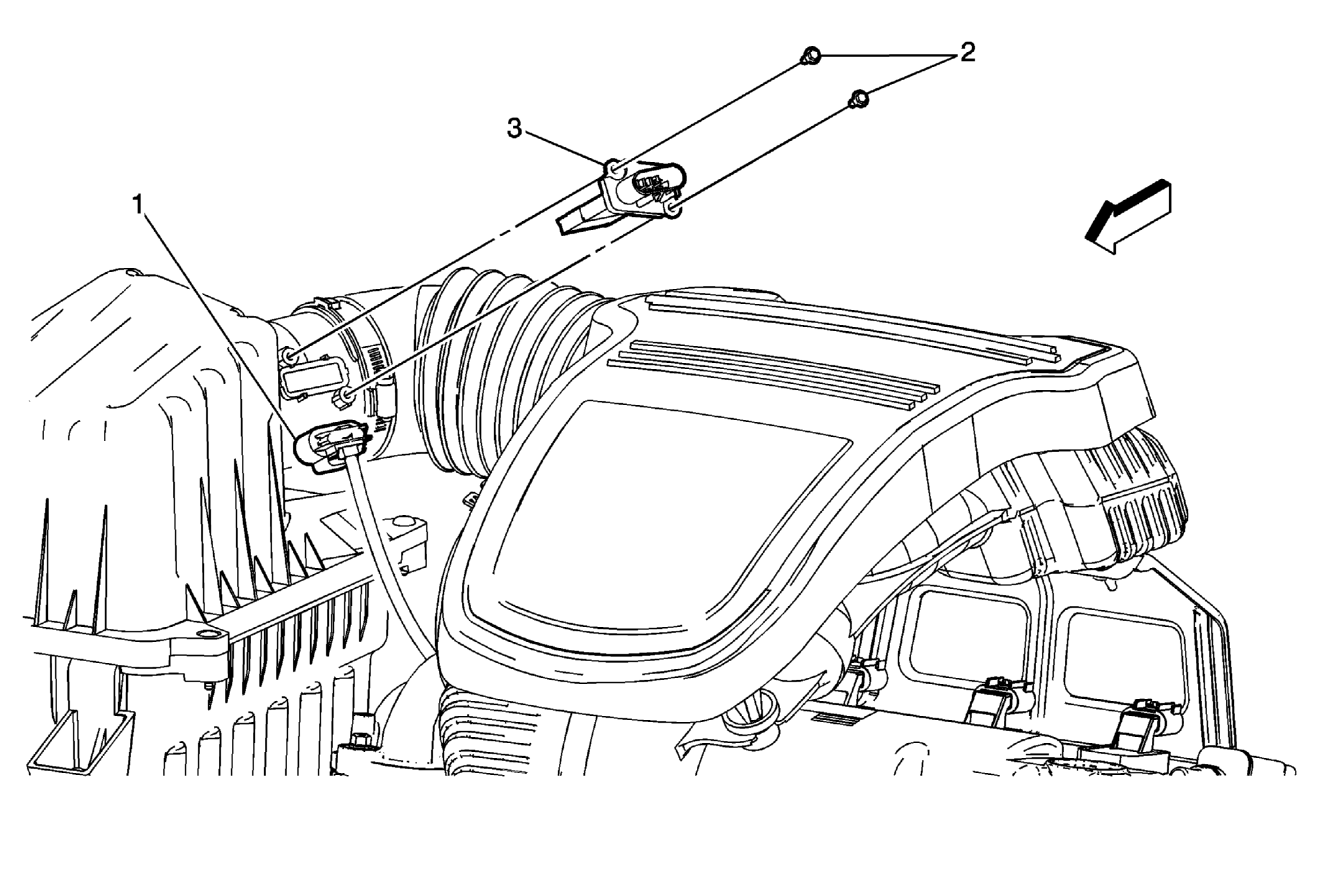

Fig 1: Mass Airflow Sensor/Intake Air Temperature Sensor
GM1886113Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor/Intake Air Temperature Sensor Electrical Connector
2 Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (34 lb in)
3 Mass Airflow Sensor/Intake Air Temperature Sensor
