Chevy Express H1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Body Control System Schematics
>>
BCM Power, Ground and Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BCM Power, Ground and Serial Data

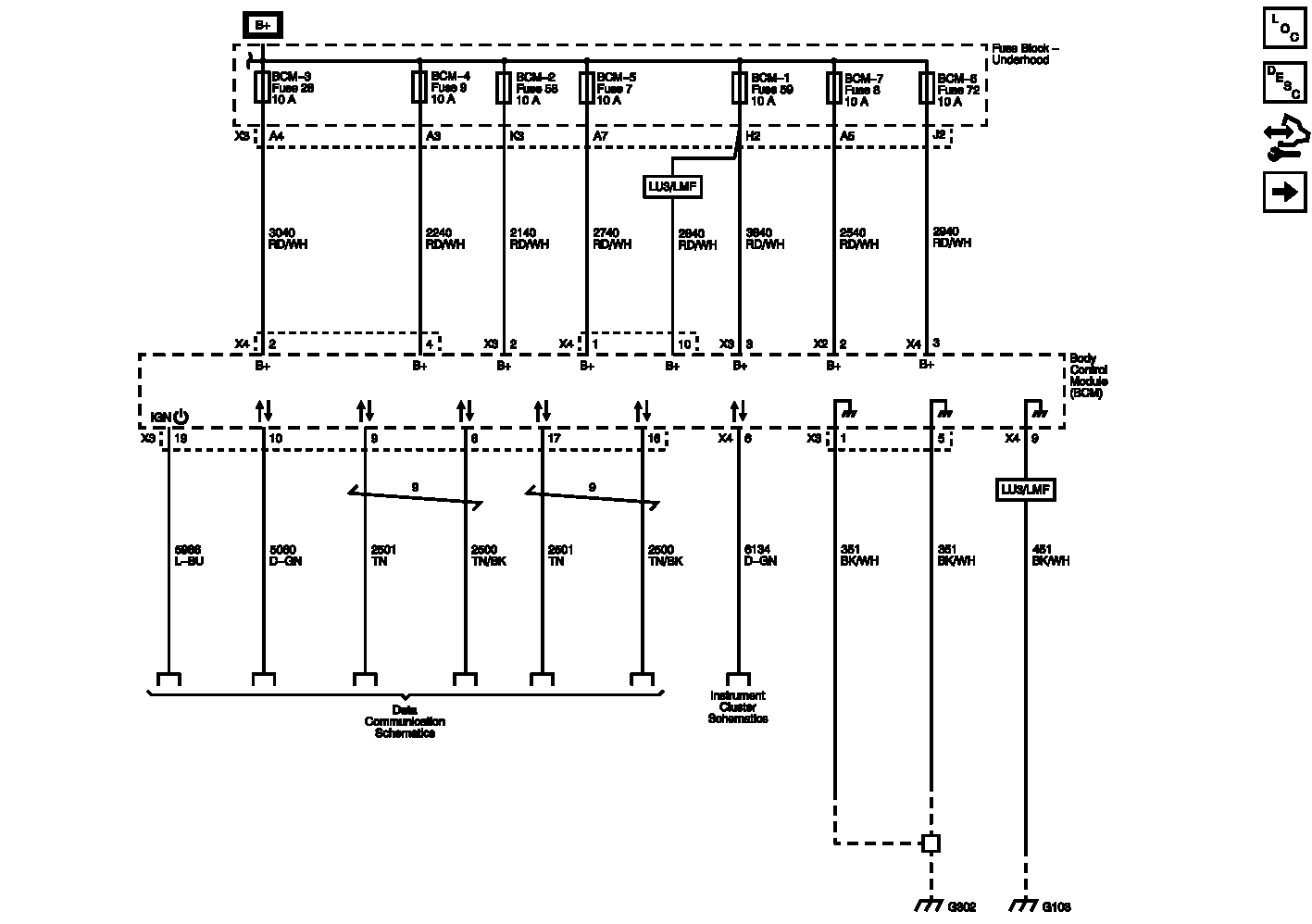

Fig 1: BCM Power, Ground and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
