Radio/Navigation System Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 GMC Savana Special, 2010 GMC Savana Camper Special, 2010 GMC Savana, 2010 Chevrolet RV Cutaway, and 2010 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

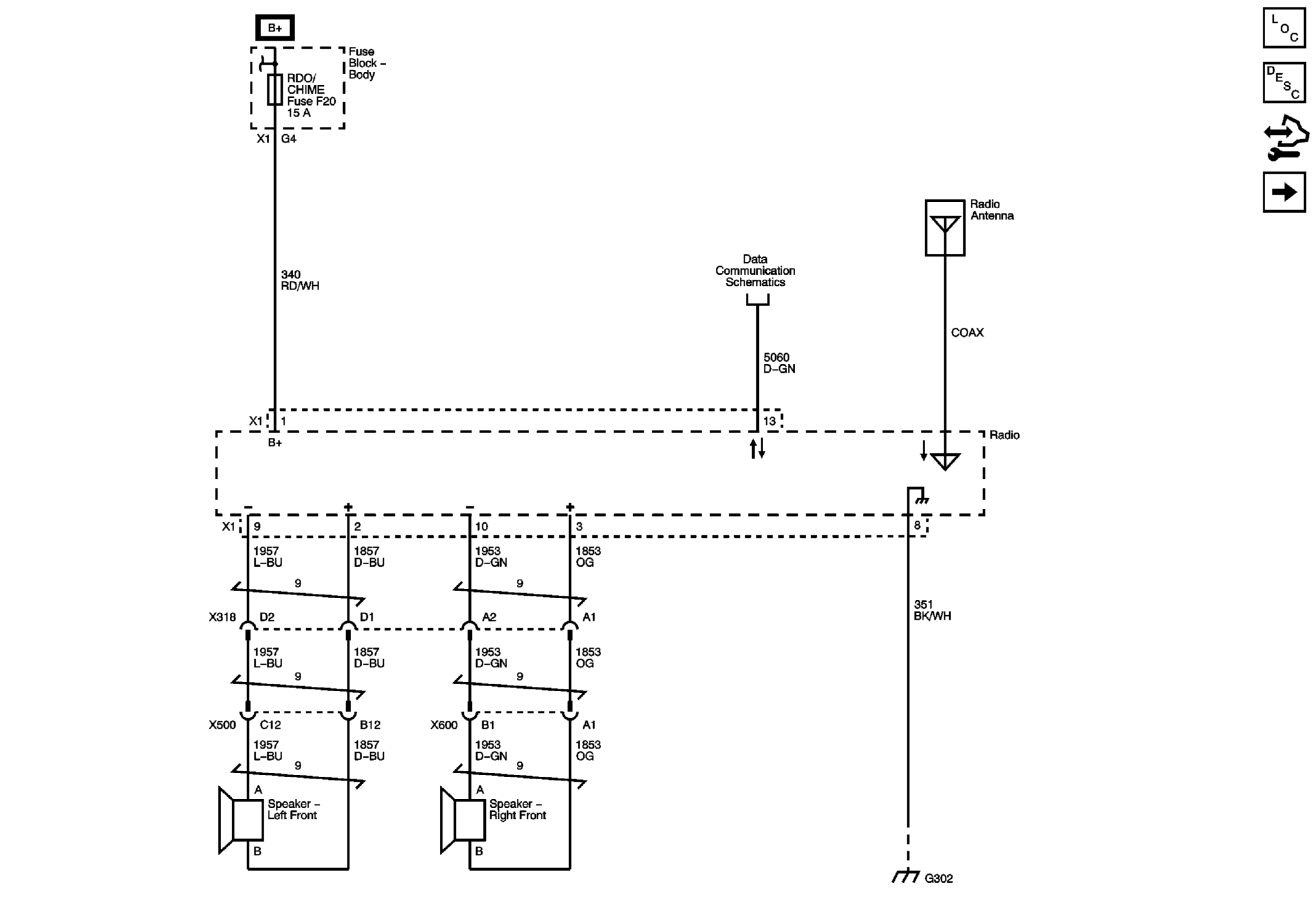

Fig 1: Power, Ground, Serial Data, Antenna & Front Speaker Outputs Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

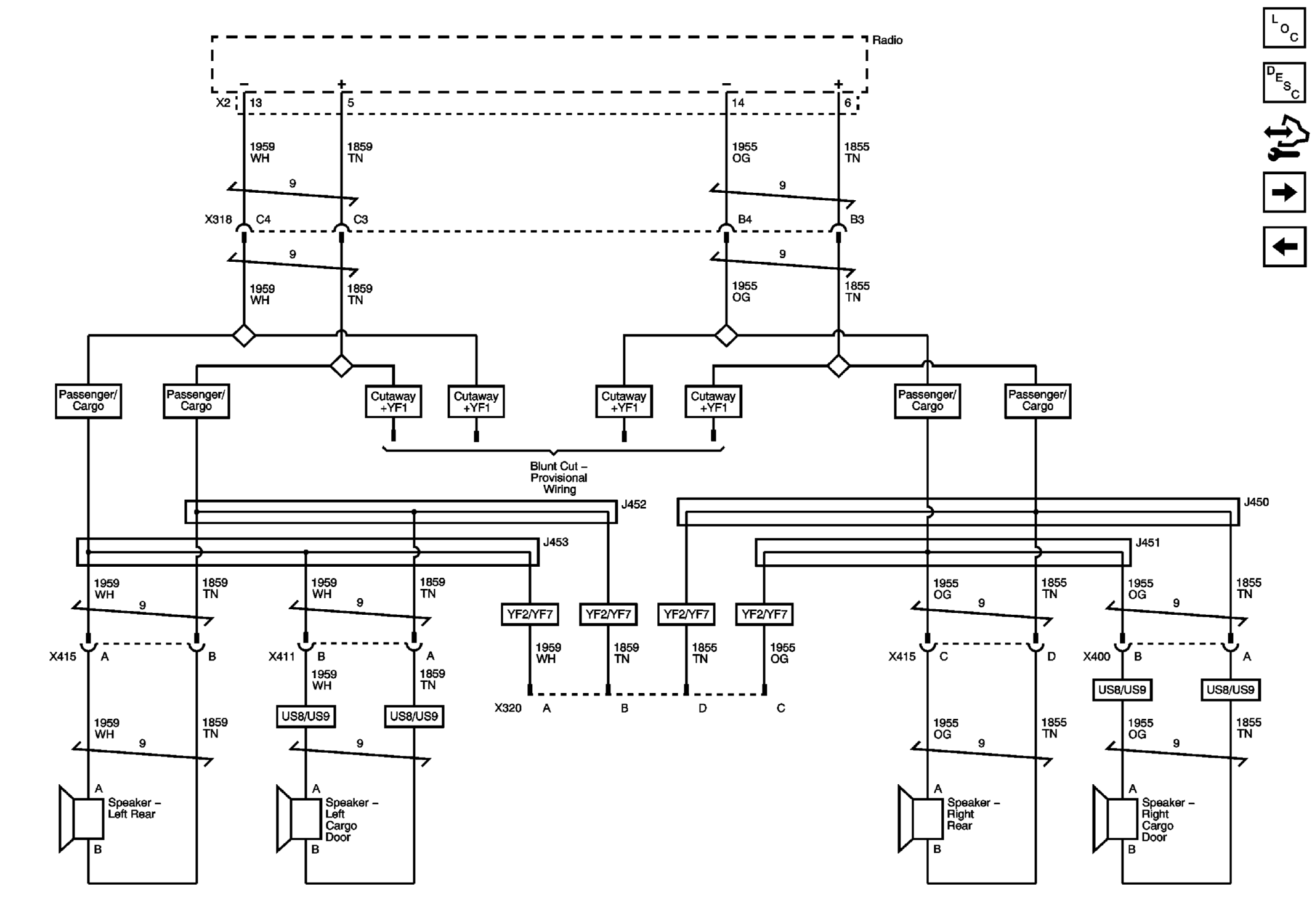

Fig 2: Rear Speaker Outputs Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

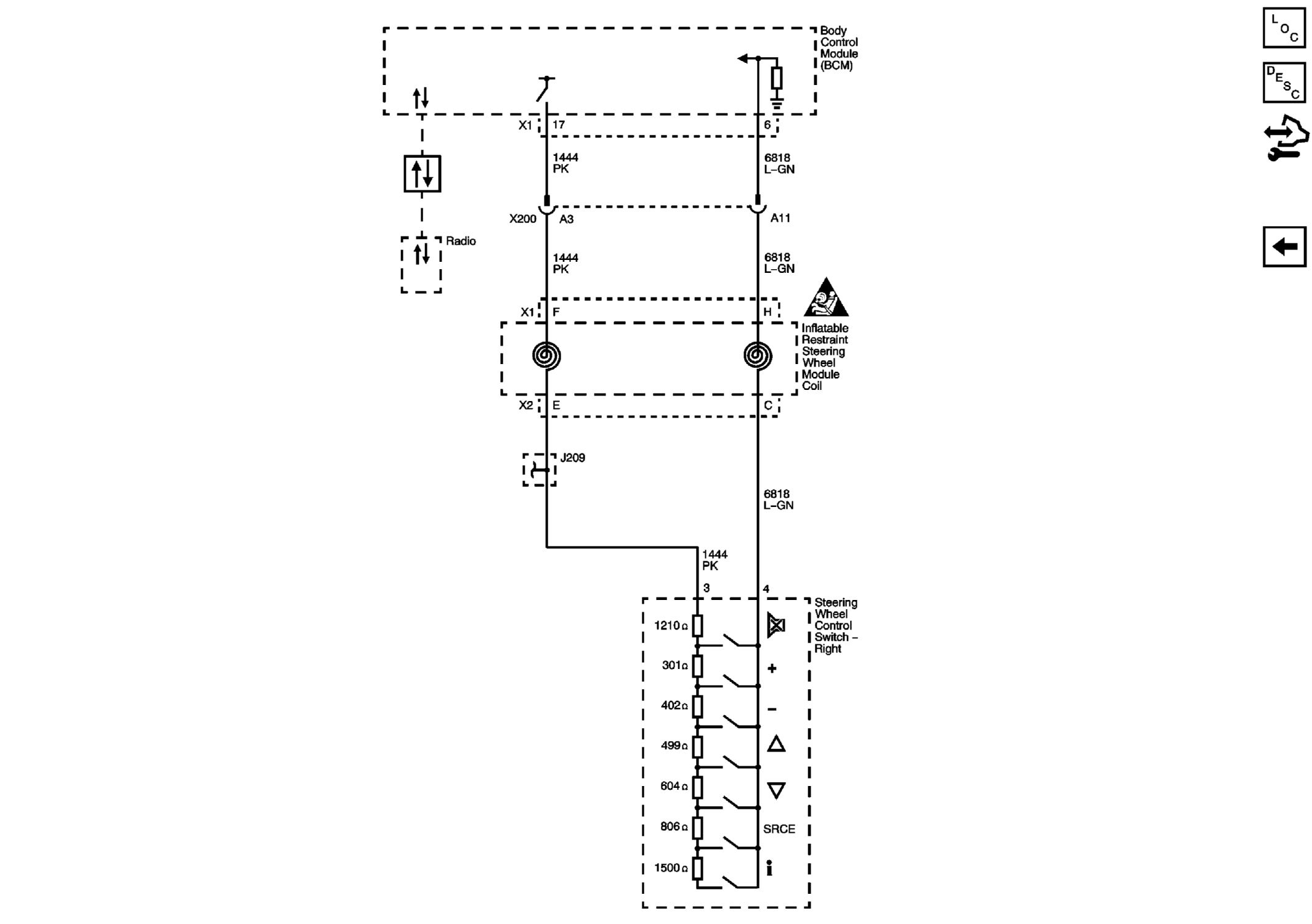

Fig 3: Steering Wheel Radio Redundant Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
