Balance Shaft Chain Guide: Service and Repair

Balancer Chain Guide Replacement

Removal Procedure




1. Remove the balance shaft drive chain. Refer to Balance Chain Replacement Service and Repair.

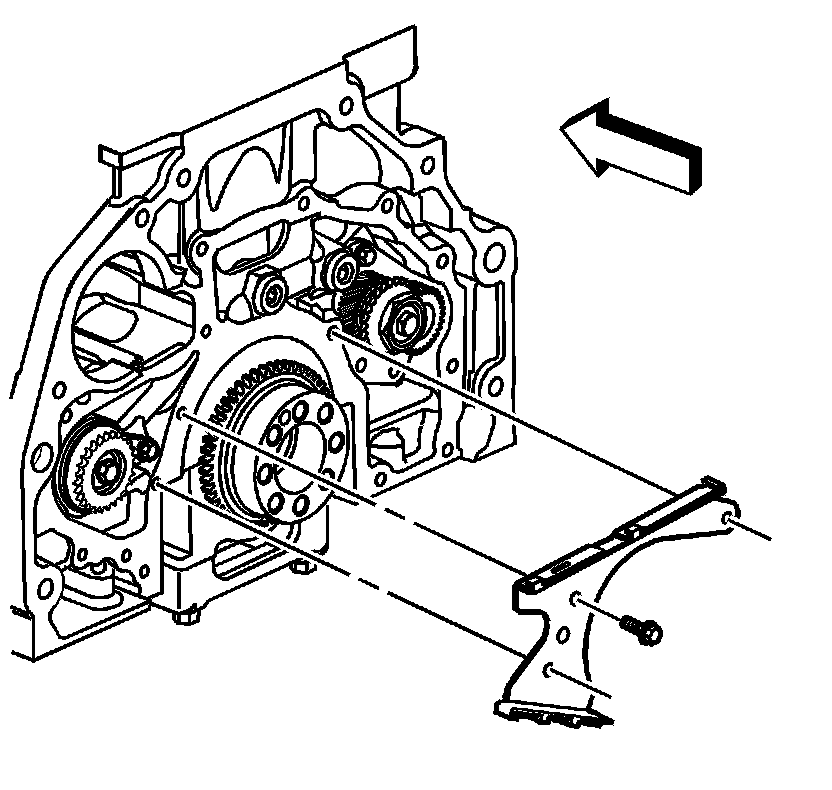

2. Remove the balance shaft chain guide bolts.
3. Remove the balance shaft chain guide.

Installation Procedure




1. Install the balance shaft chain guide.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the balance shaft chain guide bolts and tighten to 10 Nm (89 lb in).
3. Install the balance shaft drive chain. Refer to Balance Chain Replacement Service and Repair.
