Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

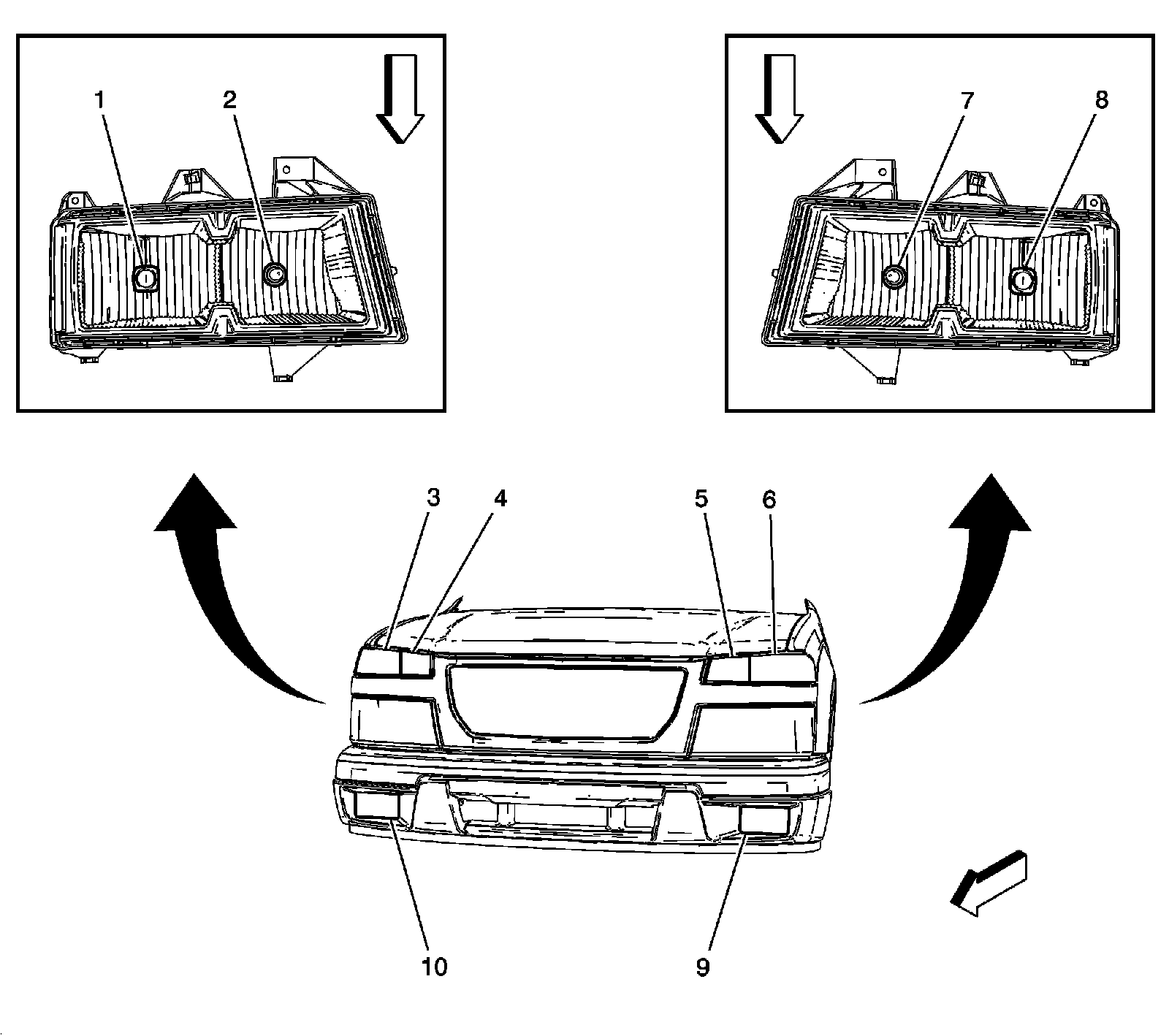

Front of Vehicle Components

1 - Headlamp - Right Low Beam
2 - Headlamp - Right High Beam
3 - Park/Turn Signal Lamp - Right
4 - Park Lamp - Right Front
5 - Park Lamp - Left Front
6 - Park/Turn Signal Lamp - Left
7 - Headlamp - Left High Beam
8 - Headlamp - Left Low Beam
9 - Fog Lamp - Left Front (T96)
10 - Fog Lamp - Right Front (T96)
