Top of Engine Components

Powertrain Component Views

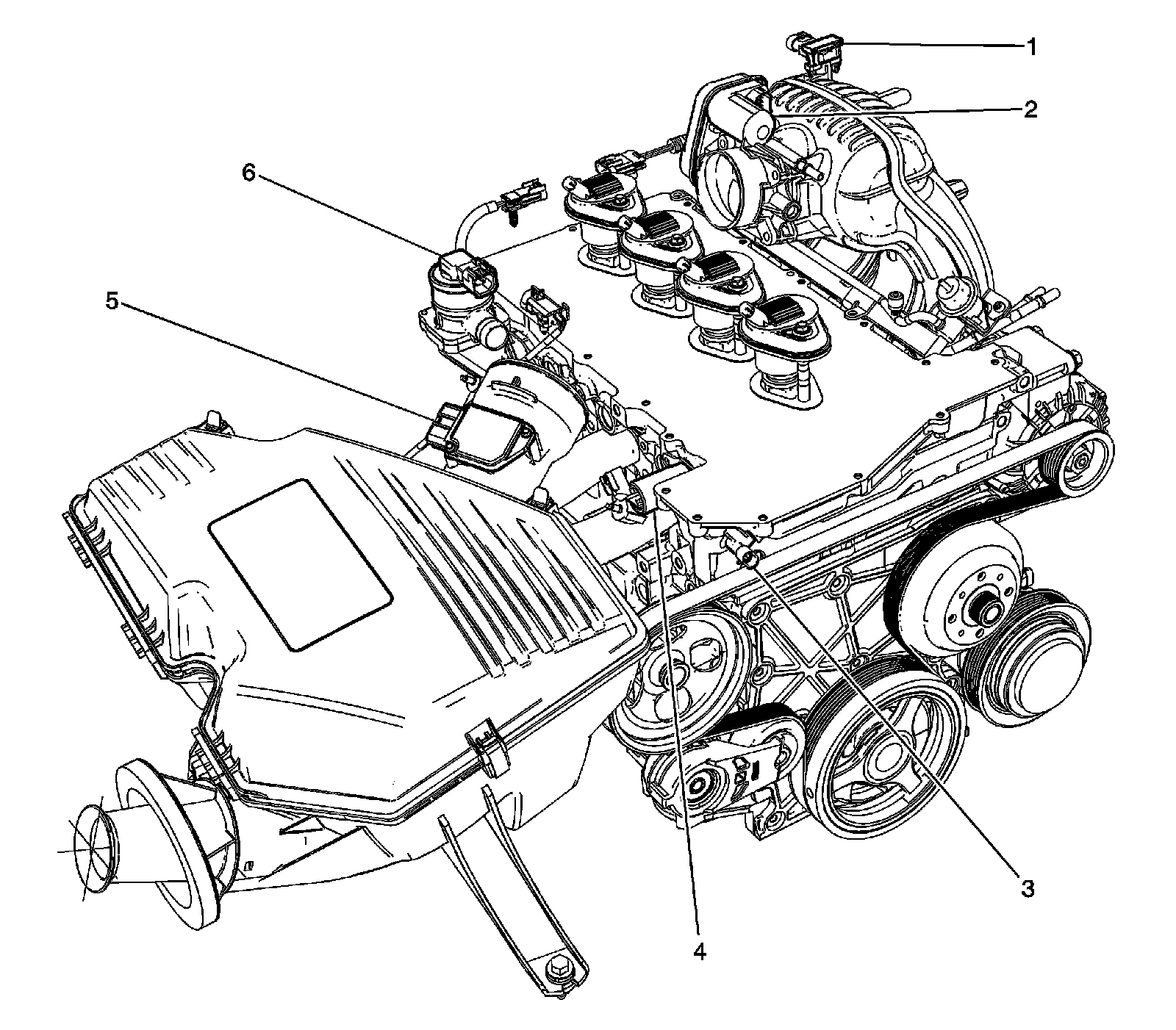

Top of Engine Components (LLV)

1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body
3 - Camshaft Position (CMP) Sensor - Exhaust
4 - Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust
5 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
6 - Secondary Air Injection Solenoid Valve (K18)
