Timing Component Alignment Marks: Locations

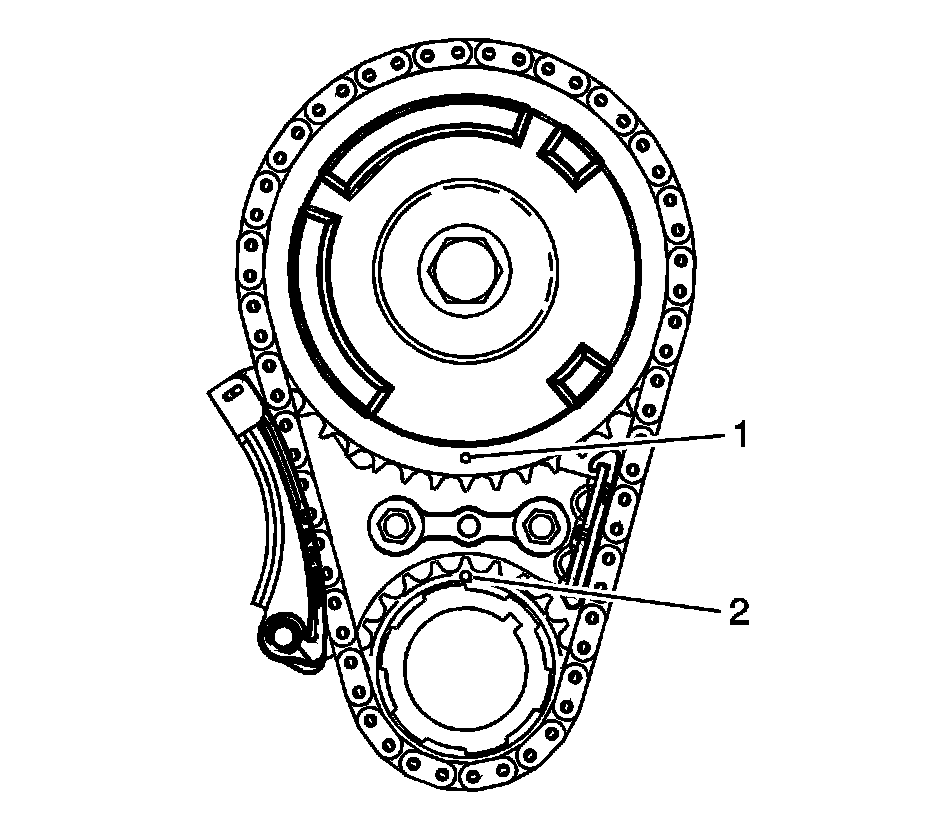

Locate the camshaft sprocket alignment mark (1) in the 6 o'clock position and the crankshaft sprocket (2) should be located in the 12 o'clock position.
Locate the camshaft sprocket alignment mark (1) in the 6 o'clock position and the crankshaft sprocket (2) should be located in the 12 o'clock position.
