Power, Ground, Serial Data and Amplifier Inputs (U66) Wiring Schematics

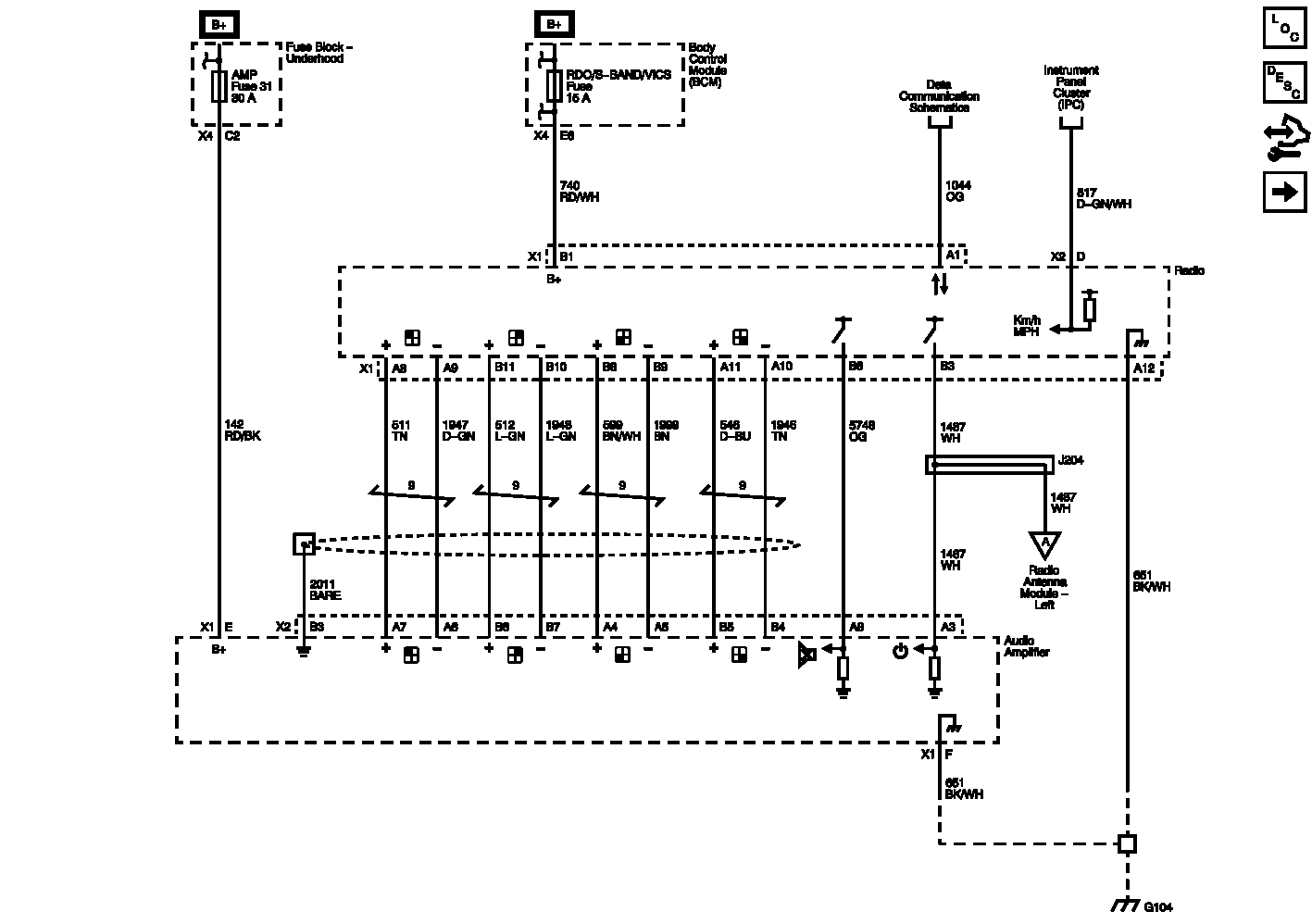

Fig 1: Power, Ground, Serial Data and Amplifier Inputs (U66) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
