Engine Compartment SPO Accessory and Theft Deterent (UA2) Components

Engine Compartment SPO Accessory and Theft Deterent (UA2) Components

Component Name Callout
Underhood Lamp (SPO Accessory) 1
Hood Ajar Switch (UA2) 2
Hood Release Handle 3

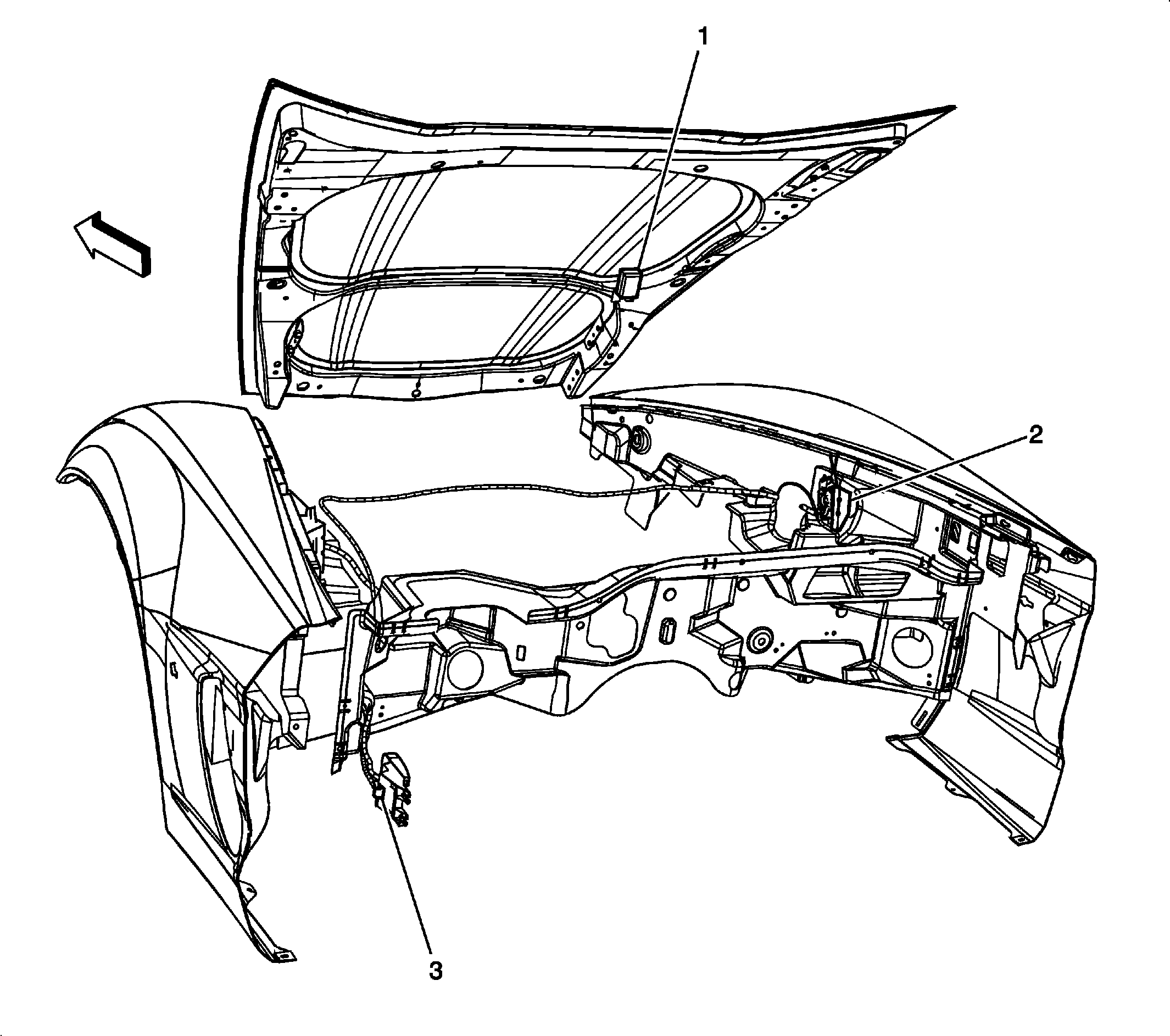

Fig 1: Identifying Engine Compartment Area Components
GM1488860Courtesy of GENERAL MOTORS COMPANY
