Folding Top Control Module and Position Switch Components (CM7)

Folding Top Control Module and Position Switch Components (CM7)

Component Name	Callout
Folding Top Closed Position Switch	1
Folding Top 5 Bow Lowered Switch	2
Folding Top 5 Bow Raised Switch	3
Folding Top Open Position Switch	4
Folding Top Control Module	5

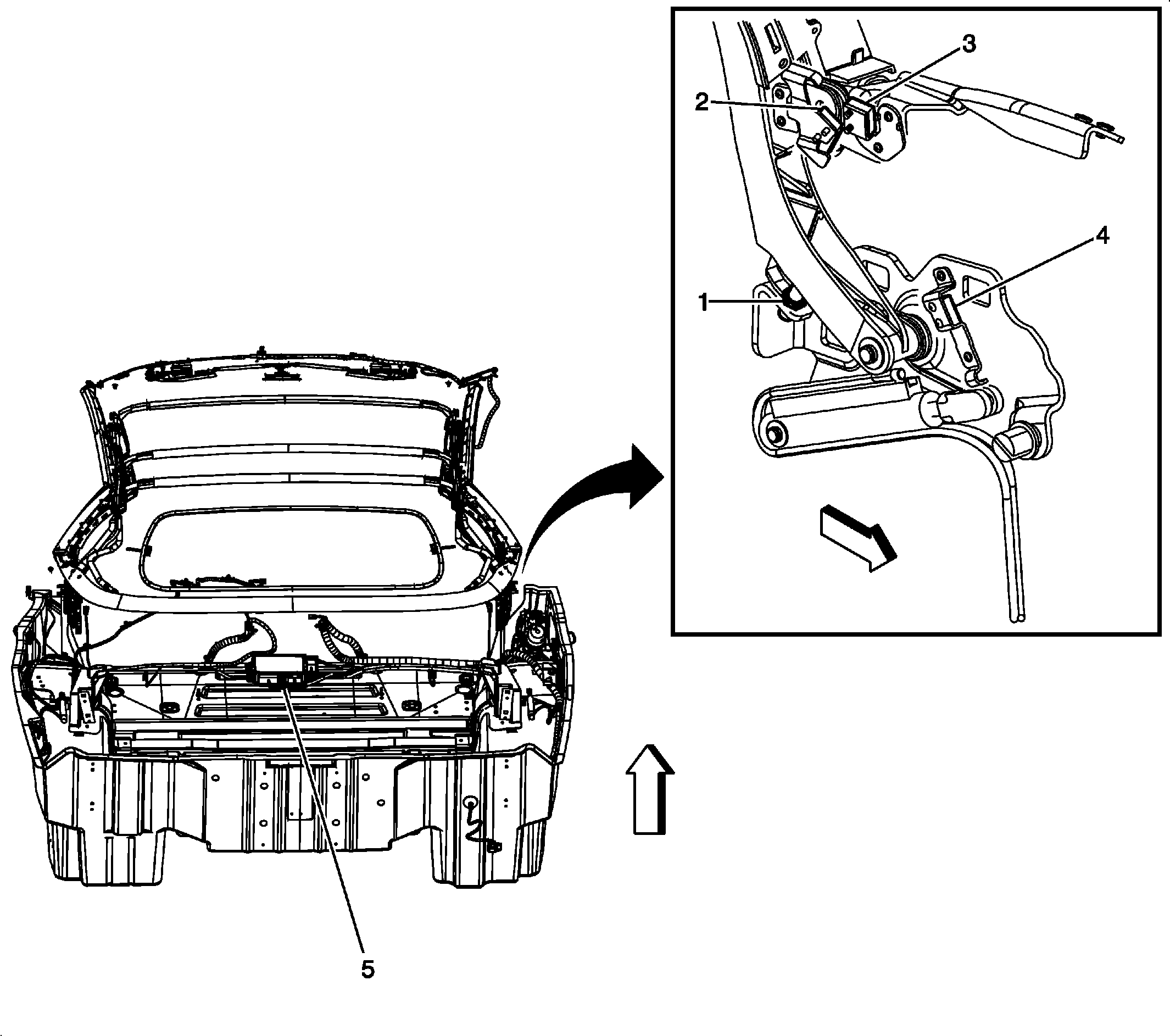

Fig 1: Right Side of Power Folding Top

Courtesy of GENERAL MOTORS COMPANY
