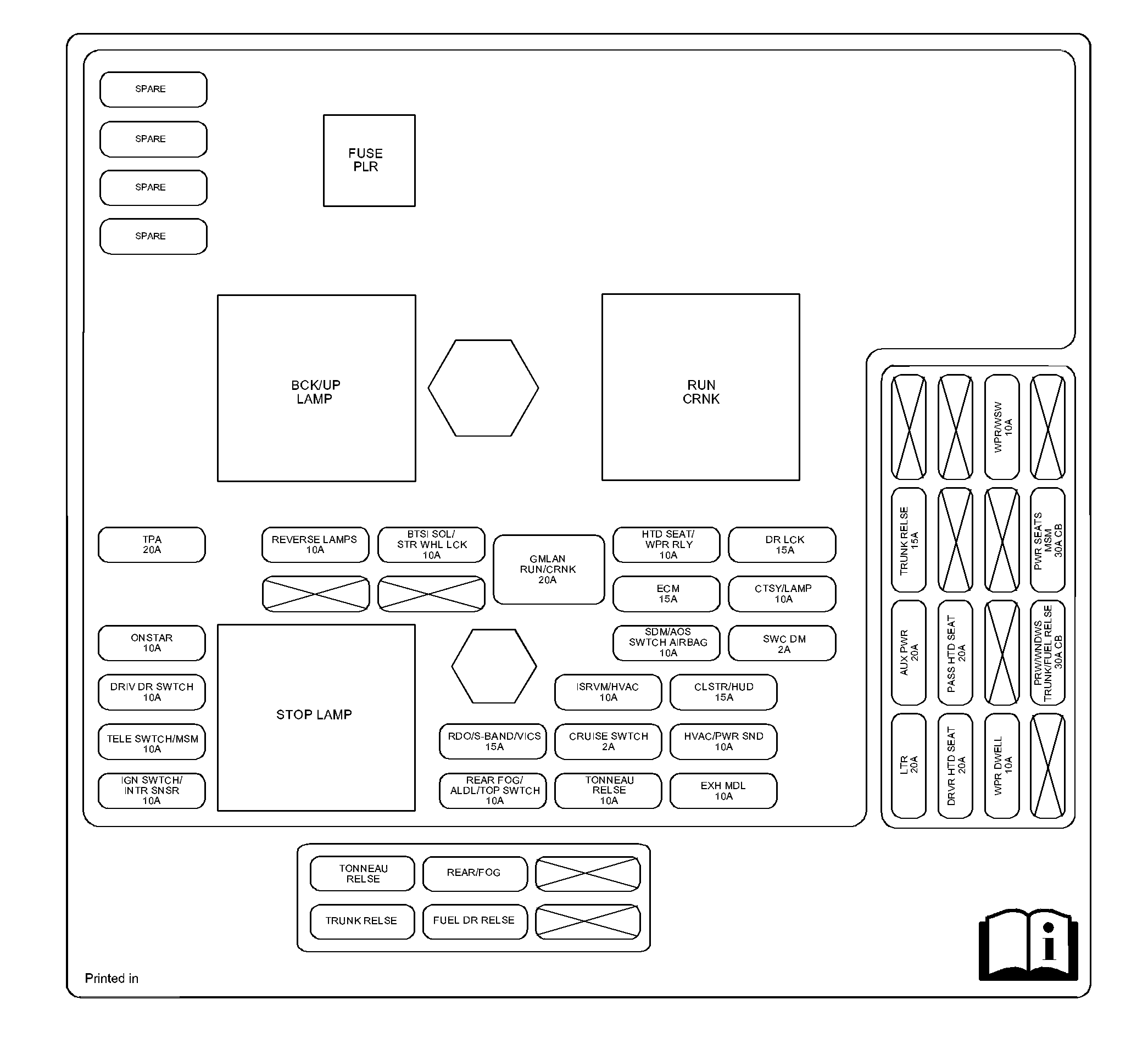

Body Control Module (BCM) Label
BODY CONTROL MODULE (BCM) FUSE AND RELAY IDENTIFICATION LEGEND
| Fuse And Relay Description | Rating | Circuits |
|---|---|---|
| AUX PWR Fuse | 20A | Accessory Power Outlet |
| BCK/UP LAMP Relay | - | REVERSE LAMPS Fuse |
| BTSI SOL/STR WHL LCK Fuse | 10A | Automatic Transmission Shift Lever (MYC) and Steering Column Lock Control Module (Japan MM6/MZ6, MAE) |
| CLSTR/HUD Fuse | 15A | Instrument Panel Cluster (IPC) and Head Up Display (HUD) (UV6) |
| CRUISE SWTCH Fuse | 2A | Clutch Pedal Position (CPP) Sensor (MM6/MZ6/MN6) and Turn Signal/Multifunction Switch |
| CTSY/LAMP Fuse | 10A | Body Control Module (BCM) |
| DRIV DR SWTCH Fuse | 10A | Window Switch - Driver |
| DR LCK Fuse | 15A | Body Control Module (BCM) |
| DRVR HTD SEAT Fuse | 20A | Heated Seat Module - Driver, Seat Lumbar Switch - Driver, and Seat Lumbar Pump/Control Module - Driver |
| ECM Fuse | 15A | Clutch Pedal Position (CPP) Sensor (MM6/MZ6/MN6), Engine Control Module (ECM) and Park/Neutral Position (PNP) Switch (MYC) |
| EXH MDL Fuse | 10A | Exhaust Flow Control Module (NPP/LS7/LS9) |
| FUEL DR RELSE Relay | - | Fuel Door Release Actuator |
| GMLAN RUN/CRNK Fuse | 20A | Fuse Block - Underhood TCM/TRANS and ABS/MRRTD Fuses, Automatic Transmission (MYC), Electronic Brake Control Module (EBCM), Electronic Suspension Control (ESC) Module (F55), and Transmission Control Module (TCM) (MYC) |
| HTD SEAT/WPR RLY Fuse | 10A | Fuse Block - Underhood Diode 1, Diode 2 and WIPER RUN/ACC Relay 42 |
| HVAC/PWR SND Fuse | 10A | HVAC Control Module and Theft Deterrent Alarm Siren (UA2) |
| IGN SWTCH/INTR SNSR Fuse | 10A | Body Control Module (BCM) and Intrusion Sensor (UA2) |
| ISRVM/HVAC Fuse | 10A | HVAC Control Module, Theft Deterrent Alarm Siren (UA2), Steering Column Lock Control Module, Air Temperature Sensor - Inside and Inside Rearview Mirror |
| LTR Fuse | 20A | Cigar Lighter |
| ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1) and Cellular Telephone Microphone |
| PASS HTD SEAT Fuse | 20A | Heated Seat Module - Passenger, Seat Lumbar Switch - Passenger, and Seat Lumbar Pump/Control Module - Passenger |
| PRW/WNDWS TRUNK/FUEL RELSE Circuit Breaker | 30A | Door Control Module - Driver, Door Control Module - Passenger, and FUEL DR RELSE Relay |
| PWR SEATS MSM Circuit Breaker | 30A | Memory Seat Module - Driver, Seat Adjuster Switch - Driver, and Seat Adjuster Switch - Passenger |
| RDO/S-BAND/VICS Fuse | 15A | Digital Radio Receiver (U2K), Traffic Information Receiver (U3Z), and Radio |
| REAR FOG/ALDL/TOP SWTCH Fuse | 10A | Folding Top Control Switch (CM7), Relay Block - I/P REAR/FOG Relay (T79), and Data Link Connector (DLC) |
| REAR/FOG Relay | - | Fog Lamp - Left Rear, and Fog Lamp - Right Rear |
| REVERSE LAMPS Fuse | 10A | Backup Lamp - Left/Right and Inside Rearview Mirror |
| RUN CRNK Relay | - | CRUISE SW Fuse, ISRVM/HVAC Fuse, HTD SEAT/WPR RELAYS Fuse, GM LAN RUN/CRNK Fuse, ECM Fuse, and SDM/PSIR SW AIRBAG Fuse |
| SDM/AOS SWTCH AIRBAG Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) and Inflatable Restraint Front Passenger Presence System (PPS) Module |
| STOP LAMP Relay | - | Center High Mounted Stop Lamp (CHMSL), Body Control Module (BCM) Logic, and Tail/Stop Lamp - Left/Right (T79) |
| SWC DM Fuse | 2A | Steering Wheel Control Switch - Right (UK3) |
| TPA Fuse | 20A | Folding Top Cover Pulldown Actuator (CM7) |
| TELE SWTCH/MSM Fuse | 10A | Steering Wheel Tilt/Telescope Switch (N37/NP7), Memory Seat Module - Driver (AAB) and Seat Adjuster Switch - Driver |
| TONNEAU RELSE Fuse | 10A | Relay Block - I/P TONNEAU RELSE Relay |
| TONNEAU RELSE Relay | - | Folding Top Stowage Compartment Lid Latch Release Actuator |
| TRUNK RELSE Fuse | 15A | TRUNK RELSE Relay (CO5/CM7), Rear Compartment Lid Pulldown Actuator (without CO5/CM7) |
| TRUNK RELSE Relay | - | Rear Compartment Lid Latch |
| WPR DWELL Fuse | 10A | Windshield Wiper Motor Park Switch |
| WPR/WSW Fuse | 10A | Windshield Wiper/Washer Switch |
| Printed Circuit Board (PCB) Relays - Not Serviceable | ||
| DRIVER DOOR UNLATCH PCB Relay | - | Door Latch - Driver |
| INADVERTENT LOAD CONTROL PCB Relay | - | Courtesy Lamp - Left Front, Courtesy Lamp - Right Front, Garage Door Opener, I/P Compartment Lamp, Courtesy Lamp - Left Rear, Courtesy Lamp - Right Rear, Sunshade - Left, and Sunshade - Right |
| PASSENGER DOOR UNLATCH PCB Relay | - | Door Latch - Passenger |
