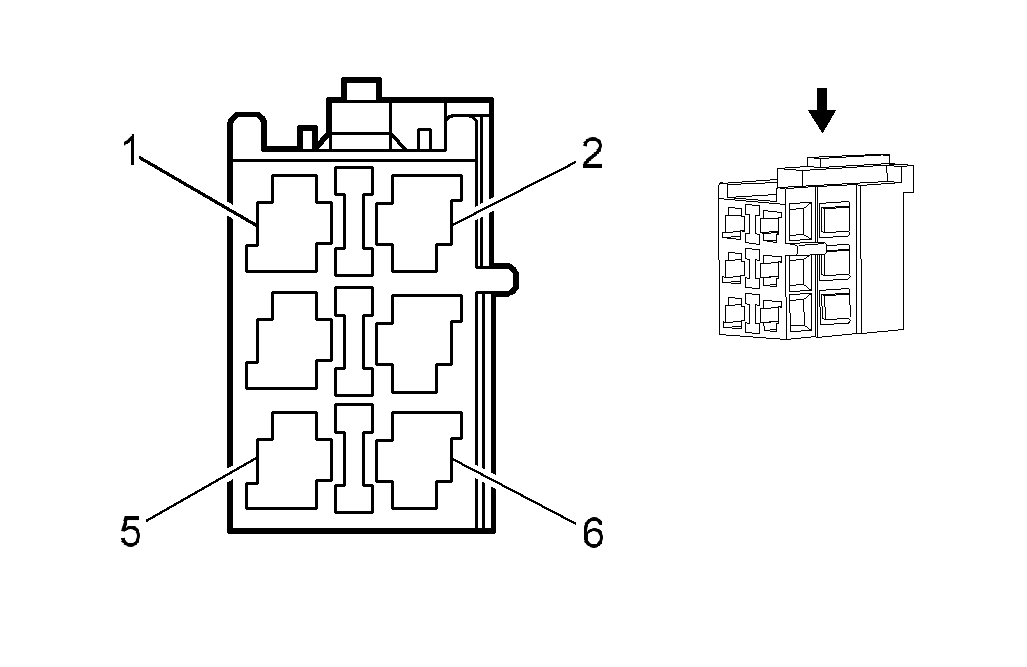

Fuel Pump Flow Control Module Relay X1 (LS9)
 Courtesy of
|
Connector Part Information
- Harness Type: Instrument Panel Body
- OEM Connector: 772-716-501
- Service Connector: 13505275
- Description: 6-Way F (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 13505275
- Release Tool: J-38125-556
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Fuel Pump Flow Control Module Relay X1 (LS9)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
3.0 D-GN |
999 |
Phase 3 |
| 3 |
3.0 RD/WH |
1940 |
Battery Positive Voltage |
| 4 |
3.0 L-BU |
998 |
Phase 2 |
| 5 |
3.0 BK |
650 |
Ground |
| 6 |
3.0 RD |
997 |
Phase 1 |
