Installation Procedure
- Using a wire brush, clean the contact area of the left and right mufflers to the intermediate pipe.
- Apply a small amount of lubricant on the intermediate pipes and the left and right mufflers
- Position the intermediate pipe on the jack stands.
- Raise the intermediate pipe and install the intermediate pipe.
- Install the exhaust pipe seal.

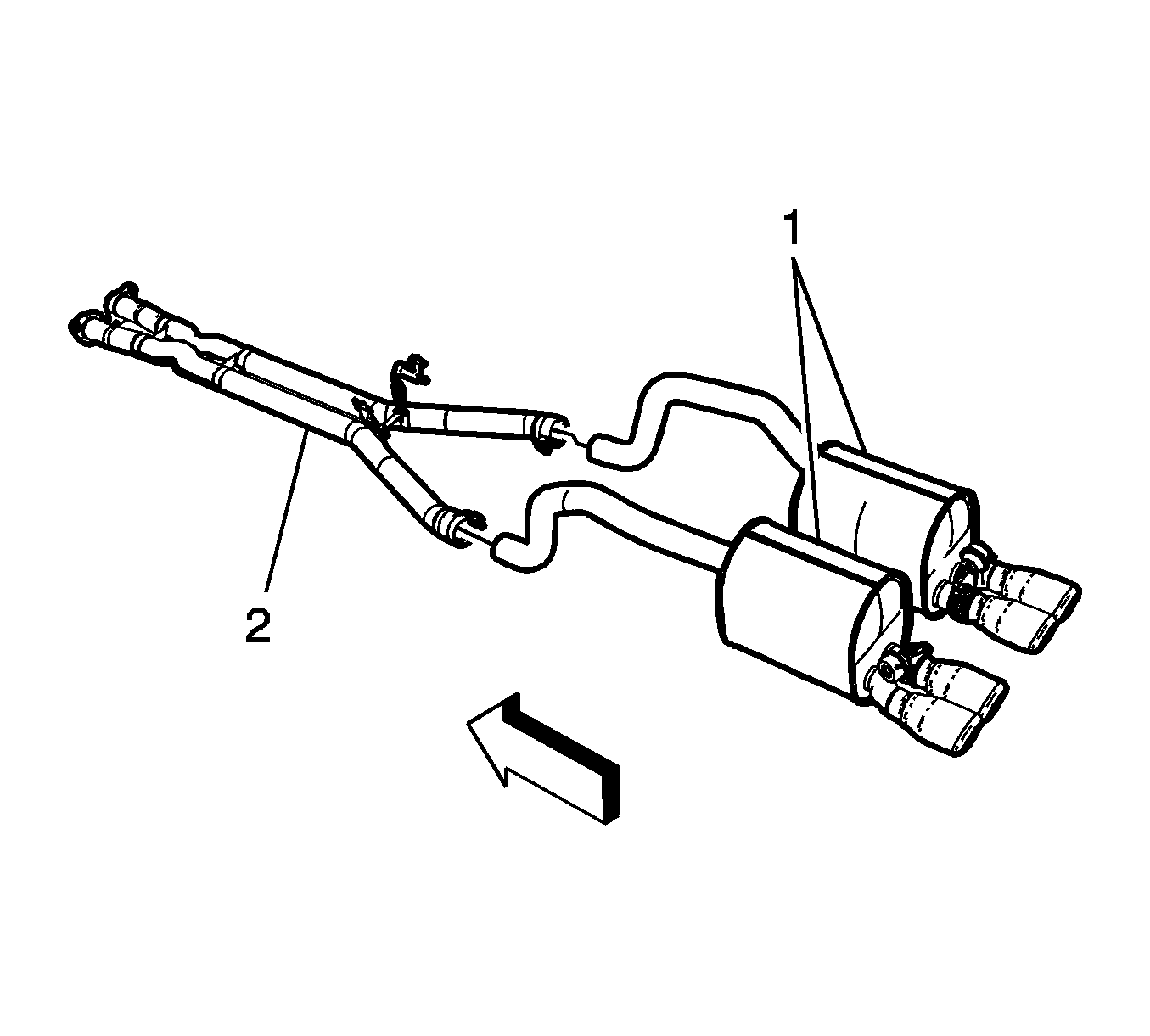

- Install the intermediate pipe (2) to the exhaust mufflers (1).
- Install the retaining nuts (2).
- Remove the adjustable jack stands.

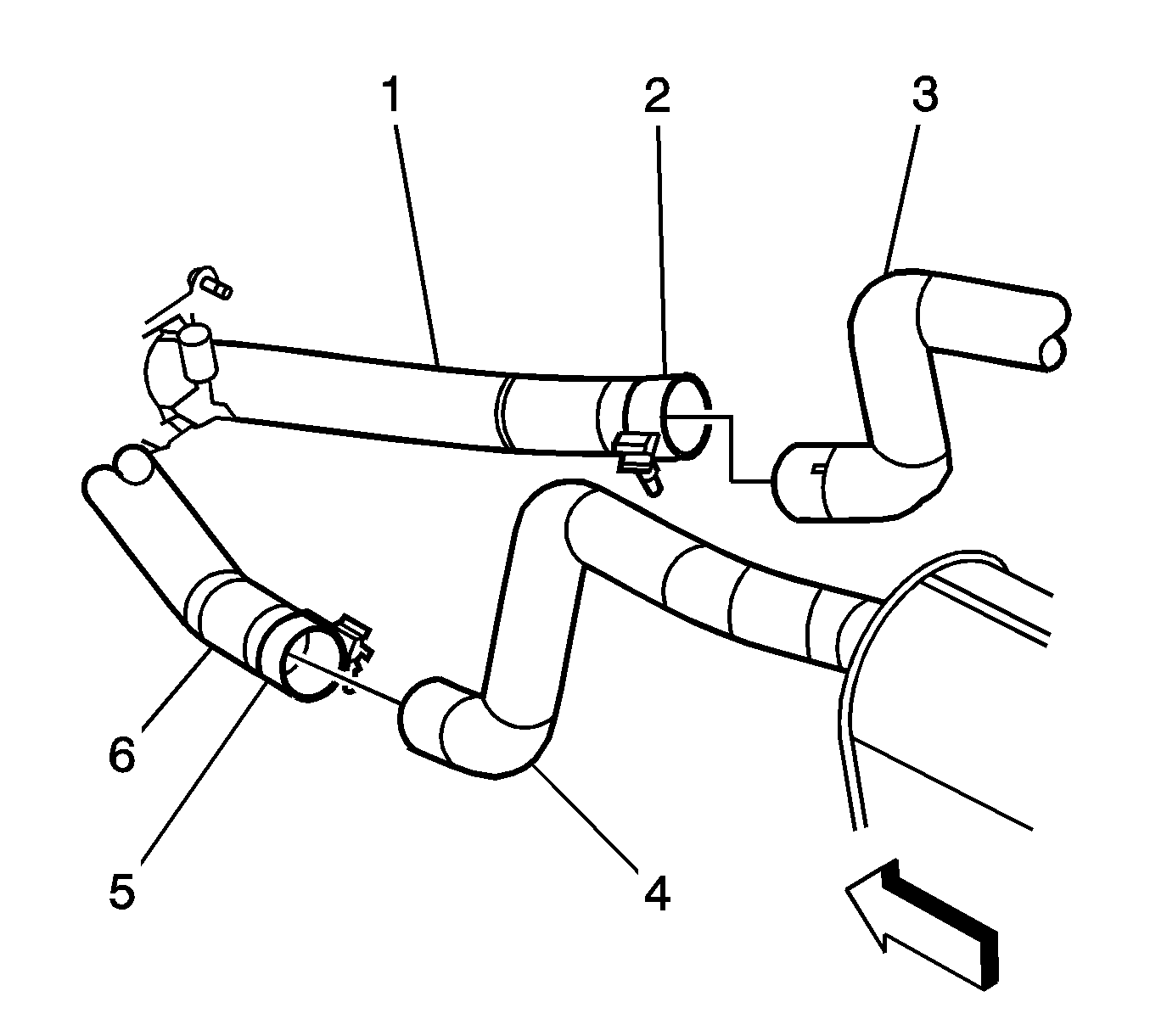

- Tighten the exhaust muffler clamps (2) and (5).
Tighten
Tighten the exhaust clamps bolts to 44 N.m (32 lb ft).
- Tighten the intermediate pipe to catalytic converter pipe nuts and bolts.
Tighten
Tighten the intermediate pipe-to-catalytic converter pipe nuts and bolts to 25 N.m (18 lb ft).

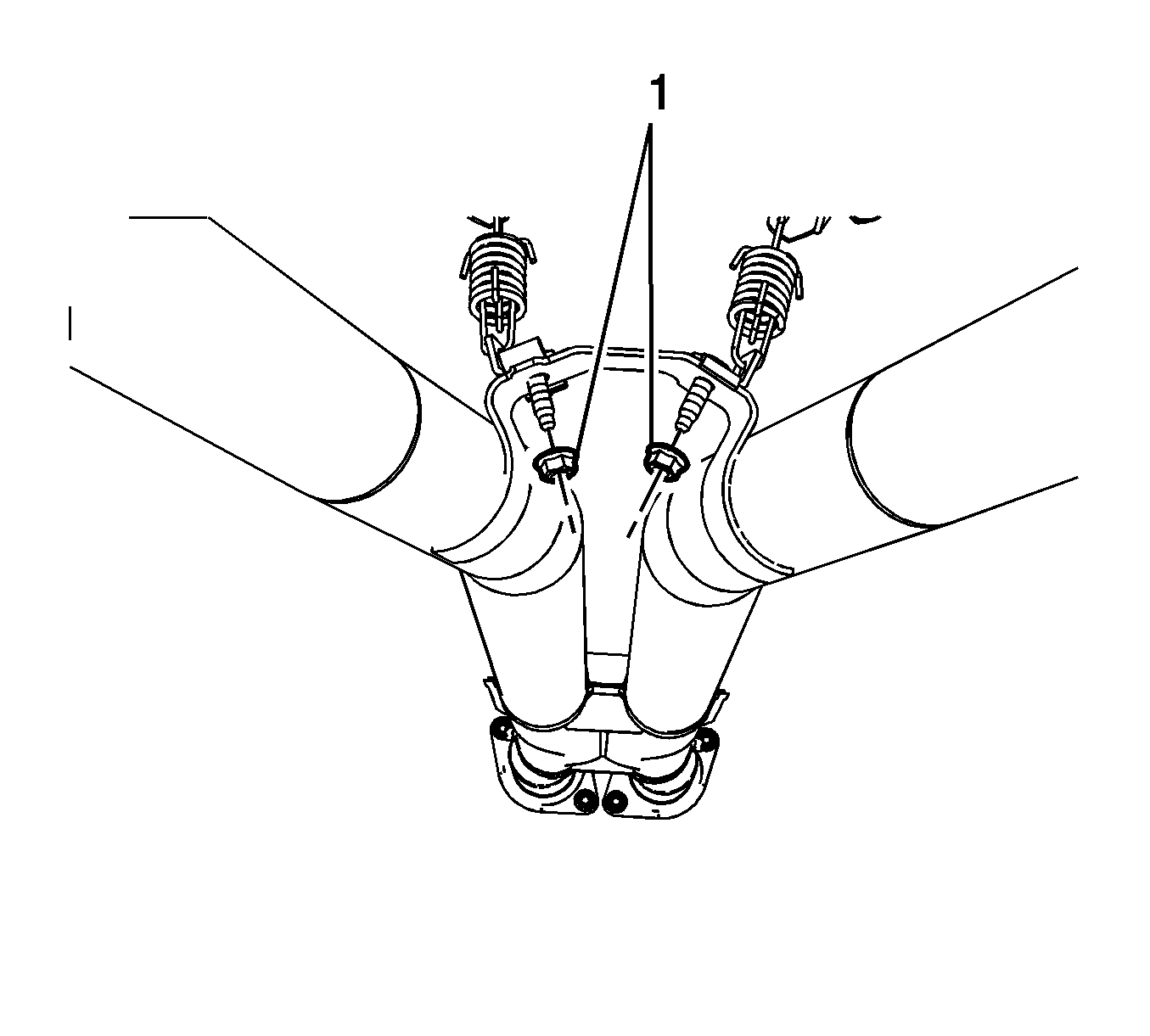

- Tighten the exhaust pipe hanger lower nuts (1).
Tighten
Tighten the exhaust pipe hanger nuts to 14 N.m (10 lb ft).
- Lower the vehicle.
Refer to Protective Goggles and Glove Warning .
If reinstalling the original intermediate pipe, the tail pipe/muffler band clips must be replaced. Mark the position of the band clips on the intermediate exhaust pipe. Remove the band clips by grinding the welds. Install new band clips on the intermediate pipe. Position the new band clips using the alignment mark created previously.
When install the retaining nuts, hand tighten them. This will allow the proper alignment of the exhaust system for the final assembly procedure.
Refer to Fastener Caution .
