Radio Front Side Door Speaker Replacement
Radio Front Side Door Speaker Replacement

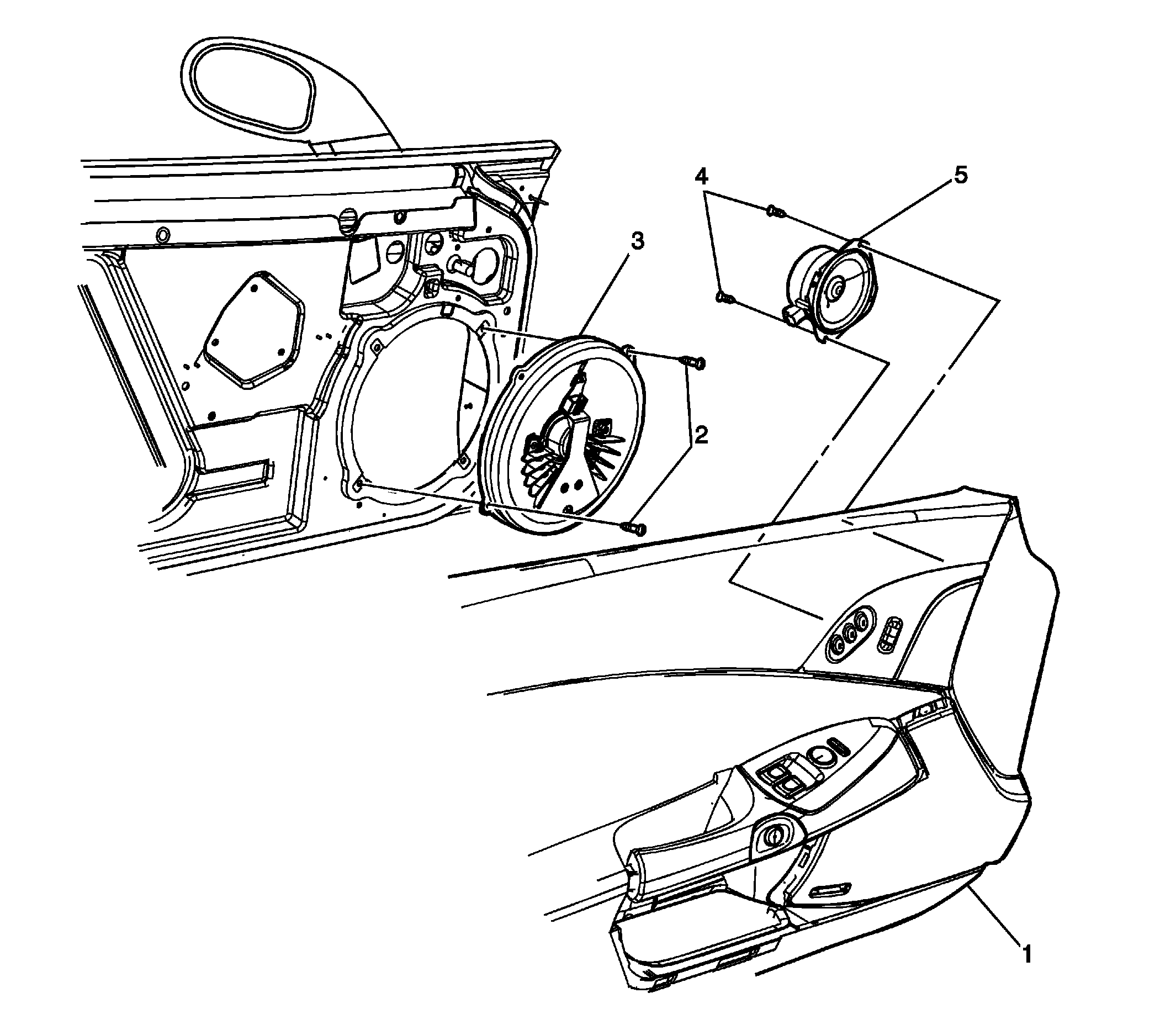

| Callout | Component Name |
|---|---|
| 1 | Door Trim Panel Refer to Front Side Door Trim Panel Replacement - Left Side , or Front Side Door Trim Panel Replacement - Right Side . TIP: Left side shown, right side similar. |
| 2 | Door Speaker Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 3 | Door Lower Speaker |
| 4 | Door Speaker Screw (Qty: 4) Tighten 2 N.m (18 lb in) |
| 5 | Door Upper Speaker |
