Radio Front Speaker Replacement

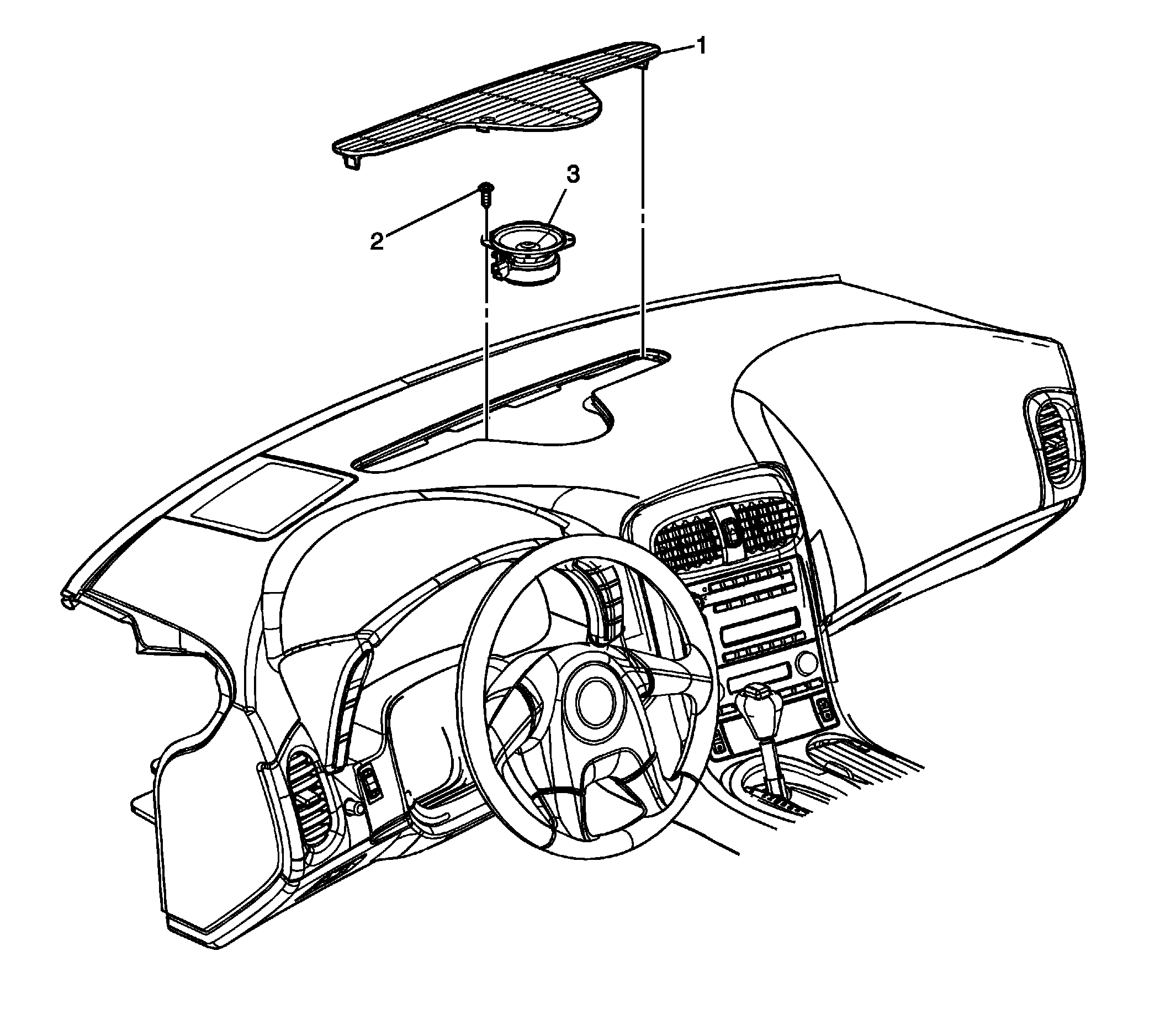

Fig 1: View Of Front Speaker Grille & Bolts
GM1494015Courtesy of GENERAL MOTORS COMPANY
Radio Front Speaker Replacement

Callout Component Name
1 Defroster Grill
Refer to Defroster Grille Replacement .
2 Speaker Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
3 Speaker Assembly
