Power, Ground, Serial Data, Antenna, and User Inputs Wiring Schematics

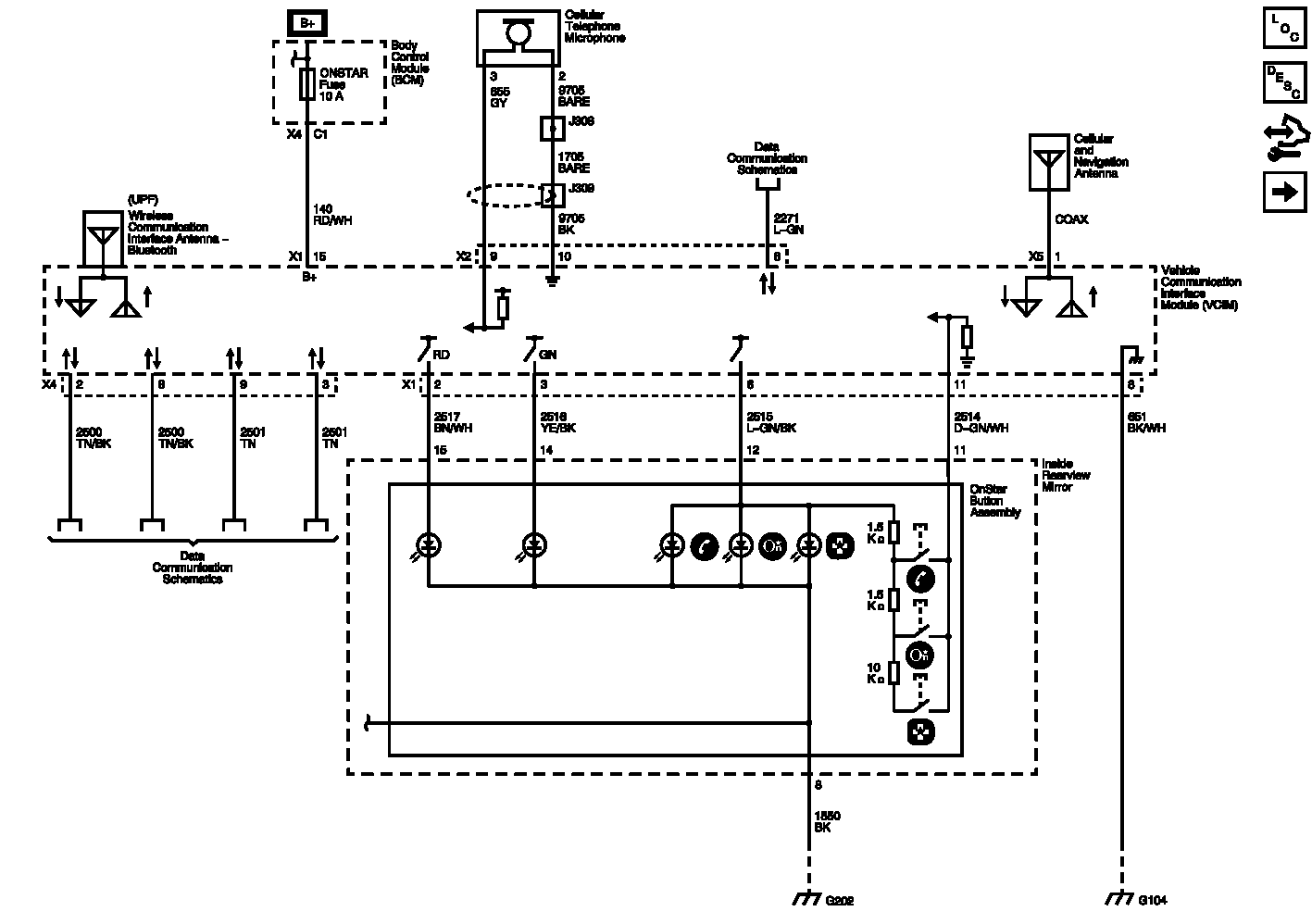

Fig 1: Power, Ground, Serial Data, Antenna, and User Inputs Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
