Satellite Radio (U2K) Wiring Schematics

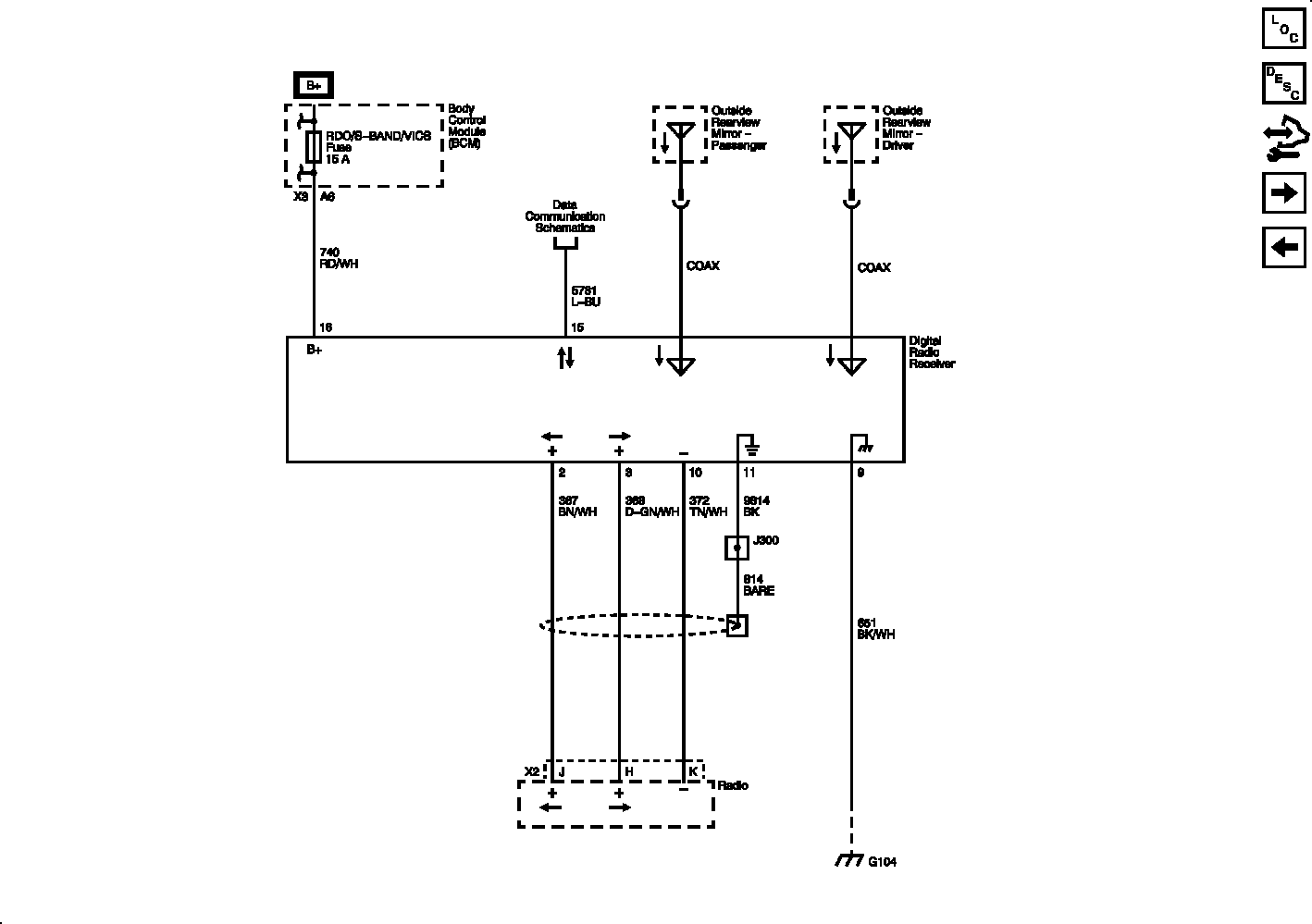

Fig 1: Satellite Radio (U2K) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
