Removal Procedure

  1. Remove the right front instrument panel (I/P) closeout panel. Refer to Instrument Panel Insulator Panel Replacement .
  2. Remove the right front carpet retainer. Refer to Carpet Retainer Replacement .

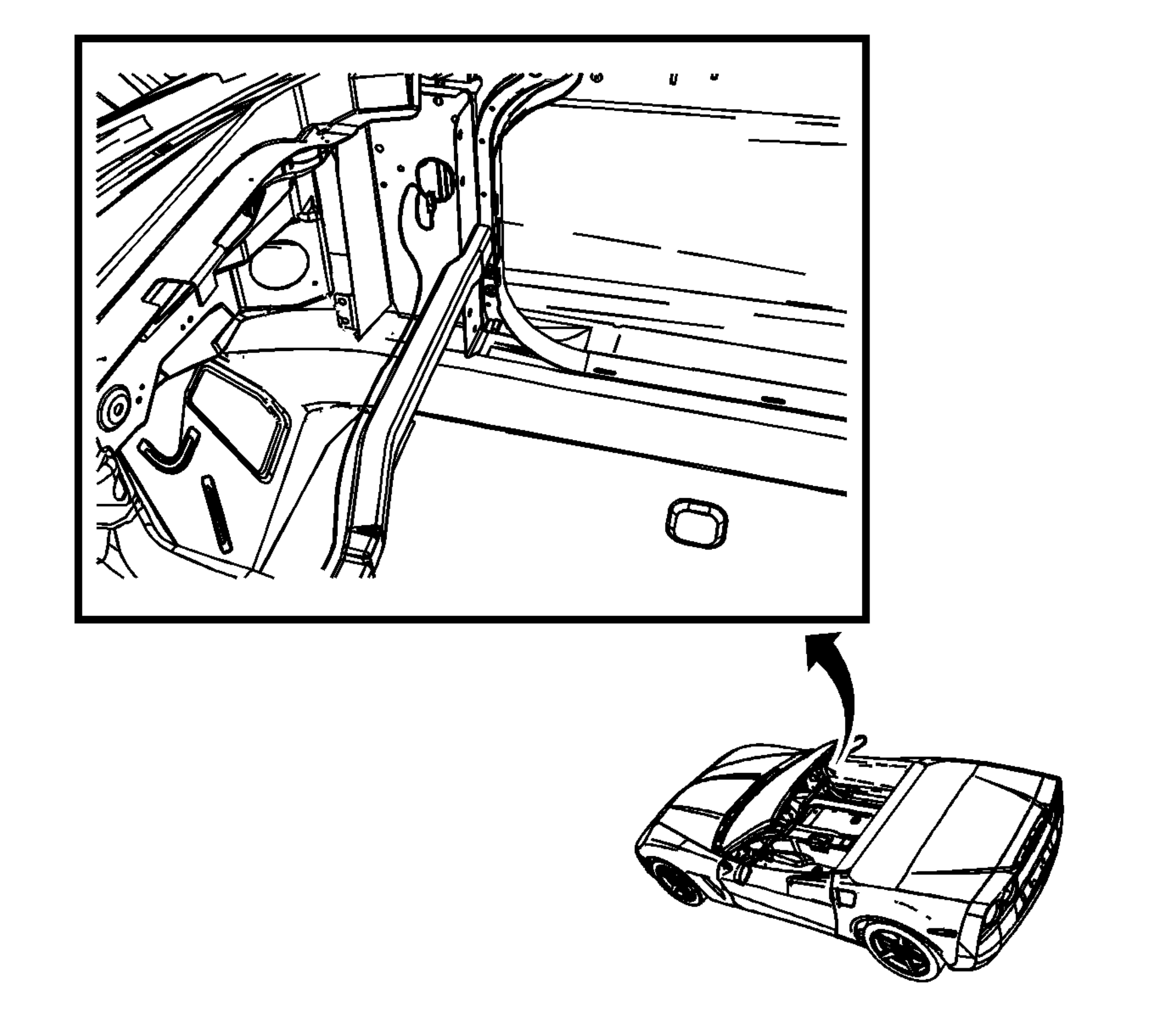

    3. Fig 1: View Of Digital Radio Antenna Cable
    GM1718604Courtesy of GENERAL MOTORS COMPANY
  3. Locate the plastic cover on the pillar to door pass-through. Pull it back and disconnect the digital antenna cable connector and cut it off on the body side of the harness.
  4. Loosen the left side door mechanical release lever and set it aside. Refer to Door Inside Manual Release Actuator Replacement .
  5. Remove the left lock pillar trim. Refer to Body Lock Pillar Trim Panel Replacement .
  6. Remove the left front carpet retainer. Refer to Carpet Retainer Replacement .
  7. Remove the left front I/P closeout panel. Refer to Instrument Panel Insulator Panel Replacement .

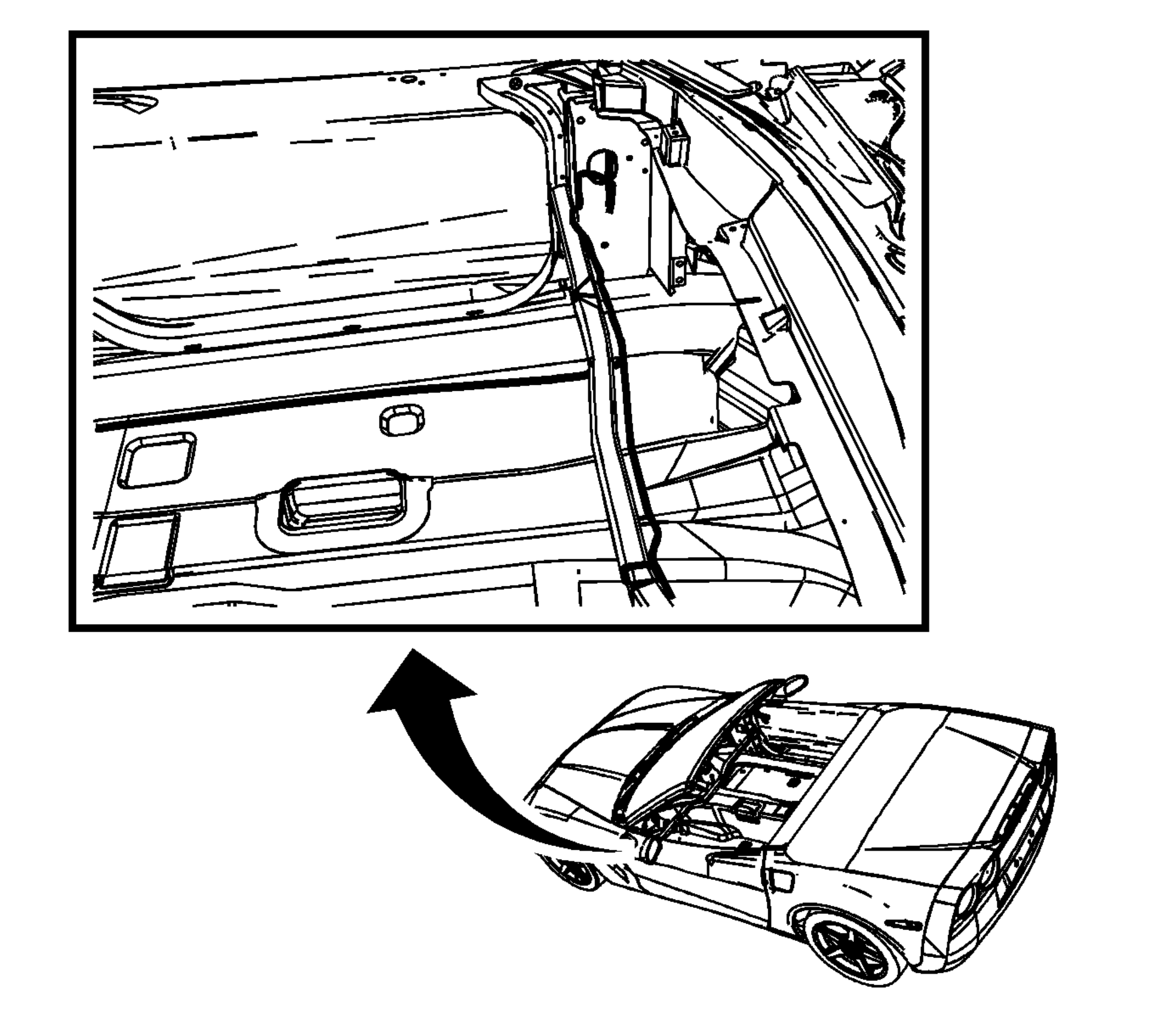

    8. Fig 2: View Of Digital Radio Antenna Cable
    GM1718608Courtesy of GENERAL MOTORS COMPANY
  8. Locate the plastic cover on the pillar to door pass-through. Pull it back and disconnect the digital antenna cable connector and cut it off on the body side of the harness.
  9. Remove the folding top storage compartment lid extension. Refer to Folding Top Stowage Compartment Extension Outer Panel Replacement .

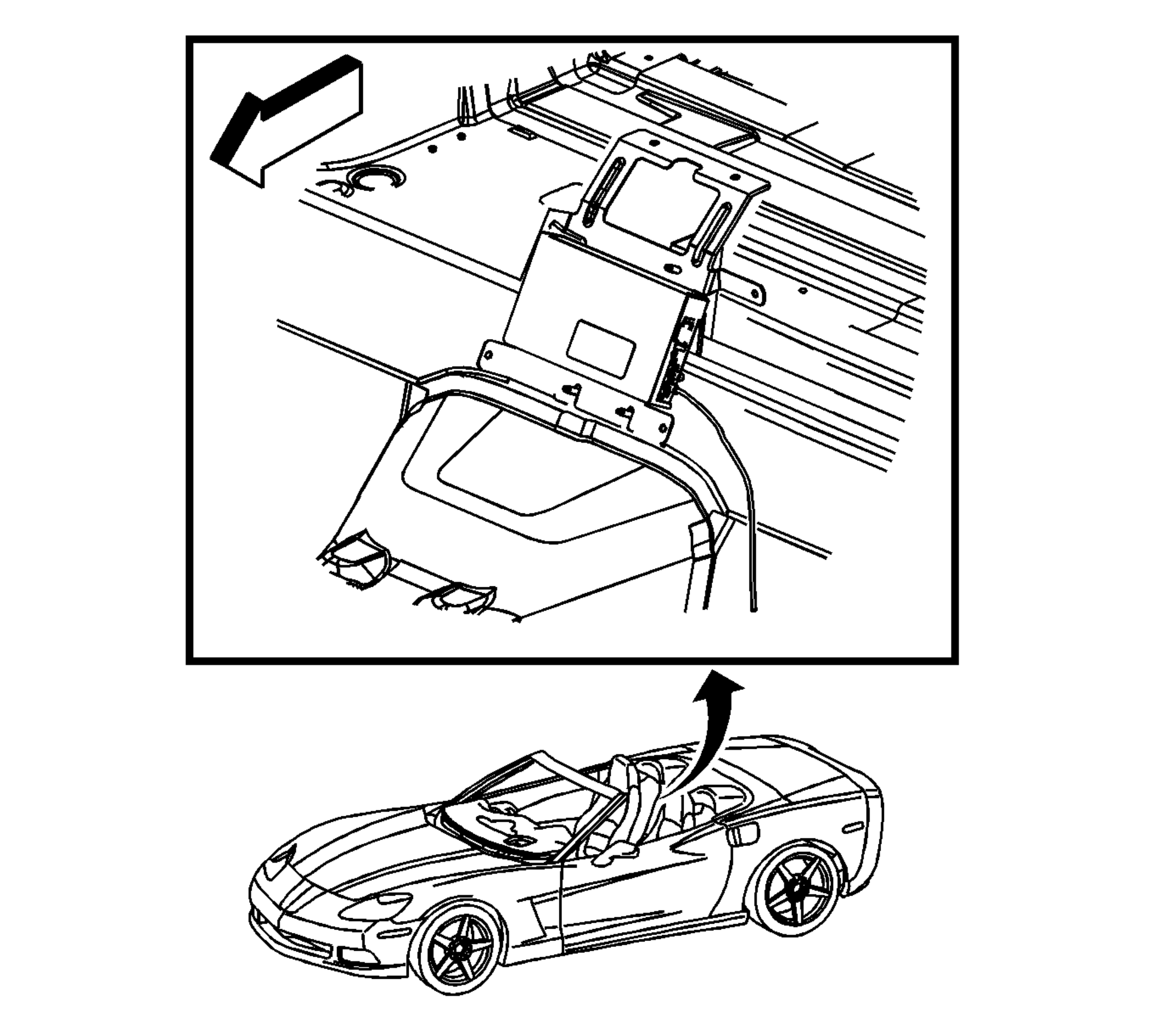

    10. Fig 3: View Of Digital Radio Antenna Cable
    GM1718612Courtesy of GENERAL MOTORS COMPANY
  10. Disconnect digital antenna cable connectors from digital receiver and cut off on body side of harness.
