Digital Radio Receiver Replacement (Convertible)
Digital Radio Receiver Replacement (Convertible)

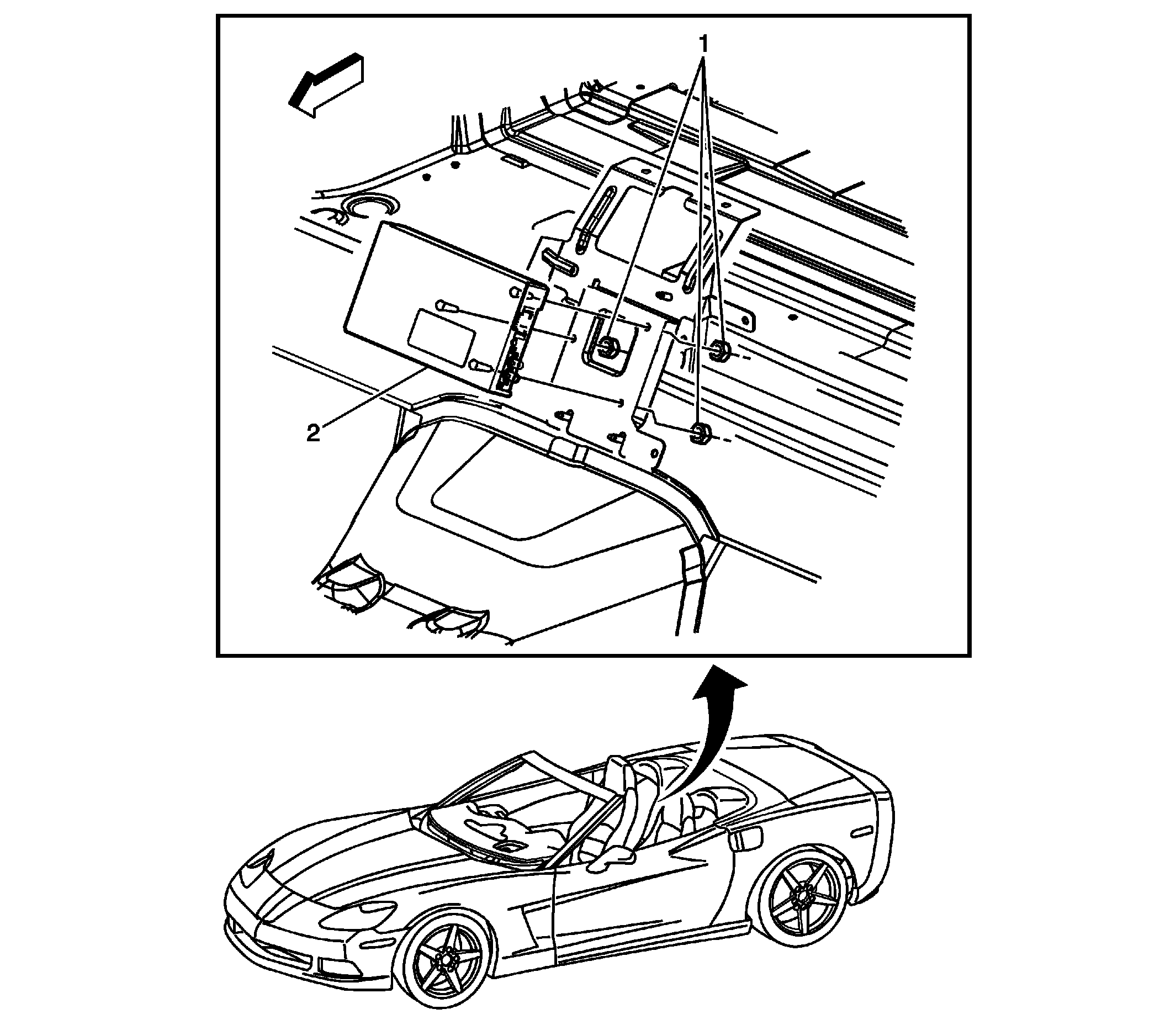

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the compartment lid extension. Refer to Folding Top Stowage Compartment Extension Outer Panel Replacement . |
|
| 1 | Digital Radio Receiver Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Digital Radio Receiver TIP: Disconnect the electrical connectors. Refer to Control Module References for programming and setup information. |
