Removal Procedure

  1. Remove the instrument panel (I/P) Assembly. Refer to Instrument Panel Assembly Replacement .

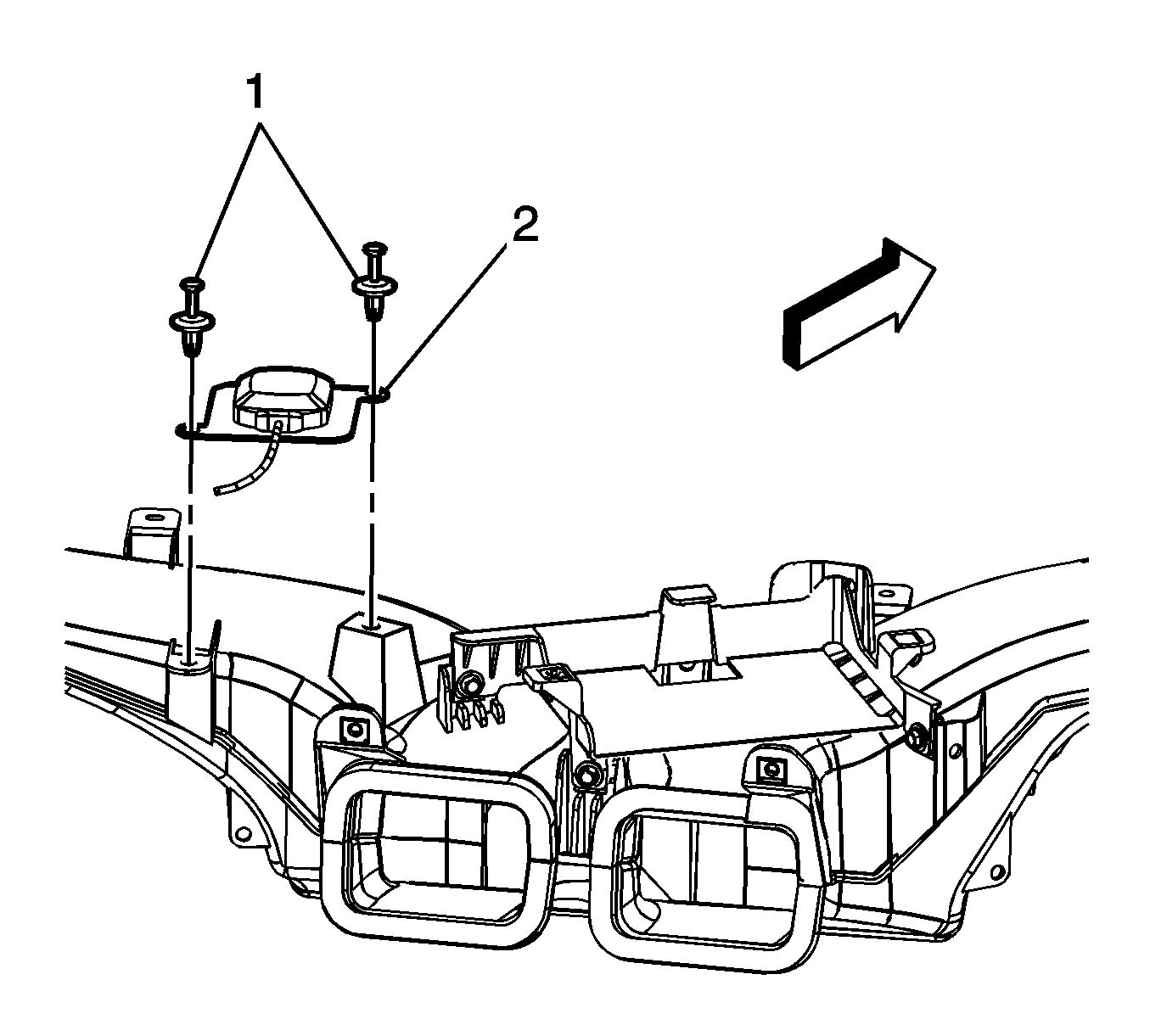

    2. Fig 1: Removing/Installing GPS Antenna
    GM1509428Courtesy of GENERAL MOTORS COMPANY
  2. Remove the 2 plastic rivet retainers (1) which secure the global positioning system (GPS) antenna to the HVAC duct.
  3. Remove the GPS antenna (2) from the vehicle.
