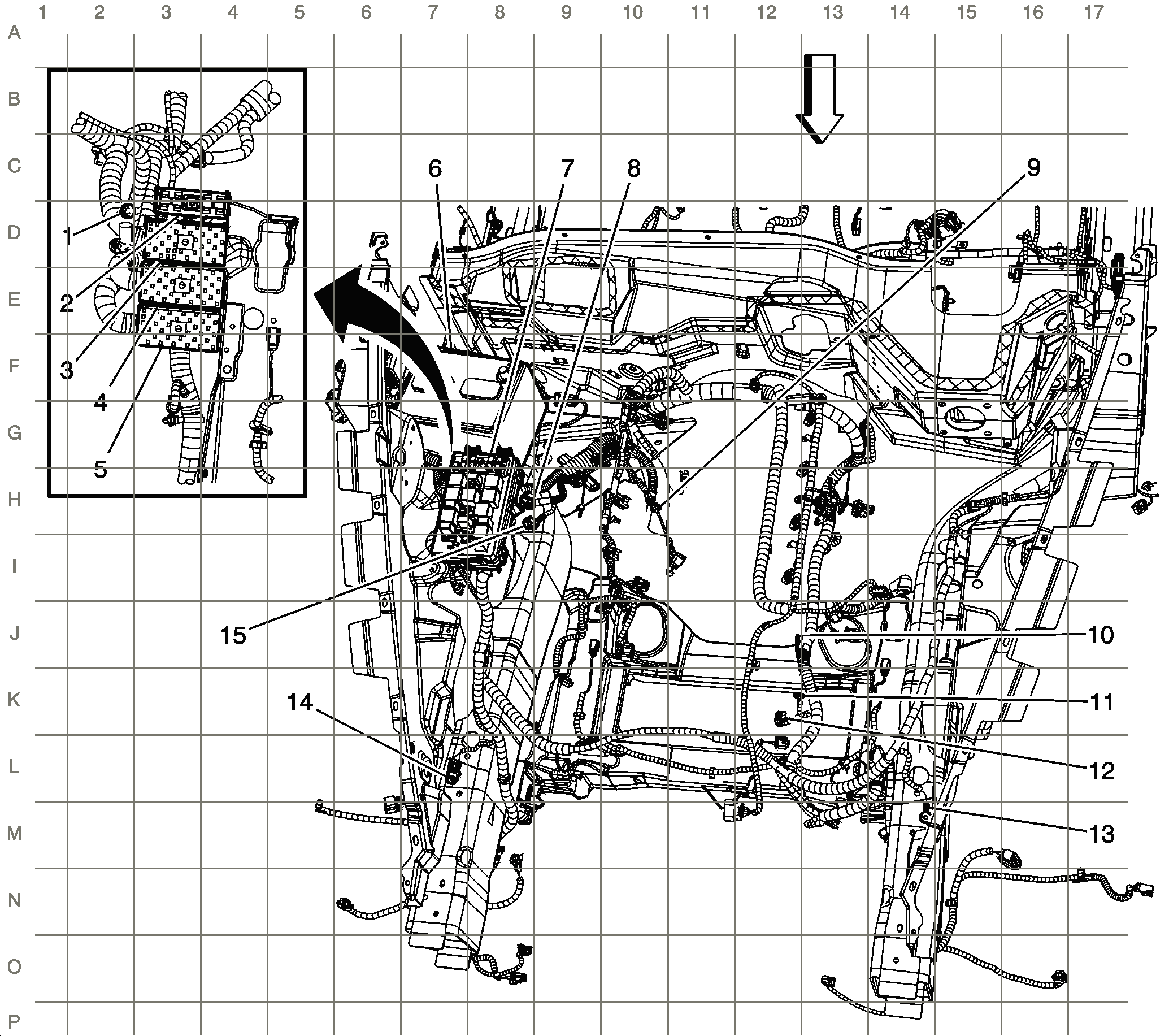

Engine Compartment- Fuse Block- Underhood
Engine Compartment- Fuse Block- Underhood
| Component Name | Callout |
|---|---|
| Fuse Block- Underhood X5 | 1 |
| Fuse Block- Underhood X4 | 2 |
| Fuse Block- Underhood X3 | 3 |
| Fuse Block- Underhood X2 | 4 |
| Fuse Block- Underhood X1 | 5 |
| Battery (LS3 without Z52) | 6 |
| Fuse Block- Underhood | 7 |
| G104 | 8 |
| G106 (Engine Block) | 9 |
| G107 (Engine Block) | 10 |
| G105 (Engine Block) | 11 |
| X103 | 12 |
| G101 | 13 |
| G102 | 14 |
| G103 | 15 |
