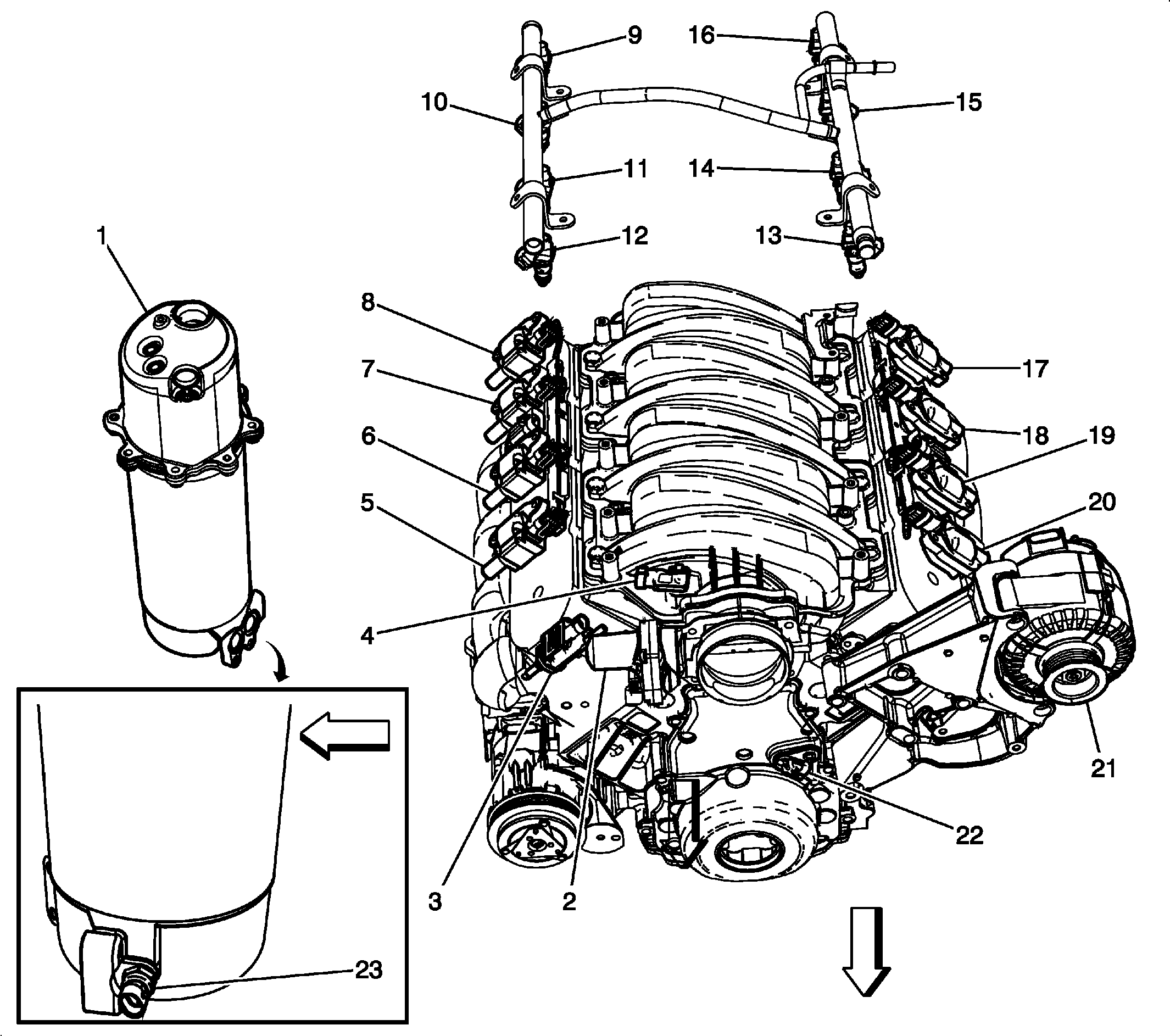

Top of Engine Components (LS7)
Top of Engine Components (LS7)
| Component Name | Callout |
|---|---|
| Engine Oil Tank | 1 |
| Throttle Body | 2 |
| Evaporative Emission (EVAP) Canister Purge Solenoid Valve | 3 |
| Manifold Absolute Pressure (MAP) Sensor | 4 |
| Ignition Coil 2 | 5 |
| Ignition Coil 4 | 6 |
| Ignition Coil 6 | 7 |
| Ignition Coil 8 | 8 |
| Fuel Injector 8 | 9 |
| Fuel Injector 6 | 10 |
| Fuel Injector 4 | 11 |
| Fuel Injector 2 | 12 |
| Fuel Injector 1 | 13 |
| Fuel Injector 3 | 14 |
| Fuel Injector 5 | 15 |
| Fuel Injector 7 | 16 |
| Ignition Coil 7 | 17 |
| Ignition Coil 5 | 18 |
| Ignition Coil 3 | 19 |
| Ignition Coil 1 | 20 |
| Generator | 21 |
| Camshaft Position (CMP) Sensor (LS3 and LS7) | 22 |
| Engine Oil Level and Temperature Sensor (LS3) | 23 |
