Air Cleaner Element Replacement (6.2L LS9 - With Supercharger)

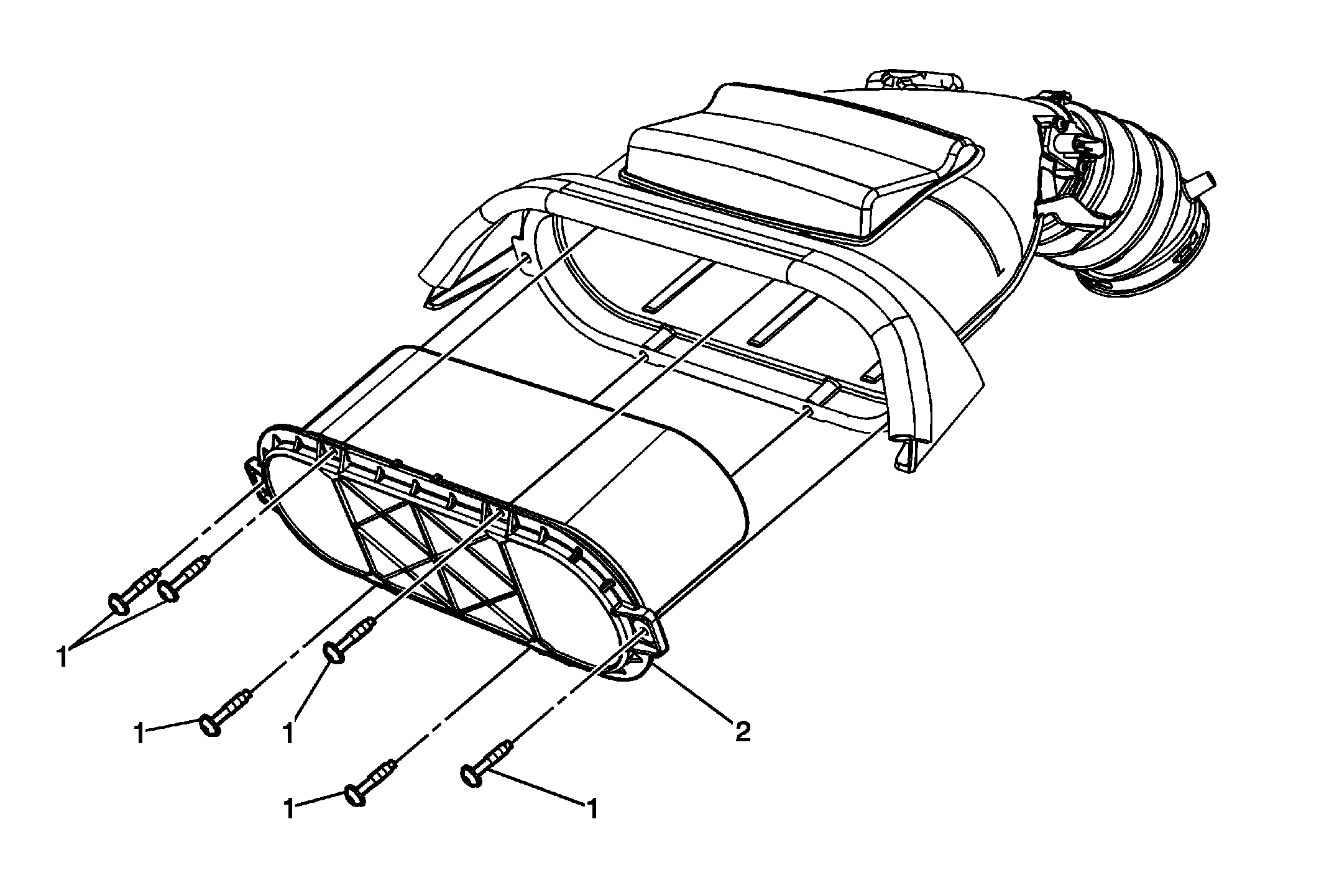

Fig 1: View Of Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Element Replacement (6.2L LS9 - With Supercharger)

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (6.2L LS9 - With Supercharger) .
1	Fastener CAUTION: Refer to Fastener Caution . Tighten  Fully driven, seated and not striped
2	Air Cleaner Element
