Lighting References (2 of 2)Wiring Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Lighting References (2 of 2)Wiring Schematics

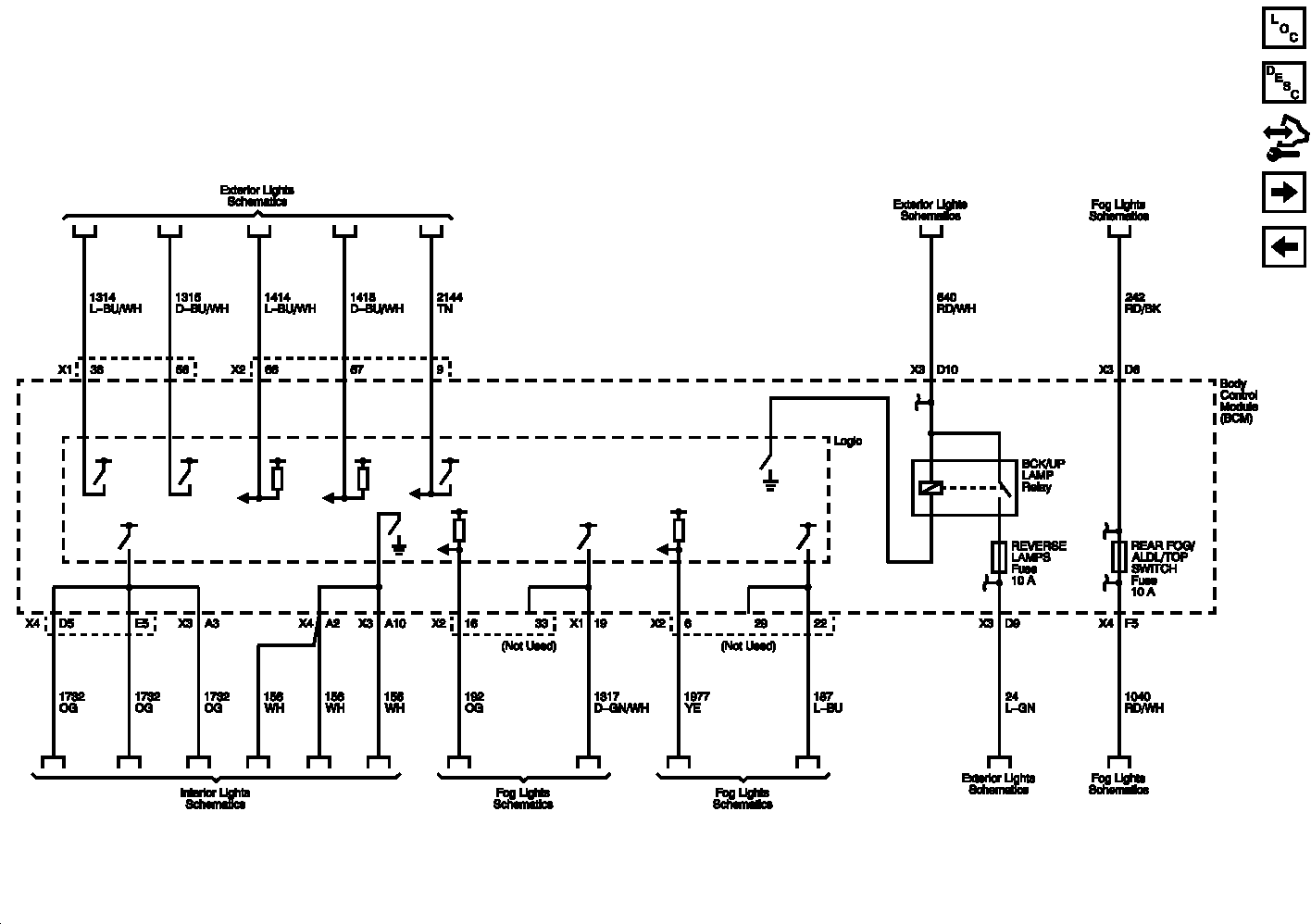

Fig 1: Lighting References (2 of 2)Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
