Power, Ground, and Class 2 Wiring Schematics

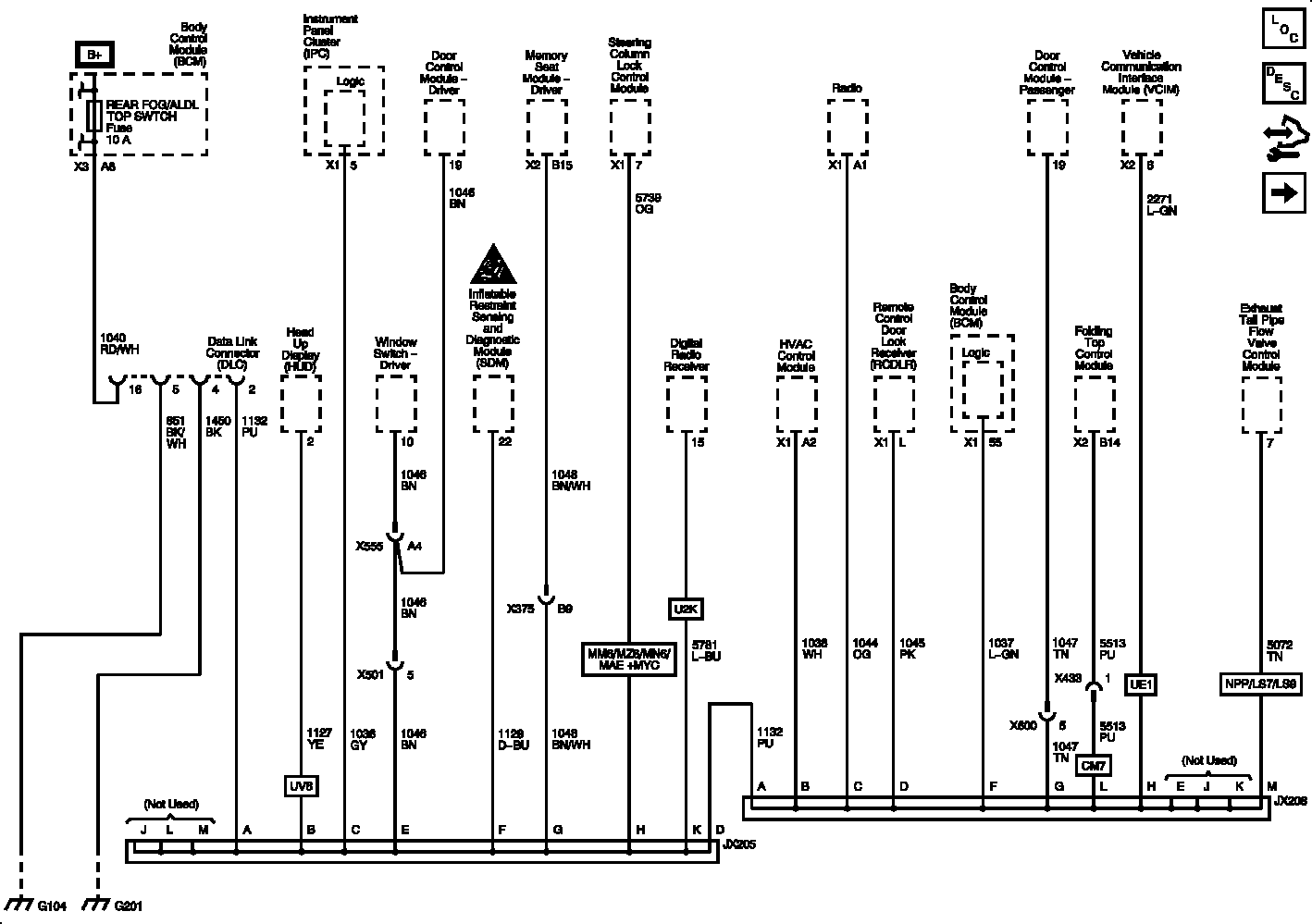

Fig 1: Power, Ground, and Class 2 Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
