Antennas and Antenna Modules
Antennas and Antenna Modules

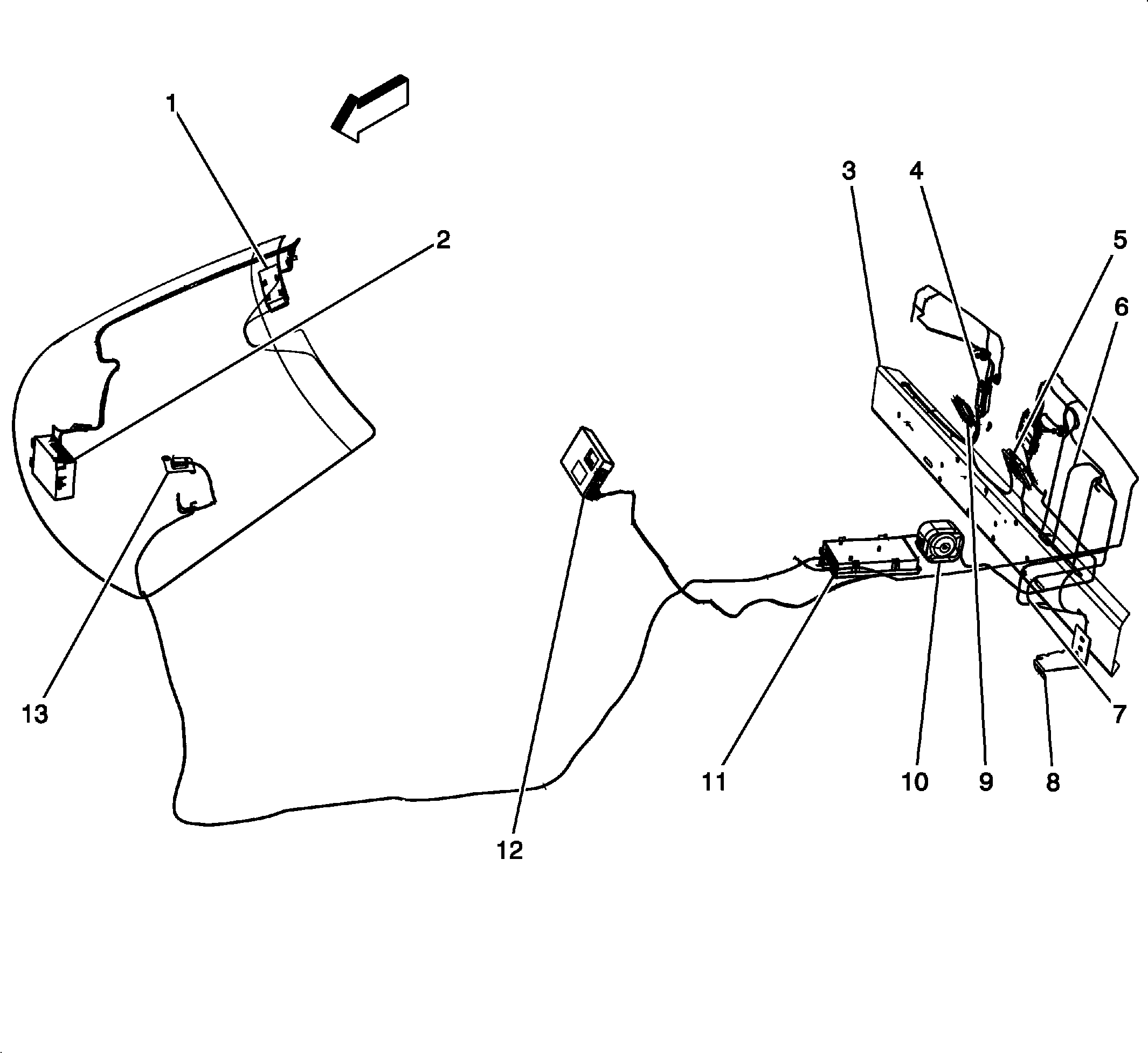

| Component Name | Callout |
|---|---|
| Cellular and Navigation Antenna (UE1) | 1 |
| Vehicle Communication Interface Module (VCIM) (UE1) | 2 |
| Radio Antenna Module- Case Ground | 3 |
| Radio Antenna Module- Right (C05 or CM7) | 4 |
| Radio Antenna Module- Left (except C05 or CM7) | 5 |
| Antenna (C05 or CM7) | 6 |
| Antenna (except C05 or CM7) | 7 |
| Antenna Ground | 8 |
| Radio Antenna Module- Right (except C05 or CM7) | 9 |
| Theft Deterrent Alarm Siren (UA2) | 10 |
| Digital Radio Receiver (except C05 or CM7 with U2K) / Traffic Information Receiver (except C05 or CM7 with U3Z) | 11 |
| Digital Radio Receiver (C05 or CM7 with U2K) / Traffic Information Receiver (C05 or CM7 with U3Z) | 12 |
| Navigation Antenna (U3U or U3Z) | 13 |
