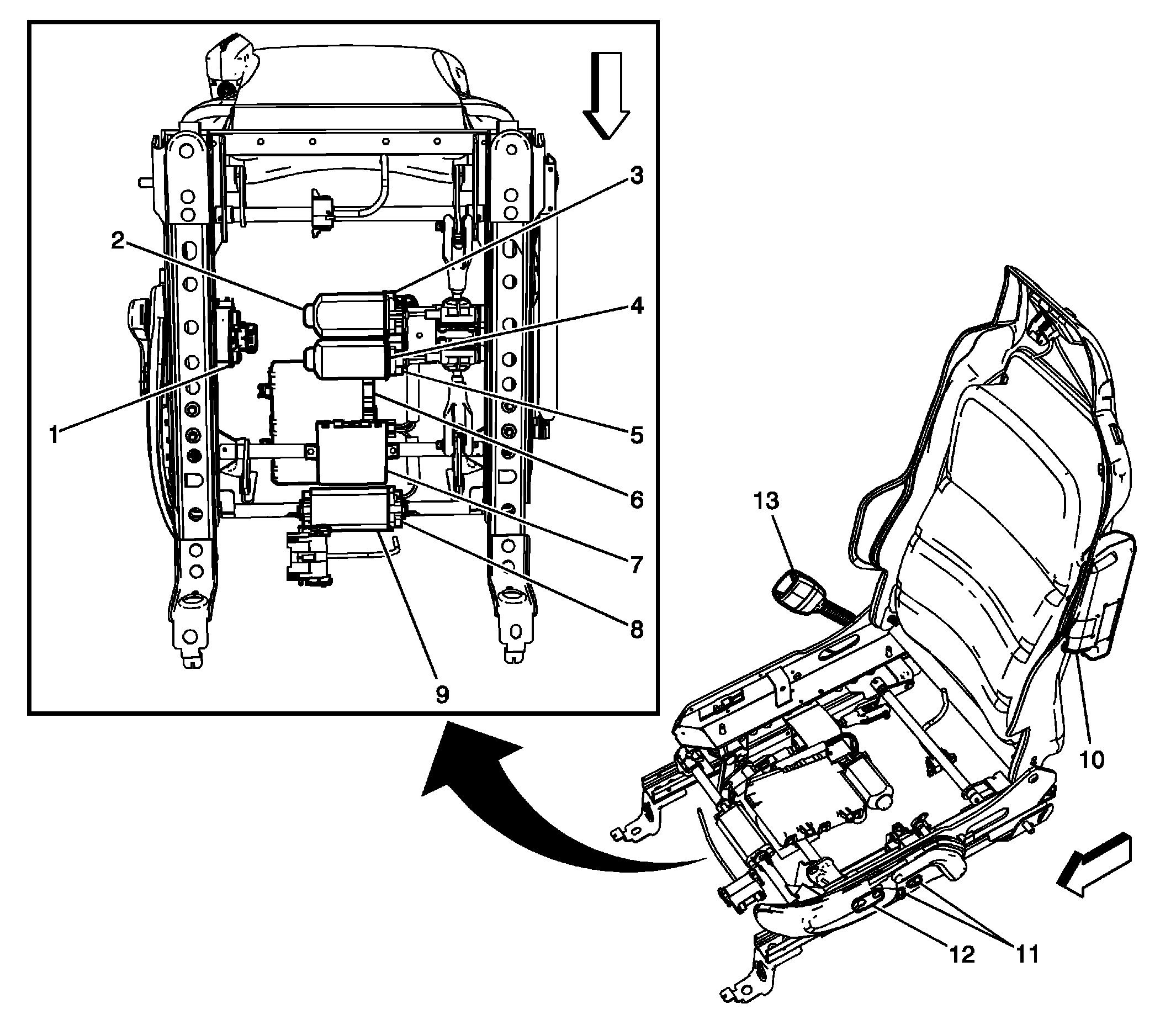

Driver Seat Components
Driver Seat Components
| Component Name | Callout |
|---|---|
| Inflatable Restraint Seat Position Sensor - Driver | 1 |
| Seat Rear Vertical Motor - Driver | 2 |
| Seat Rear Vertical Motor Position Sensor - Driver (AAB) | 3 |
| Seat Front Vertical Motor - Driver (AAB) | 4 |
| Seat Front Vertical Motor Position Sensor - Driver (AAB) | 5 |
| Memory Seat Module - Driver (AAB) | 6 |
| Heated Seat Control Module - Driver (KA1) | 7 |
| Seat Horizontal Motor Position Sensor - Driver (AAB) | 8 |
| Seat Horizontal Motor - Driver | 9 |
| Inflatable Restraint Side Impact Module - Left | 10 |
| Seat Lumbar Adjuster Switch - Driver | 11 |
| Seat Adjuster Switch - Driver | 12 |
| Seat Belt Pretensioner - Driver | 13 |
