Entertainment Components
Entertainment Components

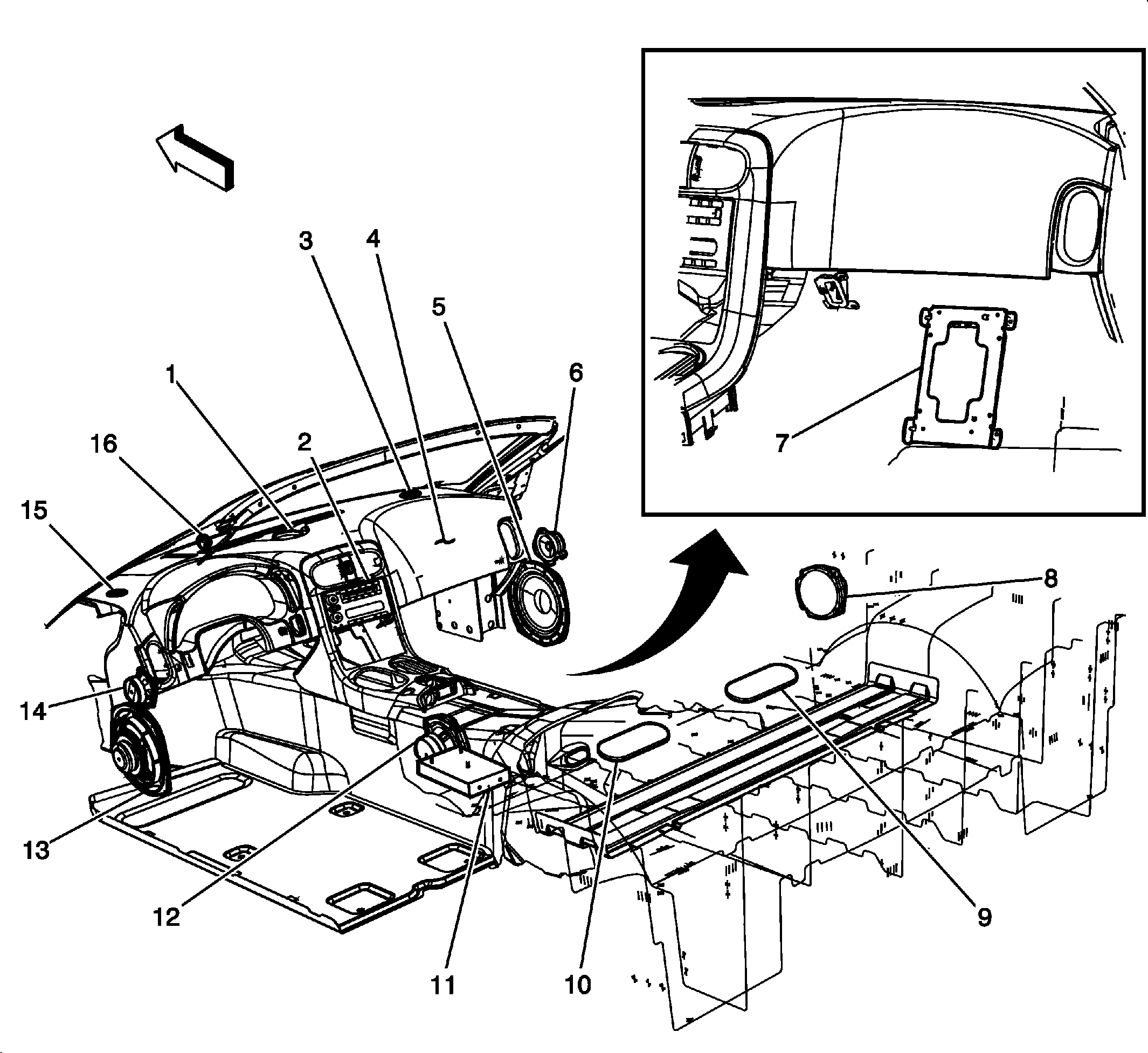

| Component Name | Callout |
|---|---|
| Speaker- Center I/P | 1 |
| Radio | 2 |
| Speaker - Right Tweeter (U65) | 3 |
| Vehicle Communication Interface Module (VCIM) (UE1) | 4 |
| Speaker - Right Subwoofer | 5 |
| Speaker - Right Front | 6 |
| Audio Amplifier | 7 |
| Speaker - Right Rear (without C05/CM7) | 8 |
| Speaker - Right Rear (C05/CM7) | 9 |
| Speaker - Left Rear (C05/CM7) | 10 |
| Digital Radio Receiver (except C05/CM7 with U2K) | 11 |
| Speaker - Left Rear (without C05/CM7) | 12 |
| Speaker - Left Subwoofer | 13 |
| Speaker - Left Front | 14 |
| Speaker - Left Tweeter (U65) | 15 |
| Cellular Telephone Microphone (UE1)/Voice Recognition Microphone (without UE1) | 16 |
