Instrument Panel and Headliner Components (UA2)
Instrument Panel and Headliner Components (UA2)
Component Name
Callout
Intrusion Sensor Defeat Switch
1
Intrusion Sensor
2
Windshield
3

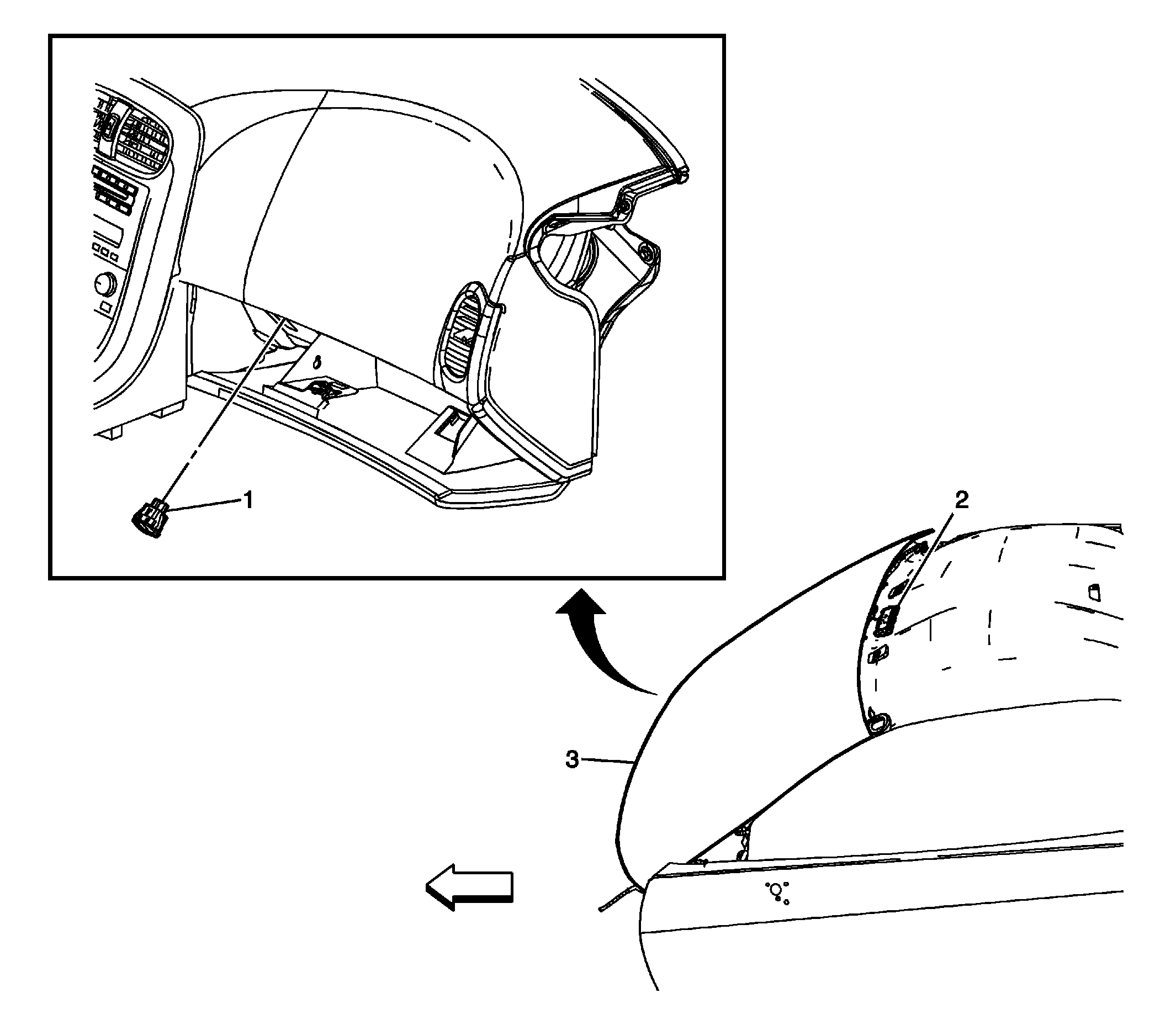

Fig 1: Instrument Panel and Headliner Components (UA2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
