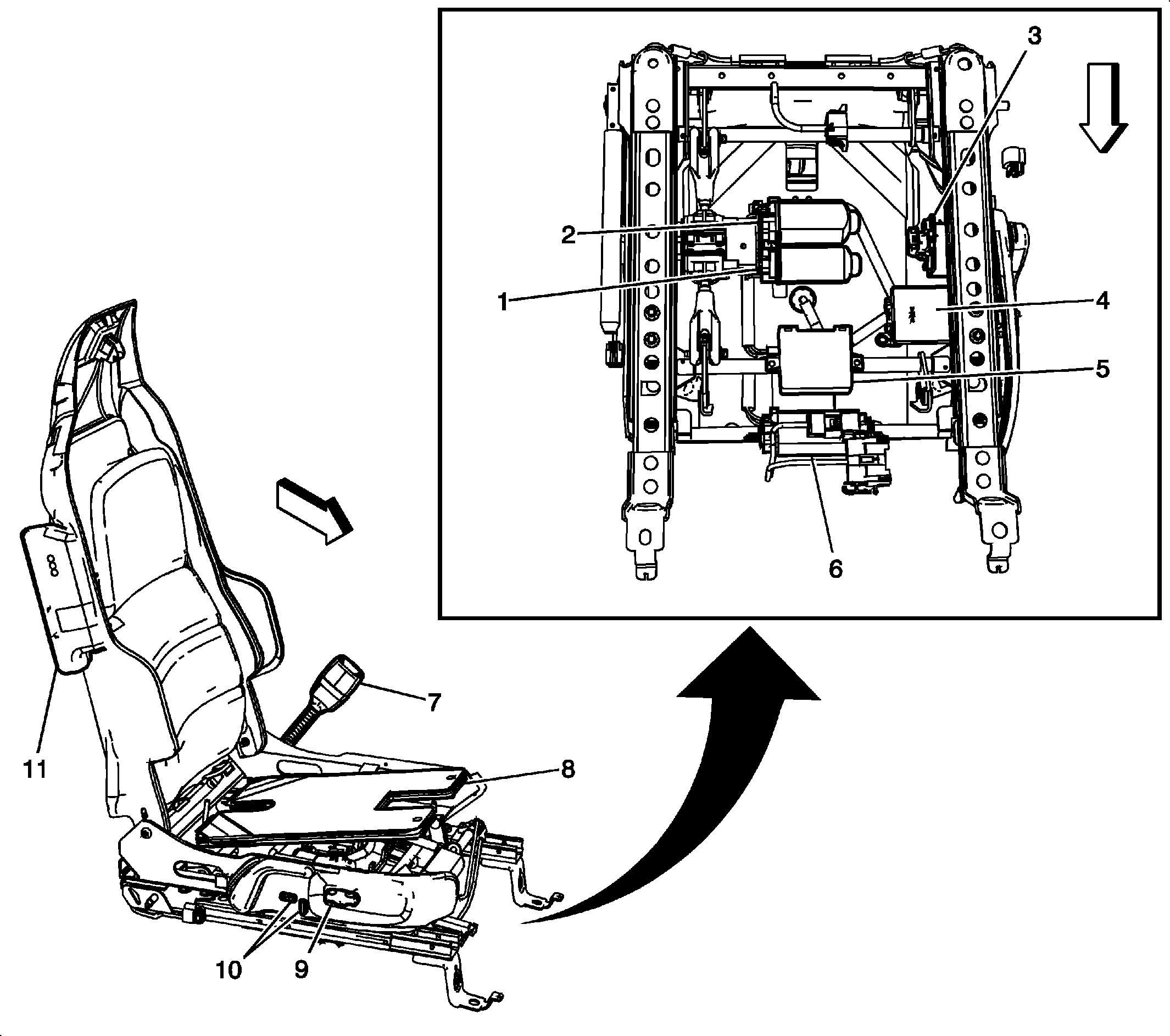

Passenger Seat Components
Passenger Seat Components
| Component Name | Callout |
|---|---|
| Seat Front Vertical Motor - Passenger (AG2) | 1 |
| Seat Rear Vertical Motor - Passenger (AG2) | 2 |
| Inflatable Restraint Seat Position Sensor - Passenger | 3 |
| Inflatable Restraint Front Passenger Presence System (PPS) Module | 4 |
| Heated Seat Control Module - Passenger (KA1) | 5 |
| Seat Horizontal Motor - Passenger (AG2) | 6 |
| Seat Belt Pretensioner - Passenger | 7 |
| Heated Seat Element - Passenger Cushion | 8 |
| Seat Adjuster Switch - Passenger | 9 |
| Seat Lumbar Switch - Passenger | 10 |
| Inflatable Restraint Side Impact Module - Right | 11 |
