Air Cleaner Assembly Replacement (6.2L LS9 - With Supercharger)

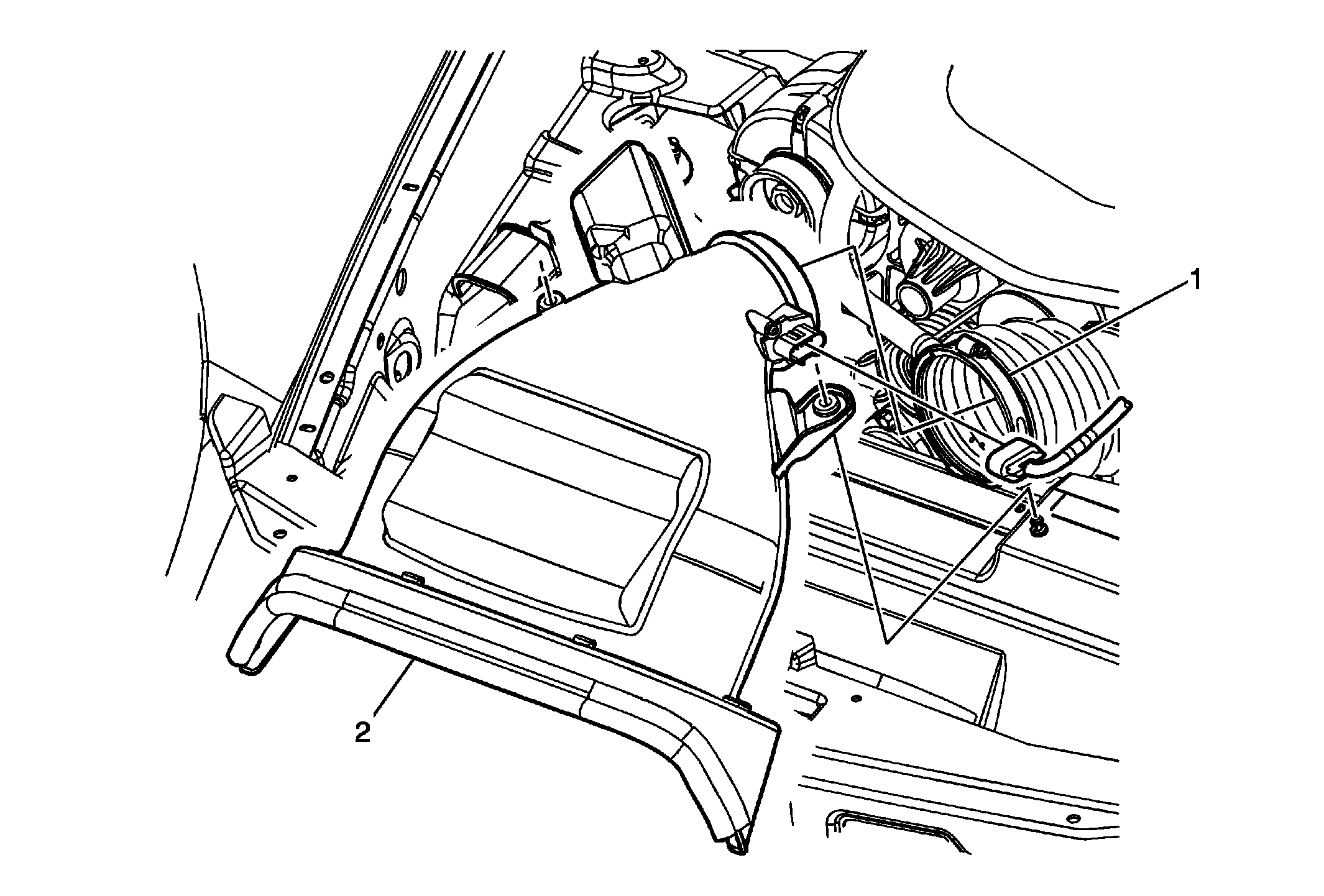

Fig 1: View Of Air Cleaner Assembly (6.2L LS9 - With Supercharger)
GM2157352Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement (6.2L LS9 - With Supercharger)

Callout Component Name
1 Clamp
2 Air Cleaner Housing

Procedure

  1. Disconnect the mass air flow harness connector.
  2. Disconnect the air cleaner output duct from the air cleaner housing.
  3. Disconnect the air cleaner housing from the air cleaner retainers on the radiator core support.
