Top of Engine Components




Powertrain Component Views

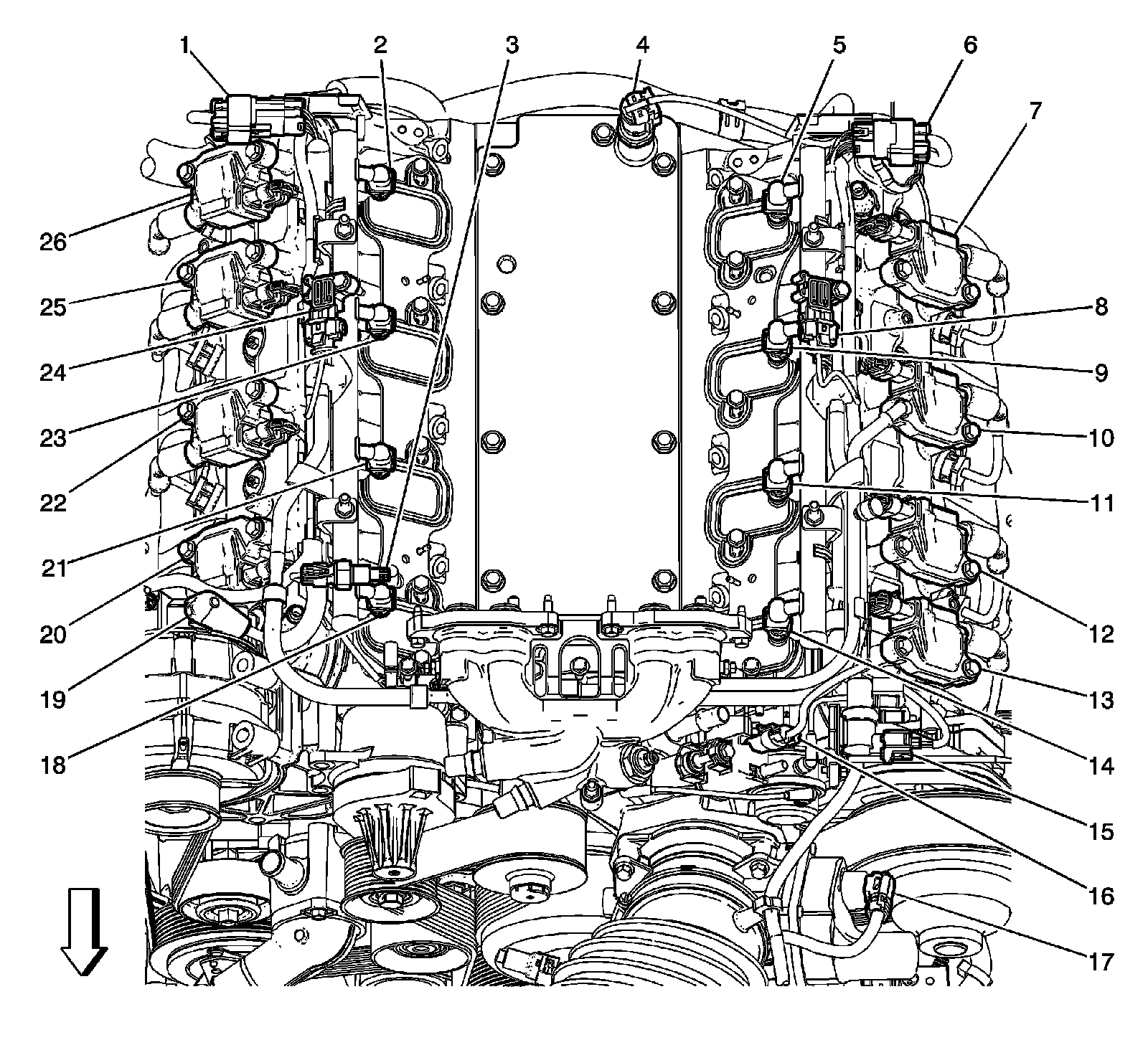

Top of Engine Components (LS9)





1 - X149

2 - Fuel Injector 8

3 - Intake Air Temperature (IAT) Sensor 2

4 - Engine Oil Pressure (EOP) Sensor

5 - Fuel Injector 7

6 - X150

7 - Ignition Coil 7

8 - Manifold Absolute Pressure (MAP) Sensor

9 - Fuel Injector 5

10 - Ignition Coil 5

11 - Fuel Injector 3

12 - Ignition Coil 3

13 - Ignition Coil 1

14 - Fuel Injector 1

15 - Supercharger Bypass Valve Solenoid (JL9)

16 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

17 - Throttle Body

18 - Fuel Injector 2

19 - Generator X2

20 - Ignition Coil 2

21 - Fuel Injector 4

22 - Ignition Coil 4

23 - Fuel Injector 6

24 - Barometric Pressure (BARO) Sensor

25 - Ignition Coil 6

26 - Ignition Coil 8
