Memory Seat Module - Driver X1 (AAB)
Component Connector End Views

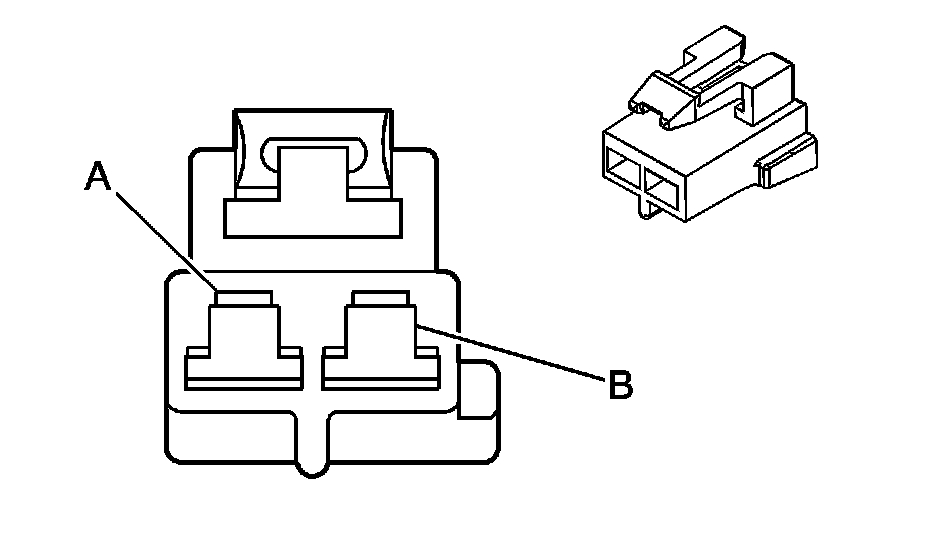

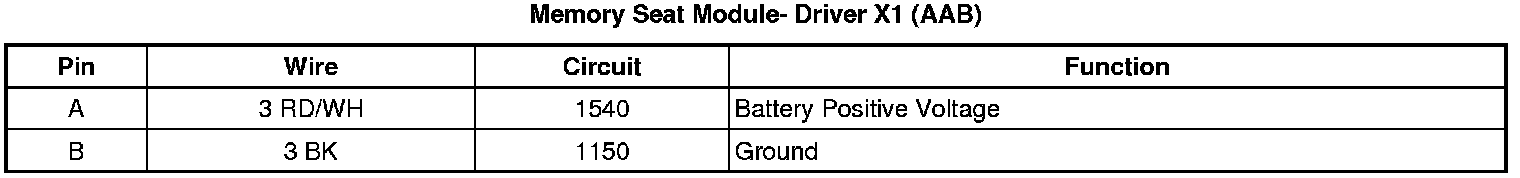

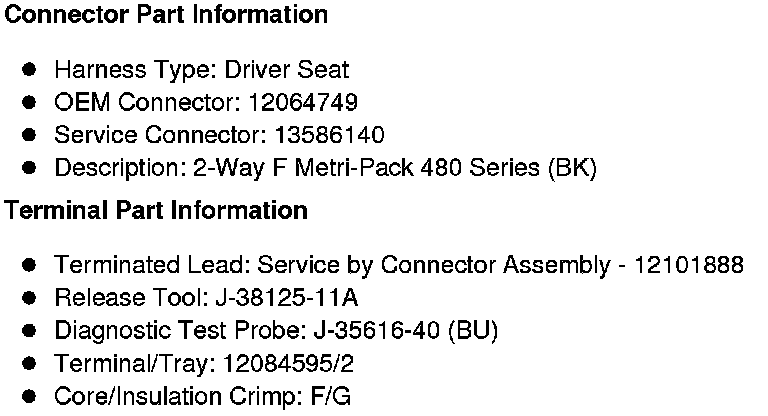

Memory Seat Module- Driver X1 (AAB)
